Customize Parameters








DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect an intelligent tester or Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester ON.
(d) Enter the following menus:
(1) Intelligent tester -select: CUSTOMIZE.
(2) Techstream - select: Customize Setting.

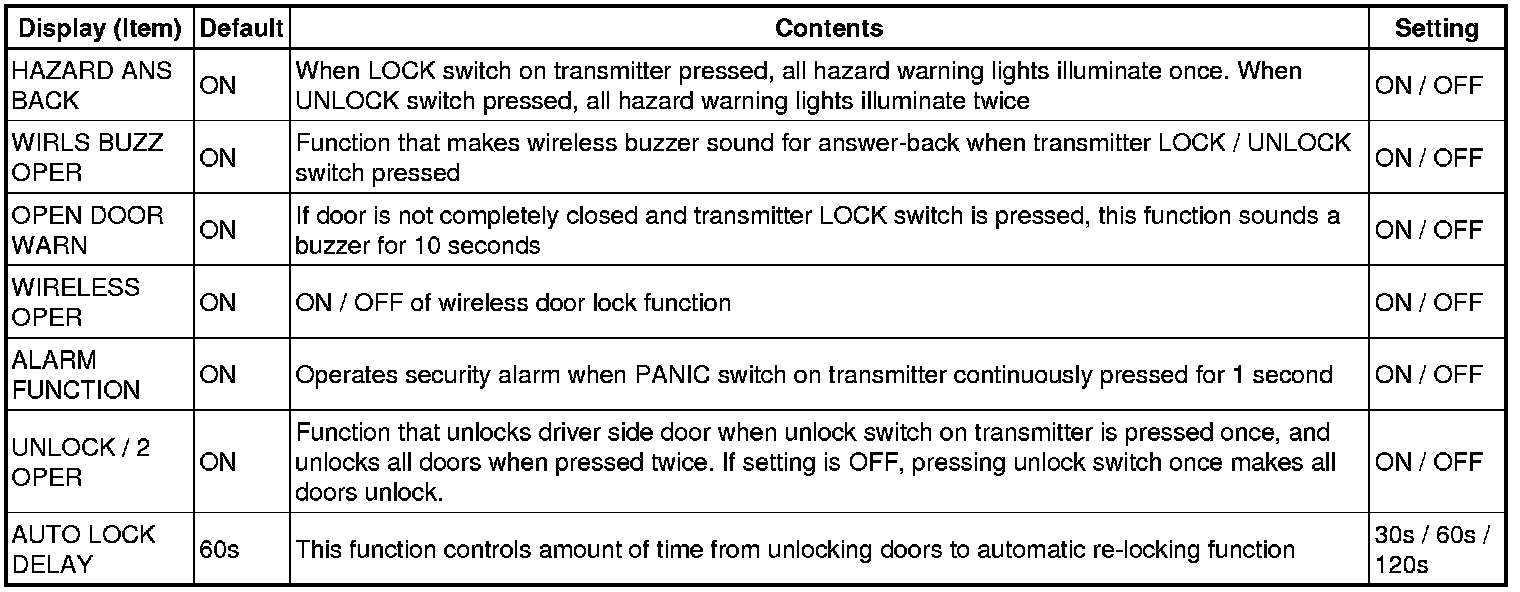

(e) Select the setting by referring to the table below.
(1) Intelligent tester

MAIN BODY:





(2) Techstream

Main Body:
