Engine Room Main Wire

1A (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):



1B (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1C (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1D (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1E (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1F (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1G (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1H (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):



1I (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):

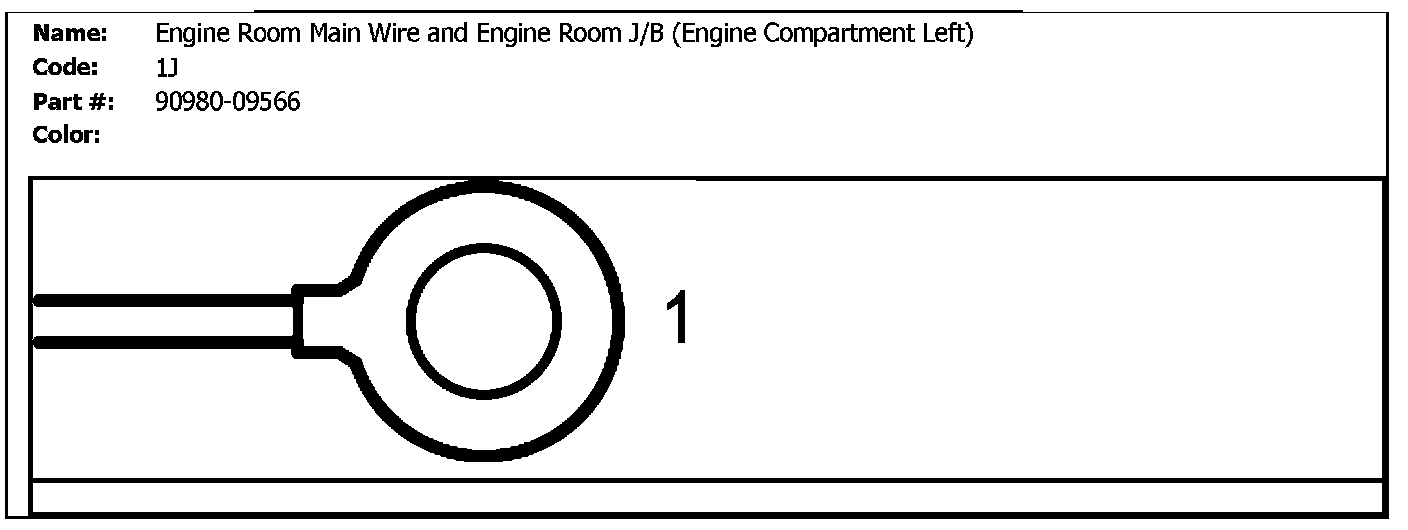

1J (Engine Room Main Wire And Engine Room J/B(Engine Compartment Left)):

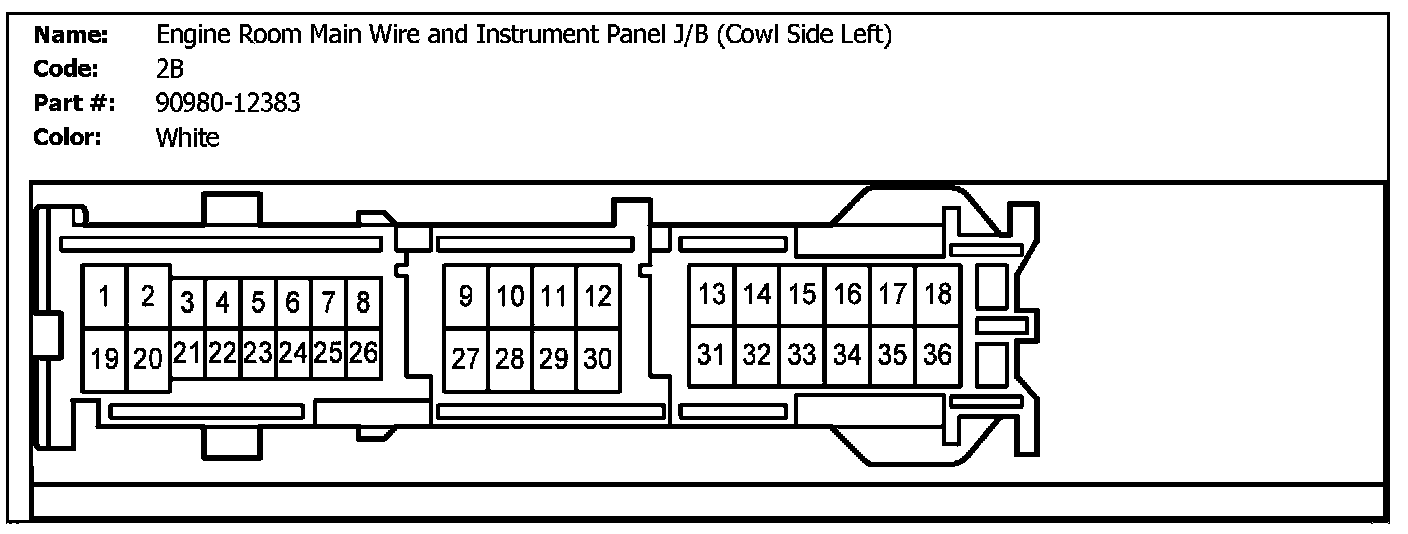

2B ( Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):



2G (Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):



2L (Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):

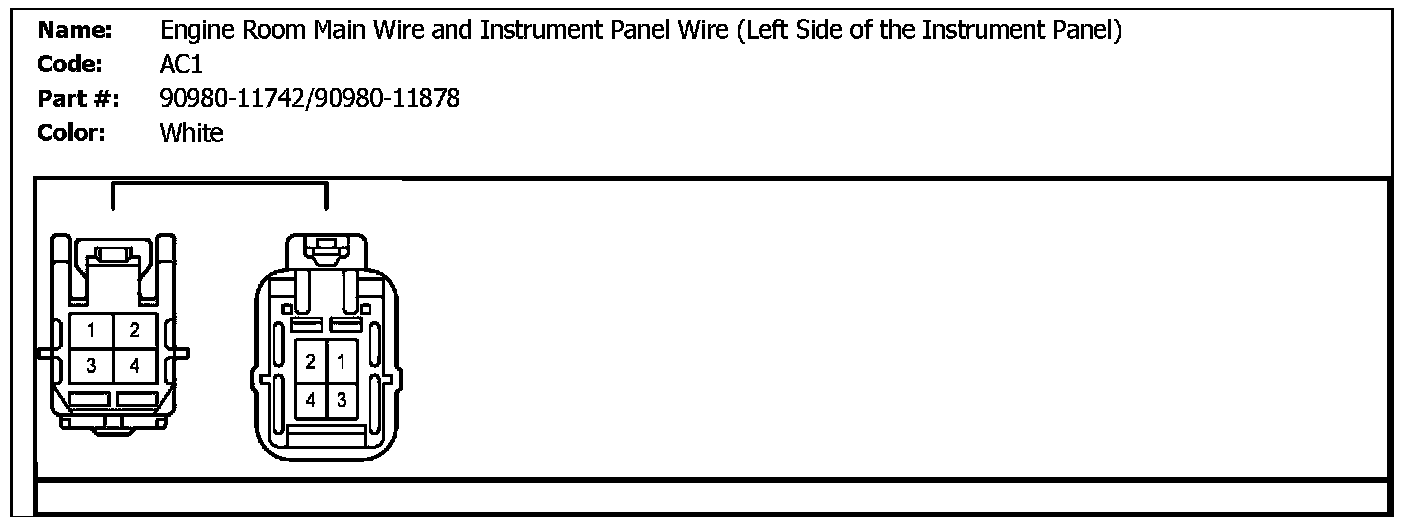

AC1 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):



AC2 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):



AC3 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):

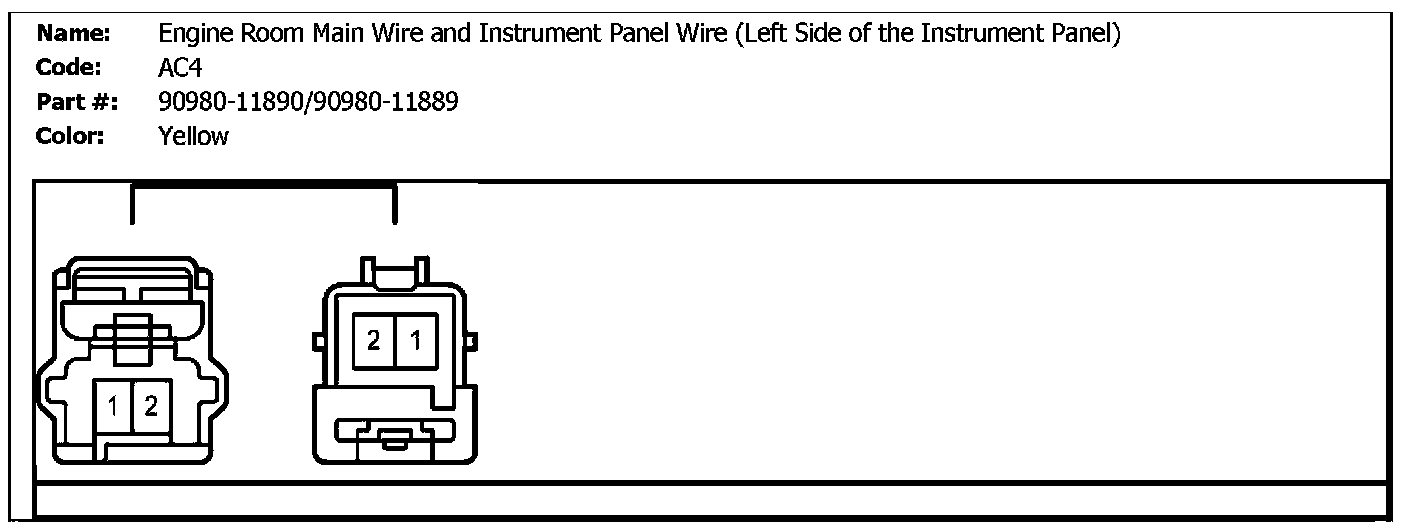

AC4 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):



AC5 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):



AC6 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel):

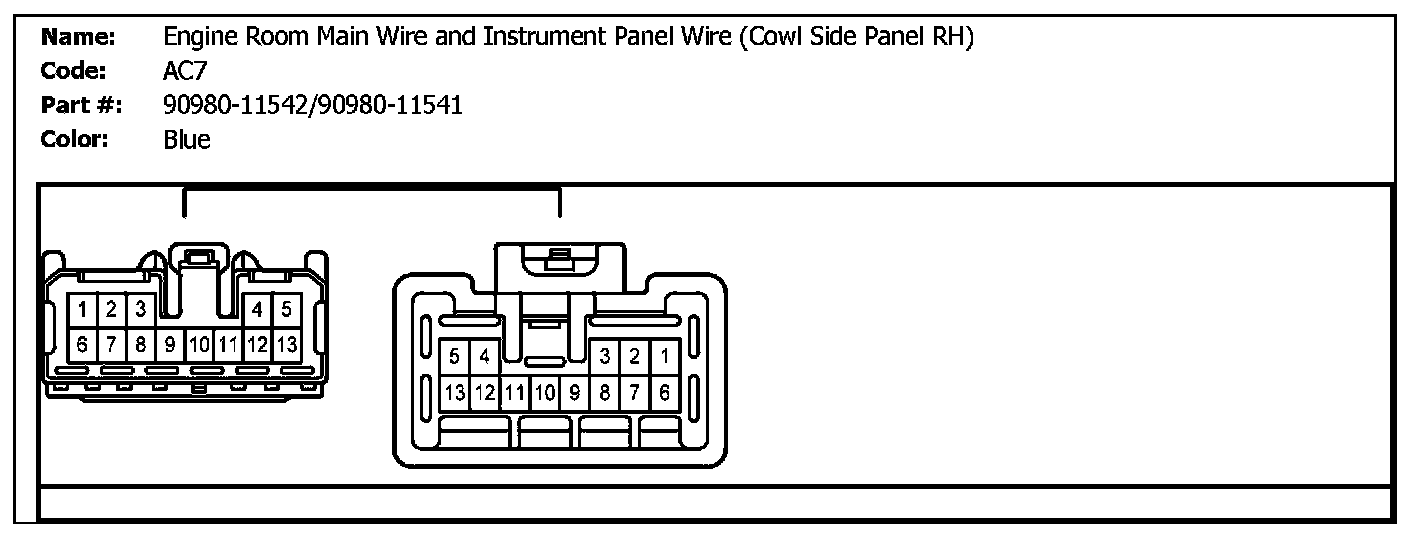

AC7 (Engine Room Main Wire and Instrument Panel Wire (Cowl Side Panel RH)):



AC8 (Engine Room Main Wire and Instrument Panel Wire (Cowl Side Panel RH)):



AH1 (Engine Room Main Wire And Floor Wire (Cowl Side Panel LH)):



AI1 (Engine Room Main Wire And Floor No.2 Wire (Cowl Side Panel RH):
