Keyless Entry

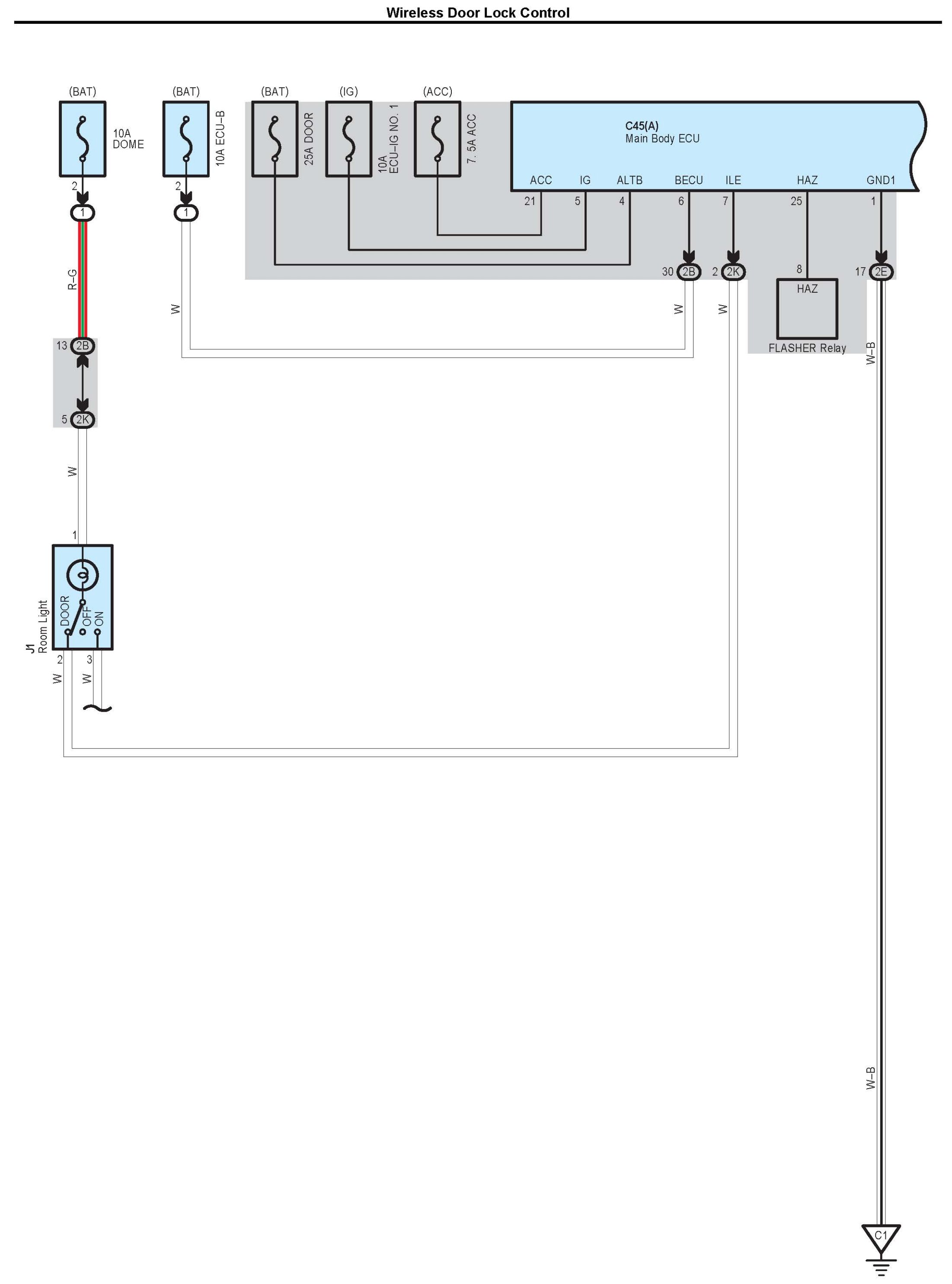

Wireless Door Lock Control Part 1:

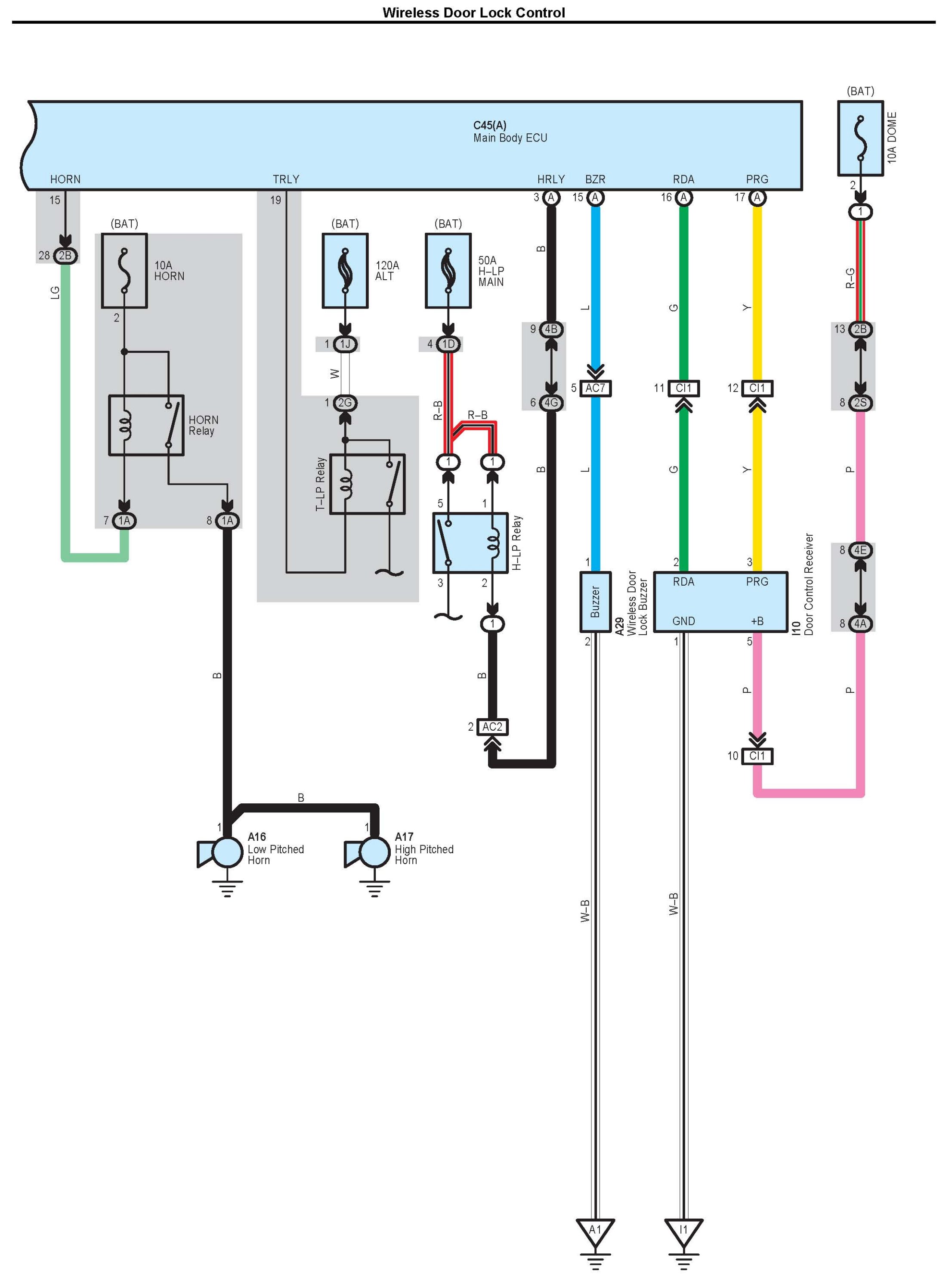

Wireless Door Lock Control Part 2:

Wireless Door Lock Control Part 3:

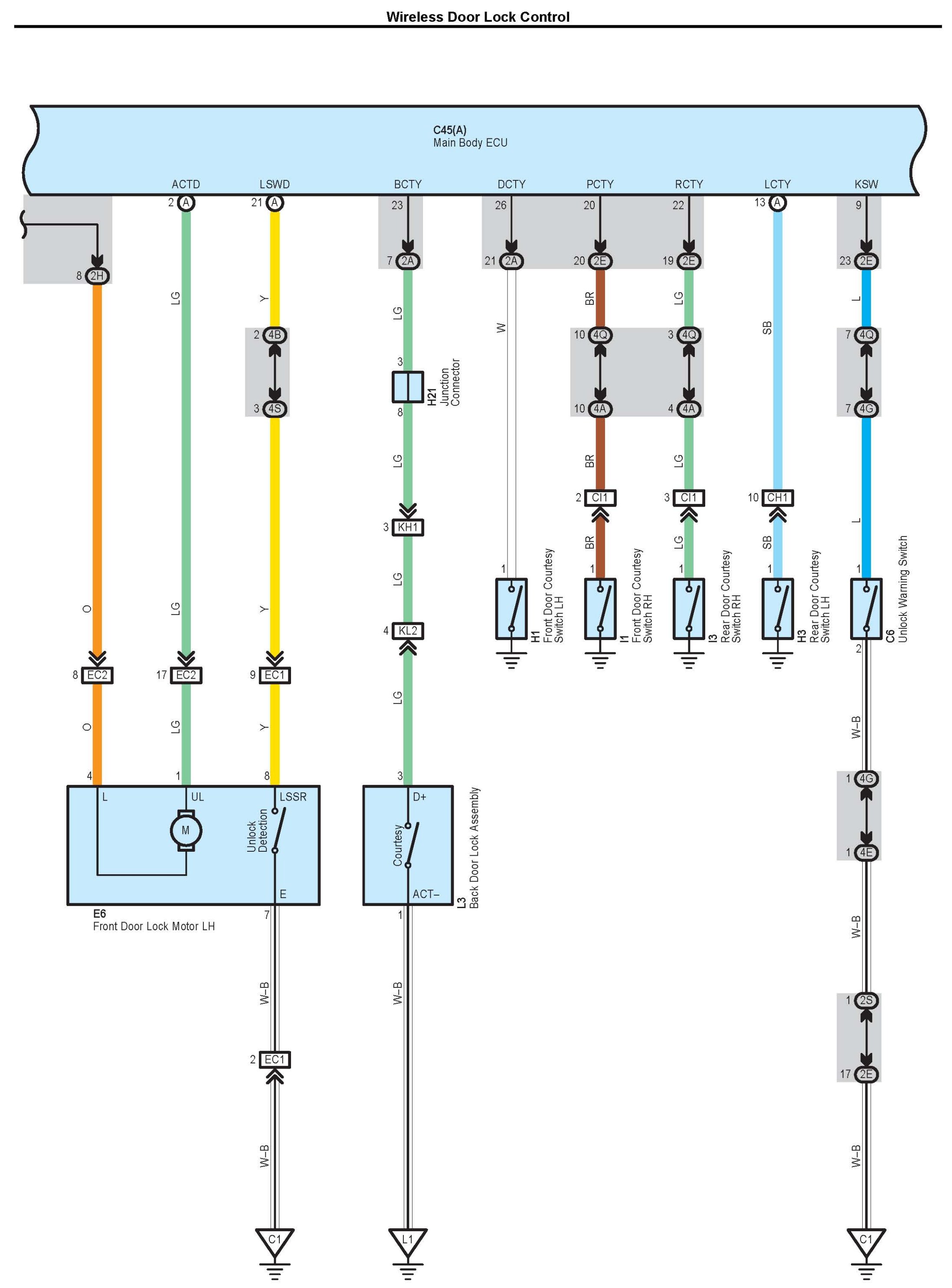

Wireless Door Lock Control Part 4:

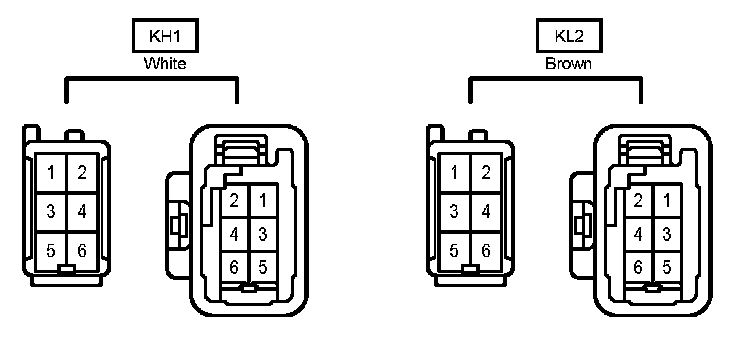

Connector Pin Outs Part 1:

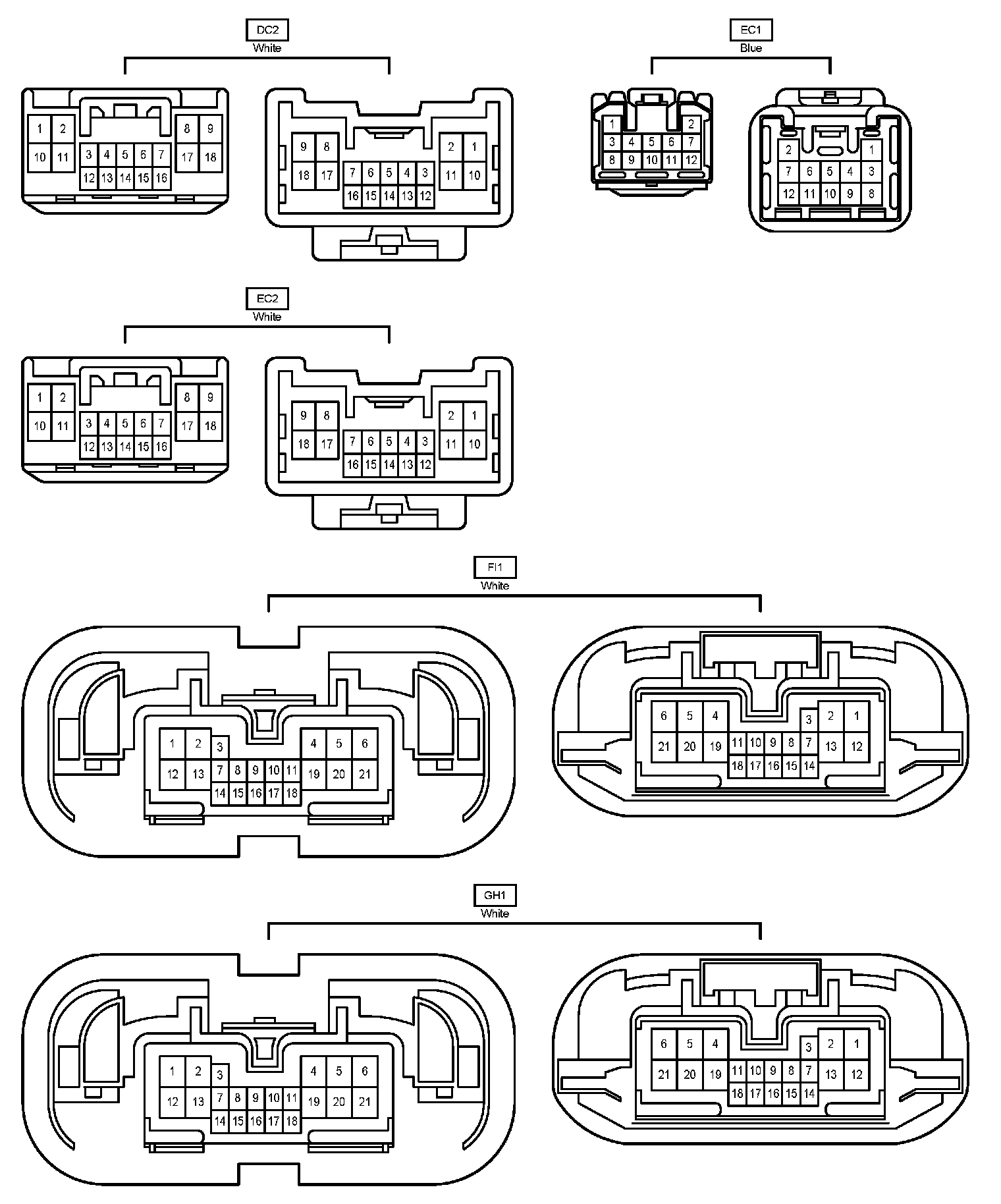

Connector Pin Outs Part 2:

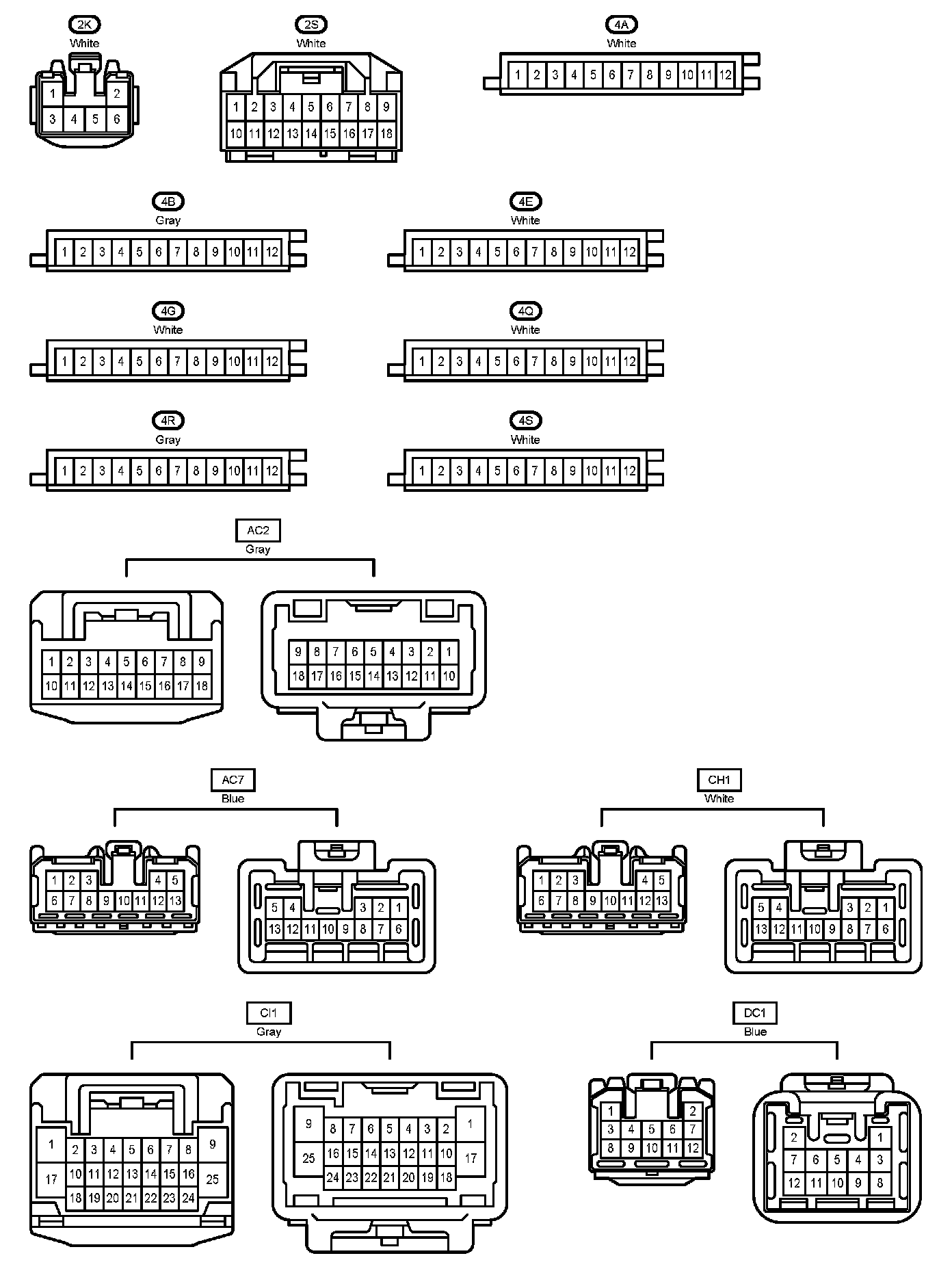

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
