Scan Tool Testing and Procedures
SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DATA LIST / ACTIVE TEST
HINT
By accessing the DATA LIST displayed on the Techstream, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one method to save labor time.
1. DATA LIST FOR OCCUPANT CLASSIFICATION ECU
(a) Turn the ignition switch to the LOCK position.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to the ON position and turn the Techstream ON.
(d) Enter the following menus: Body Electrical / Occupant Detection / Data List.
(e) Check the values by referring to the table below.

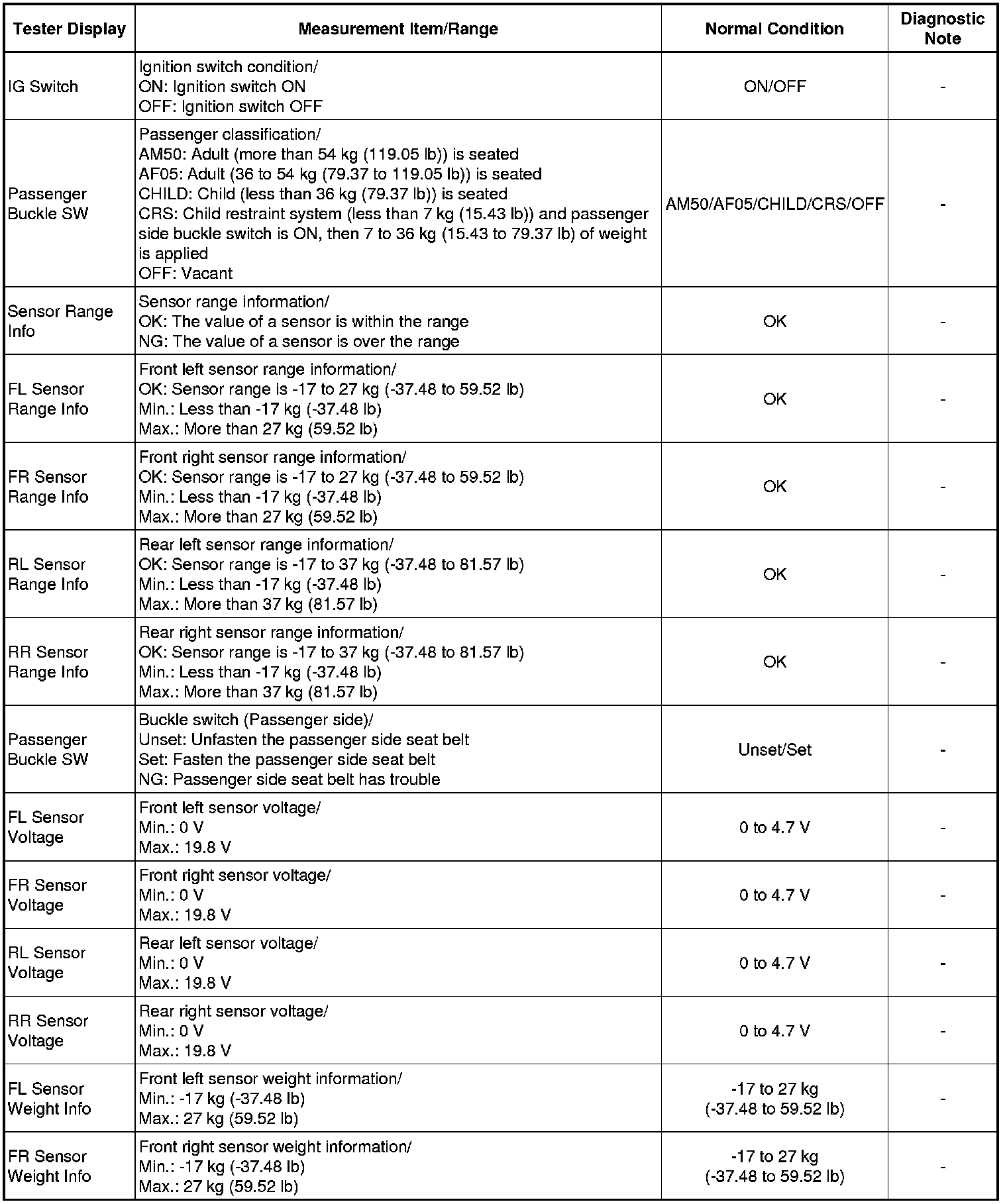

Data List Part 1:

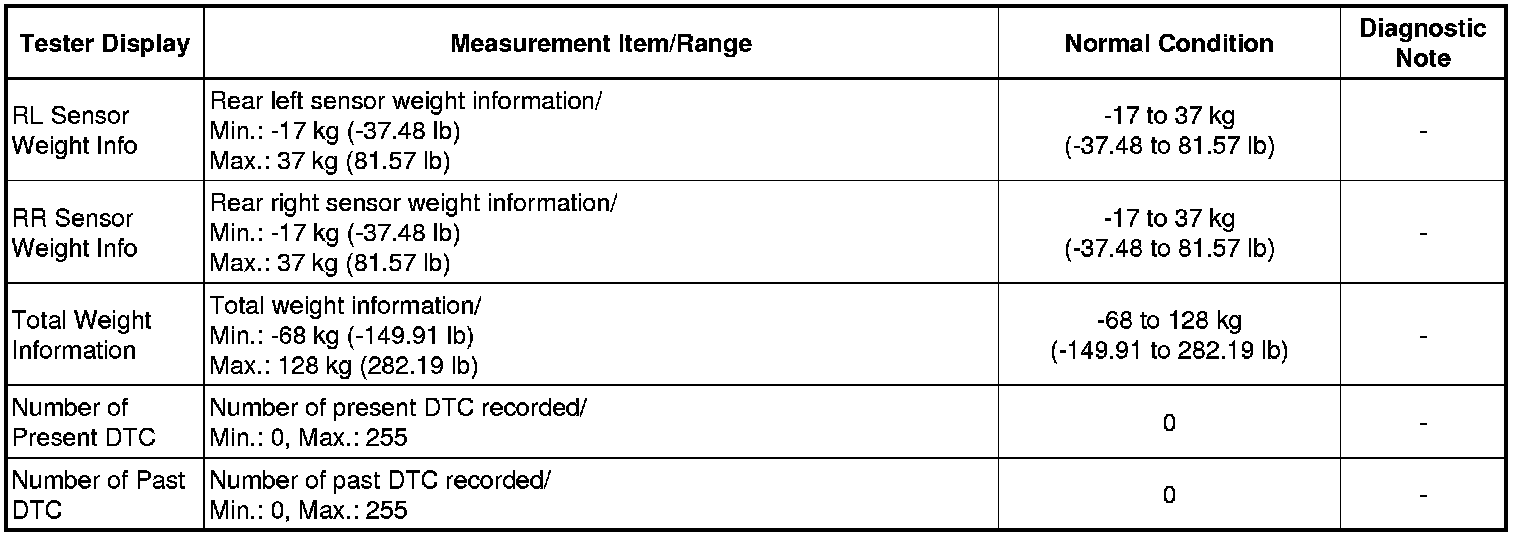

Data List Part 2:
