System Diagram

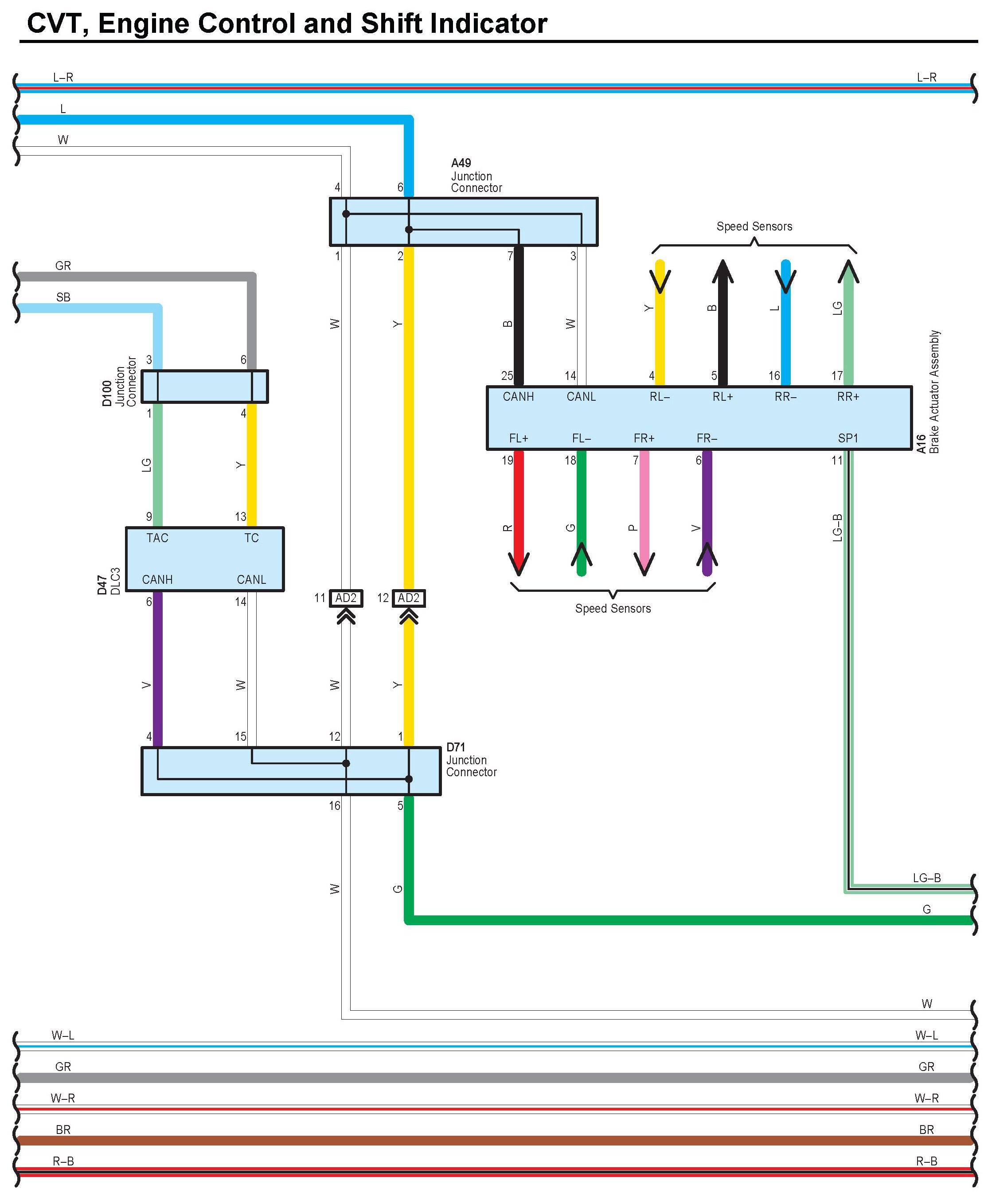

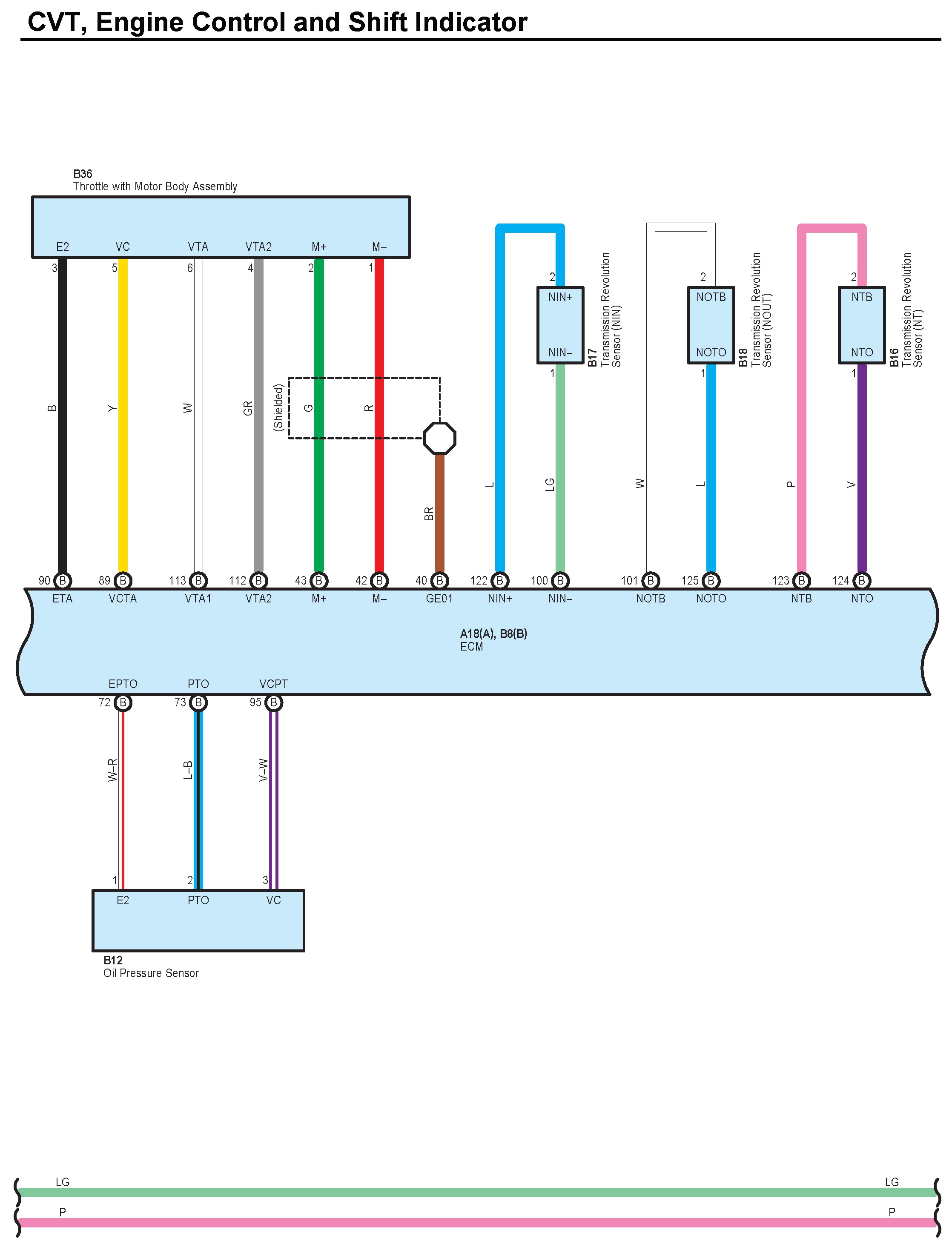

CVT, Engine Control and Shift Indicator Part 1:

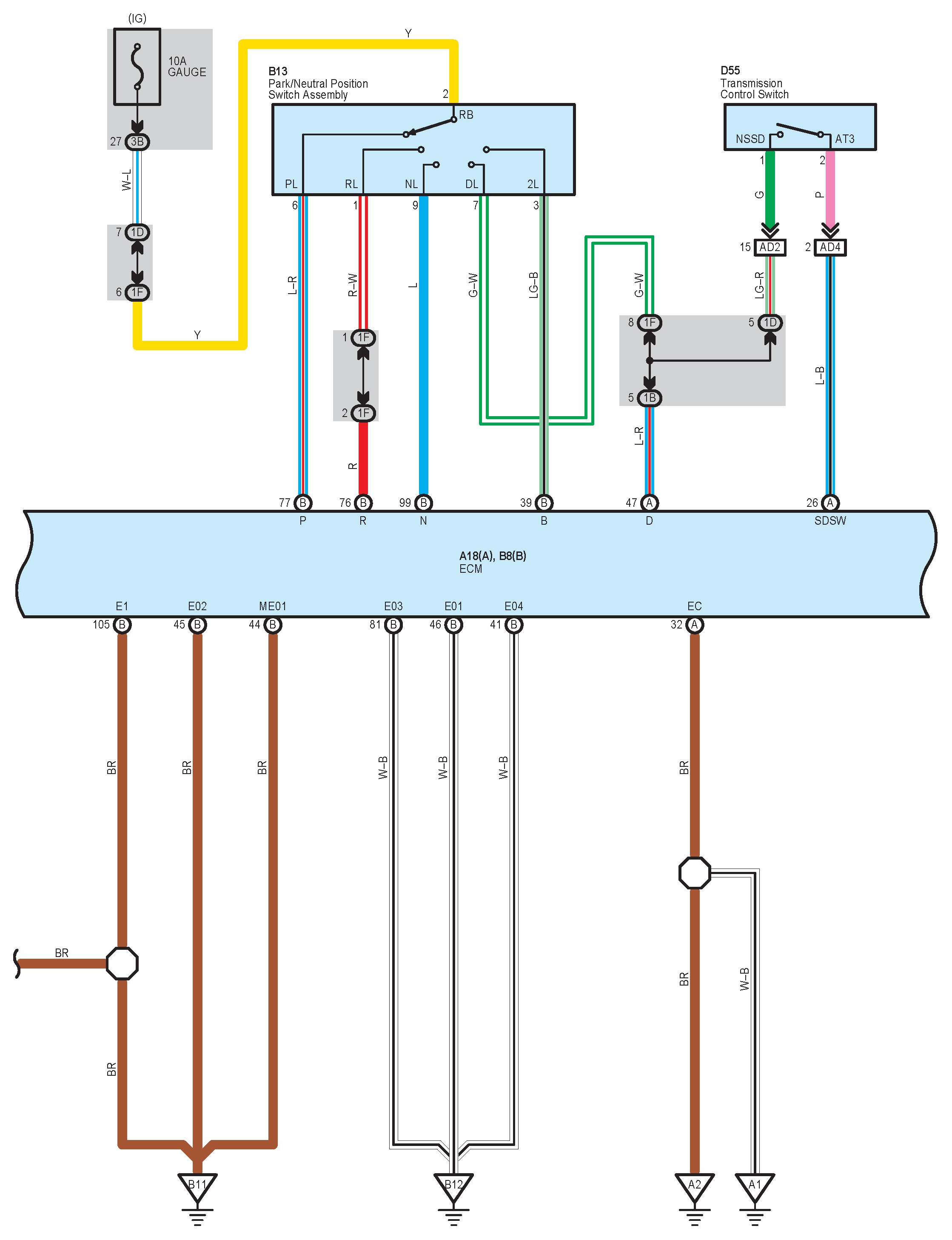

CVT, Engine Control and Shift Indicator Part 2:

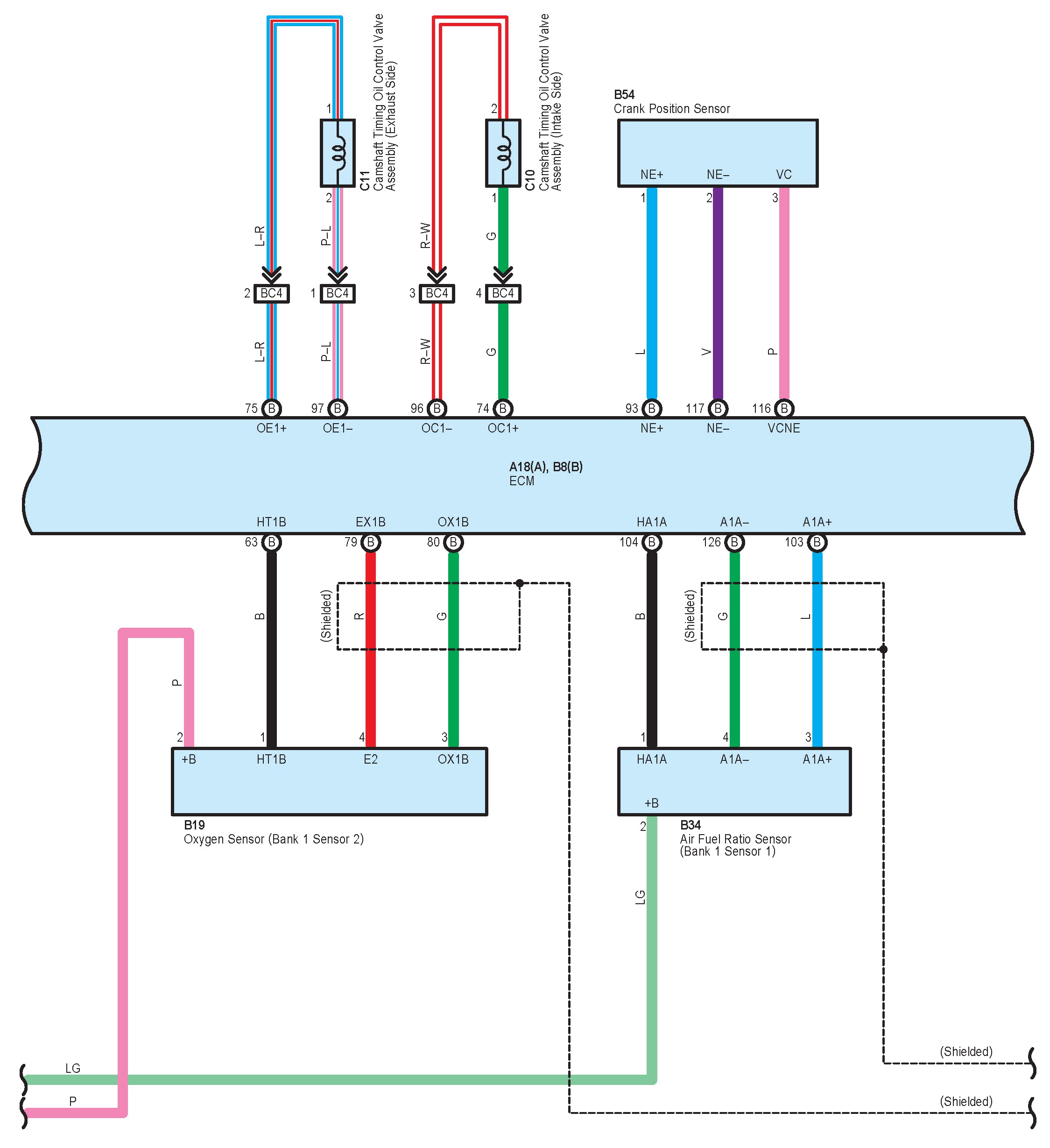

CVT, Engine Control and Shift Indicator Part 3:

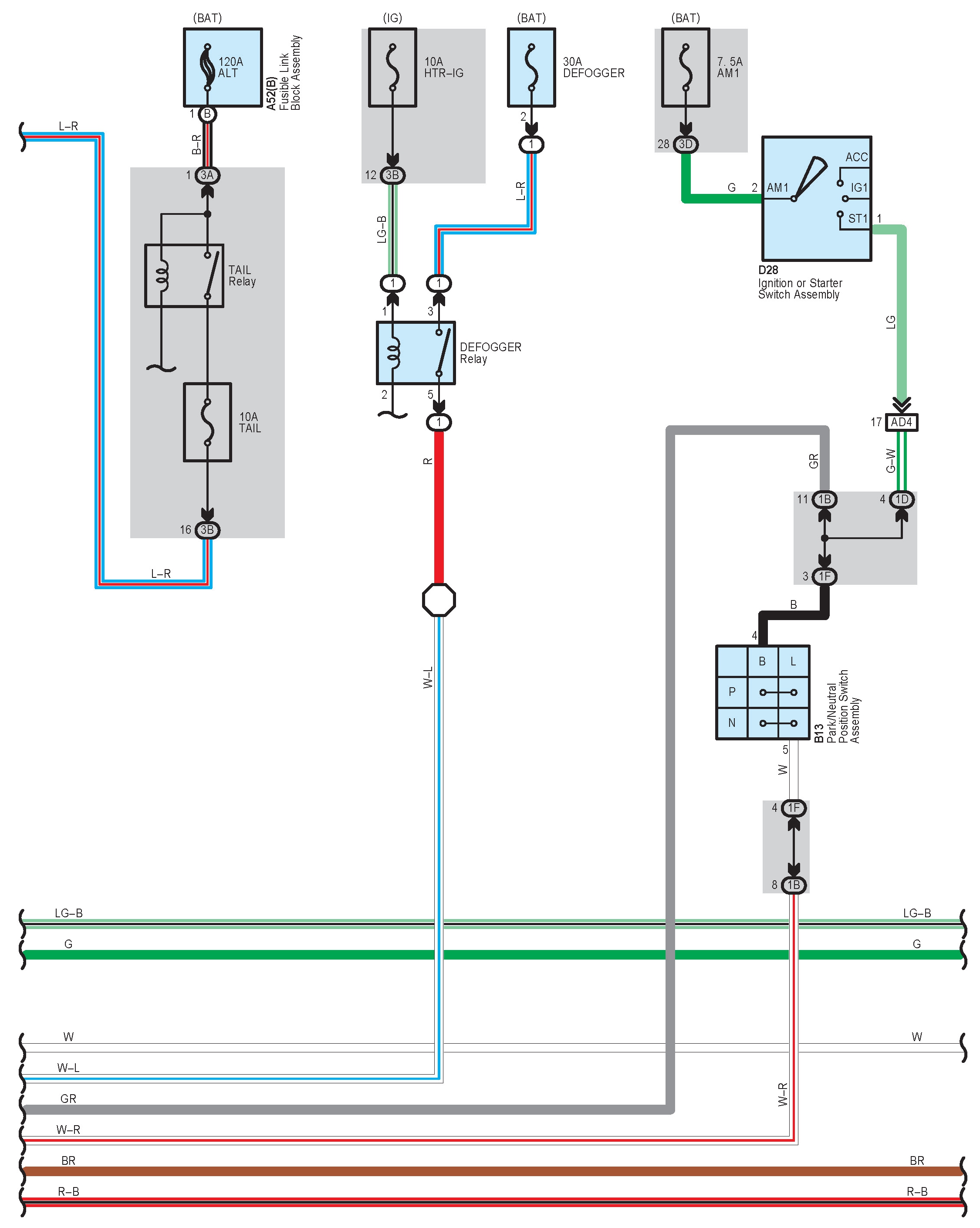

CVT, Engine Control and Shift Indicator Part 4:

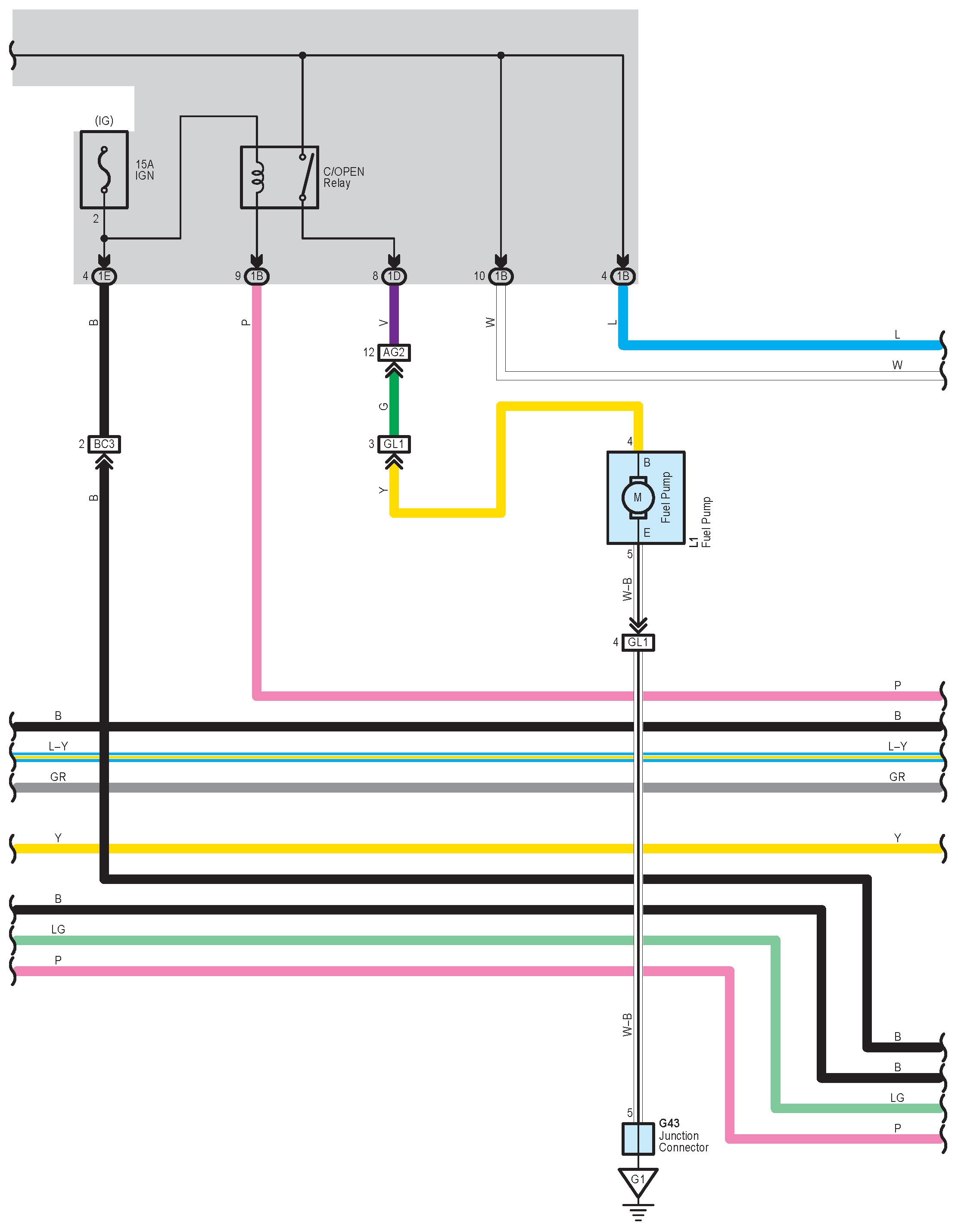

CVT, Engine Control and Shift Indicator Part 5:

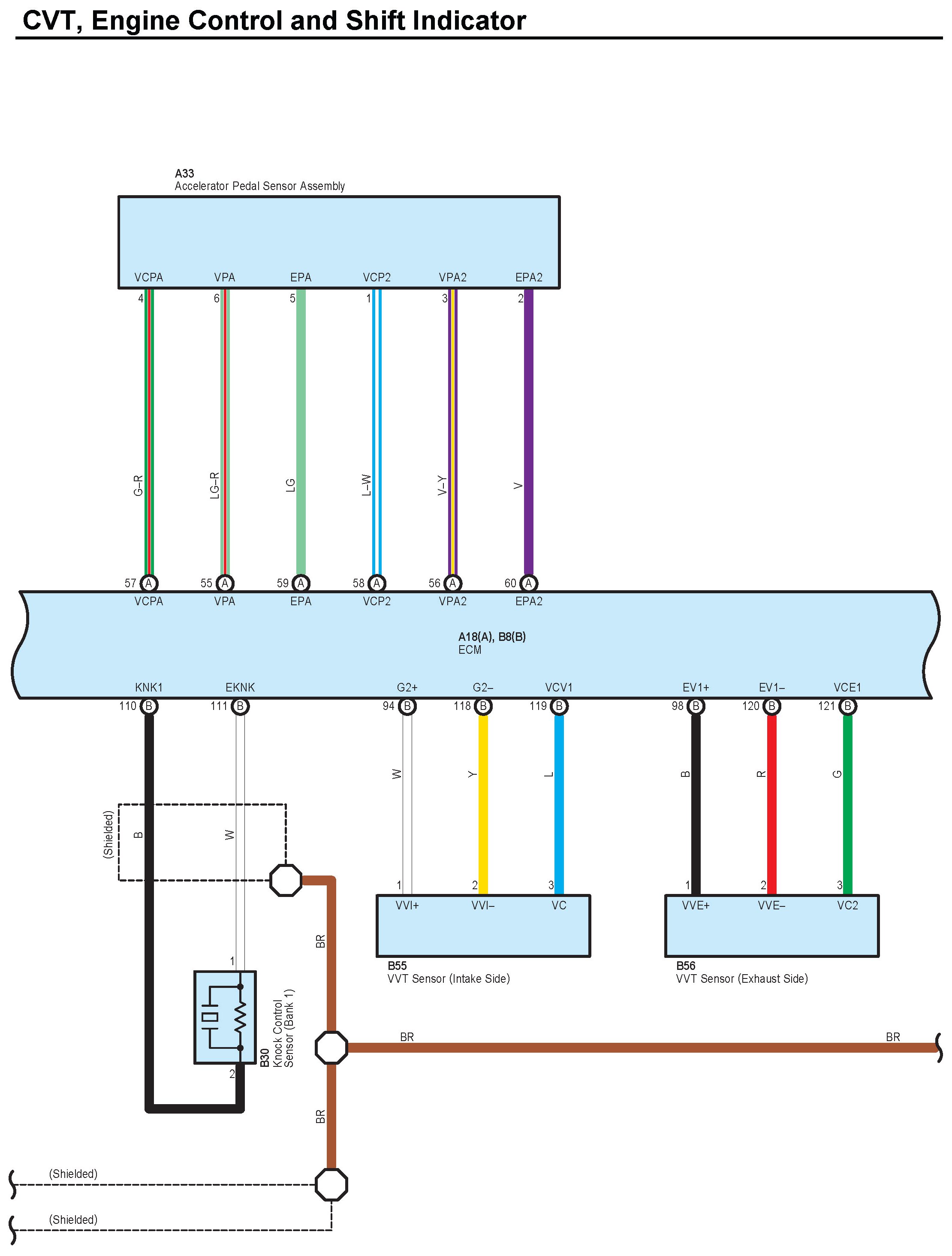

CVT, Engine Control and Shift Indicator Part 6:

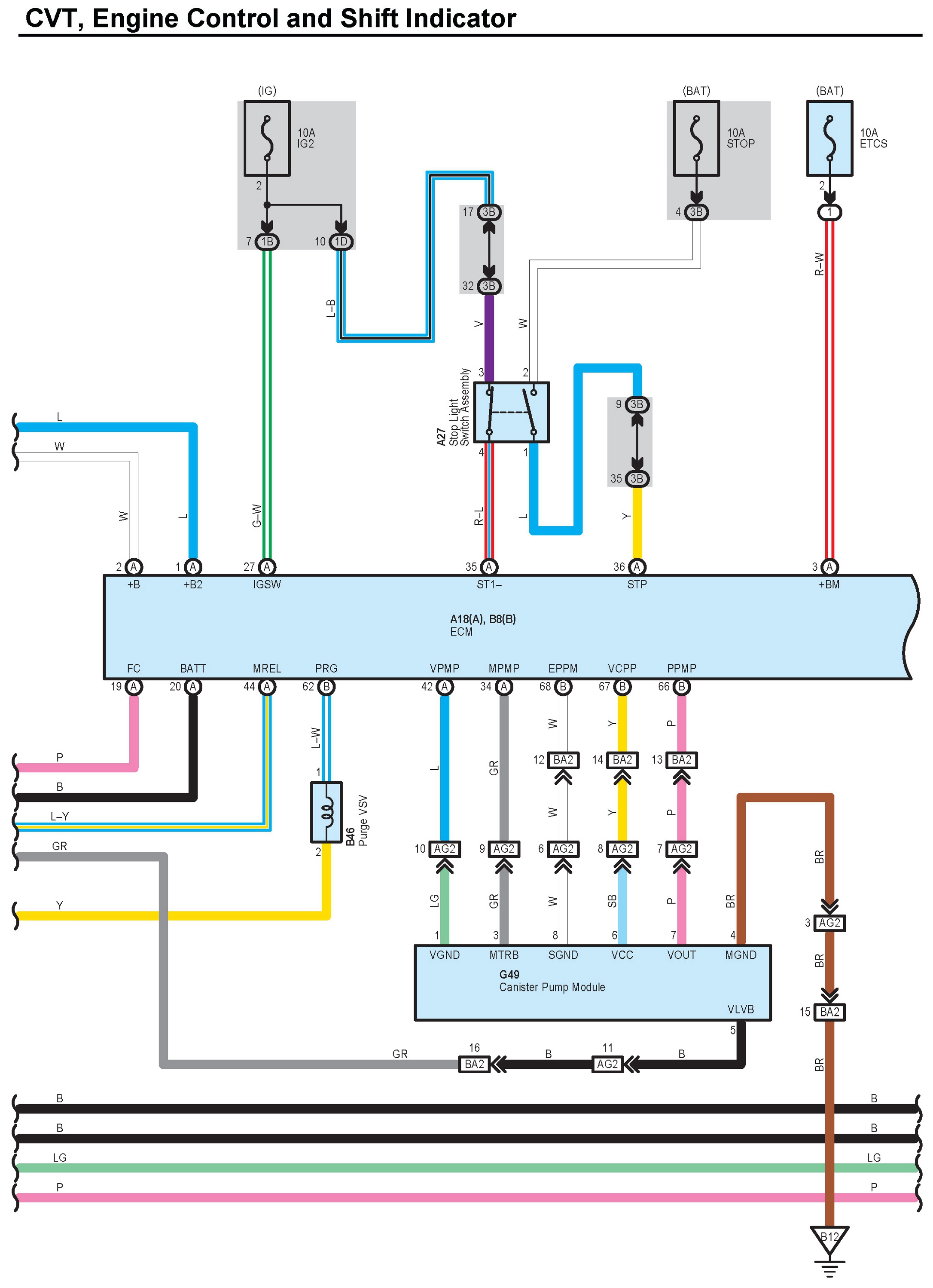

CVT, Engine Control and Shift Indicator Part 7:

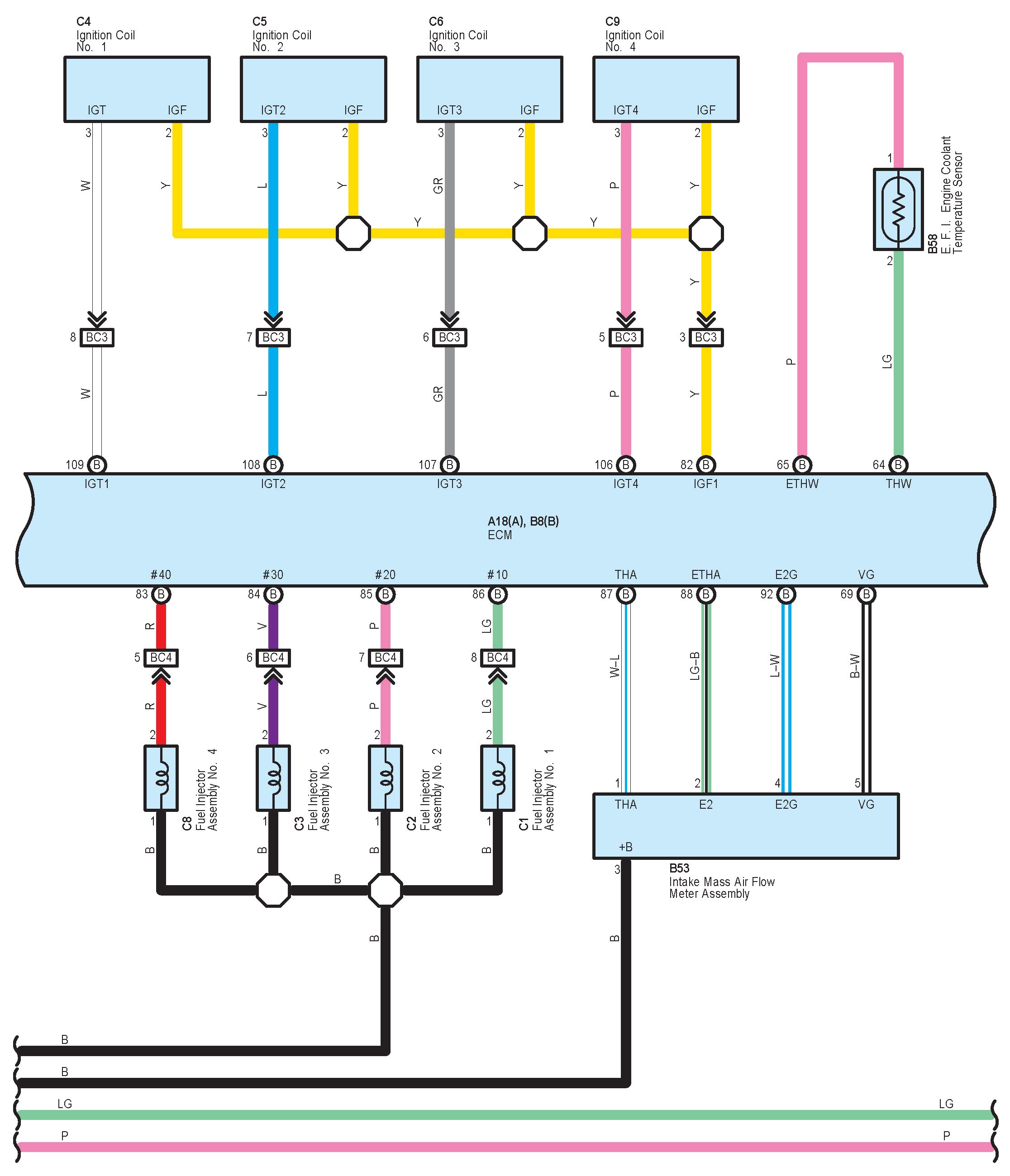

CVT, Engine Control and Shift Indicator Part 8:

CVT, Engine Control and Shift Indicator Part 9:

CVT, Engine Control and Shift Indicator Part 10:

CVT, Engine Control and Shift Indicator Part 11:

CVT, Engine Control and Shift Indicator Part 12:

CVT, Engine Control and Shift Indicator Part 13:

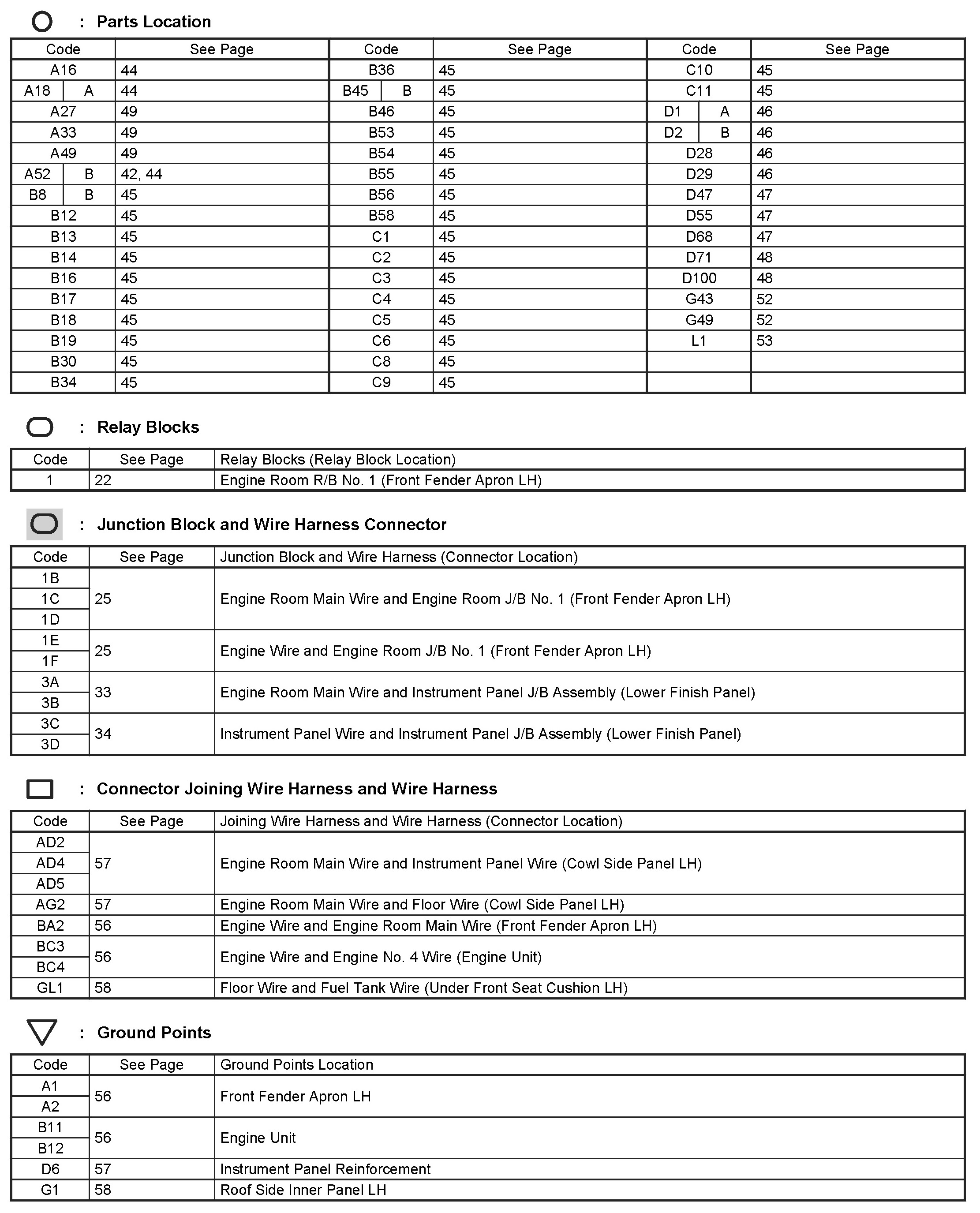

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
