Electrical Diagrams

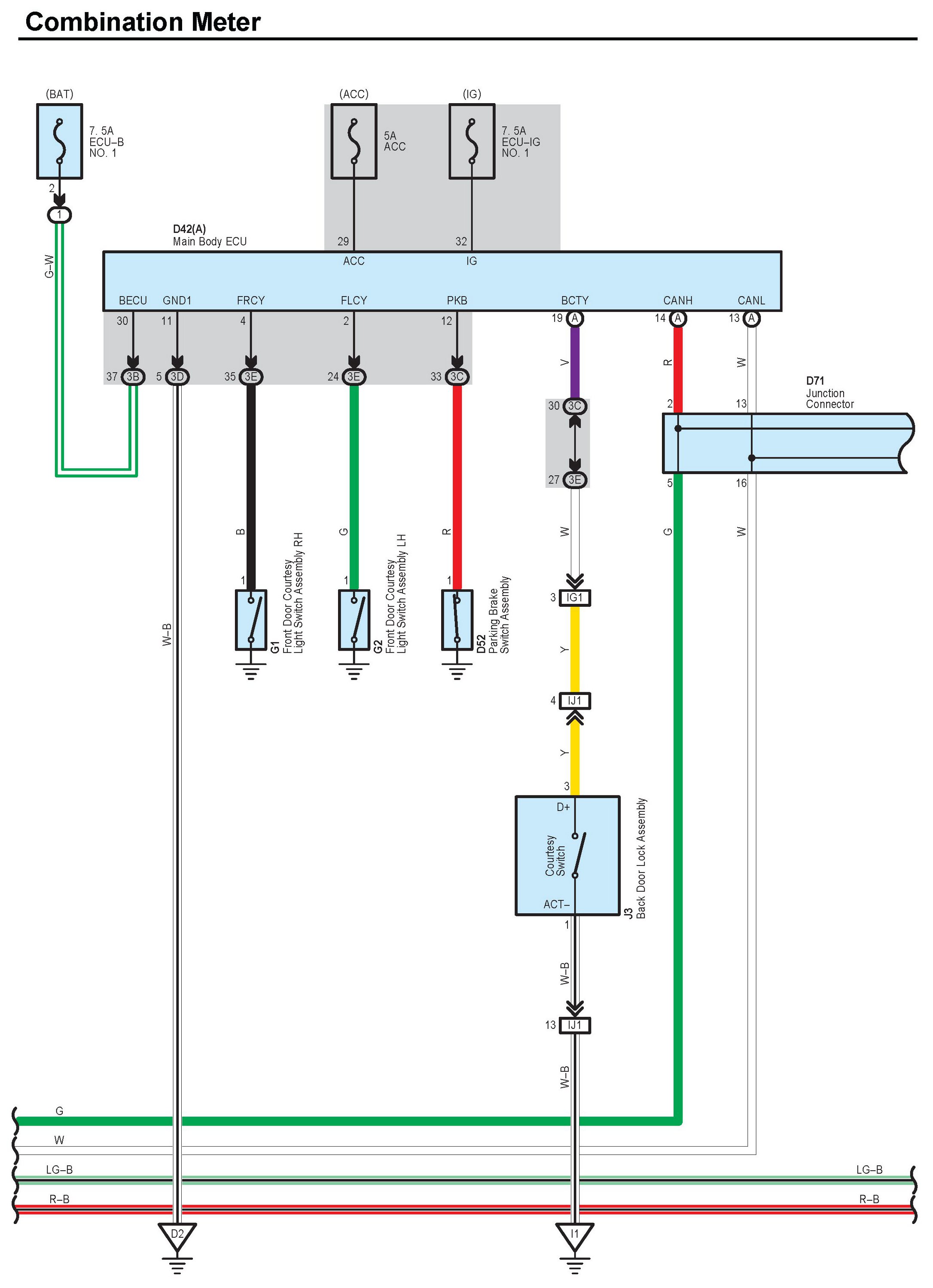

Combination Meter Part 1:

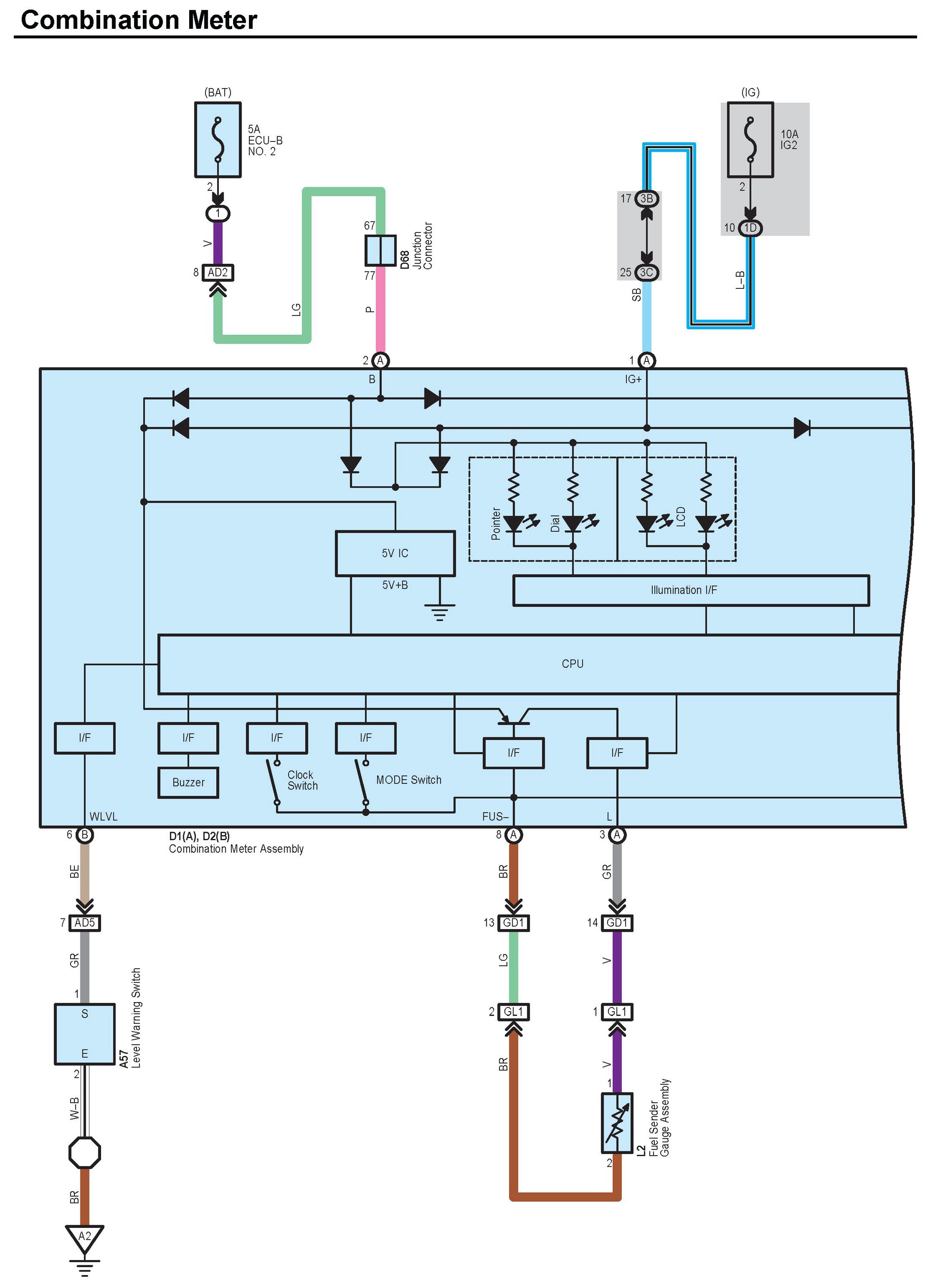

Combination Meter Part 2:

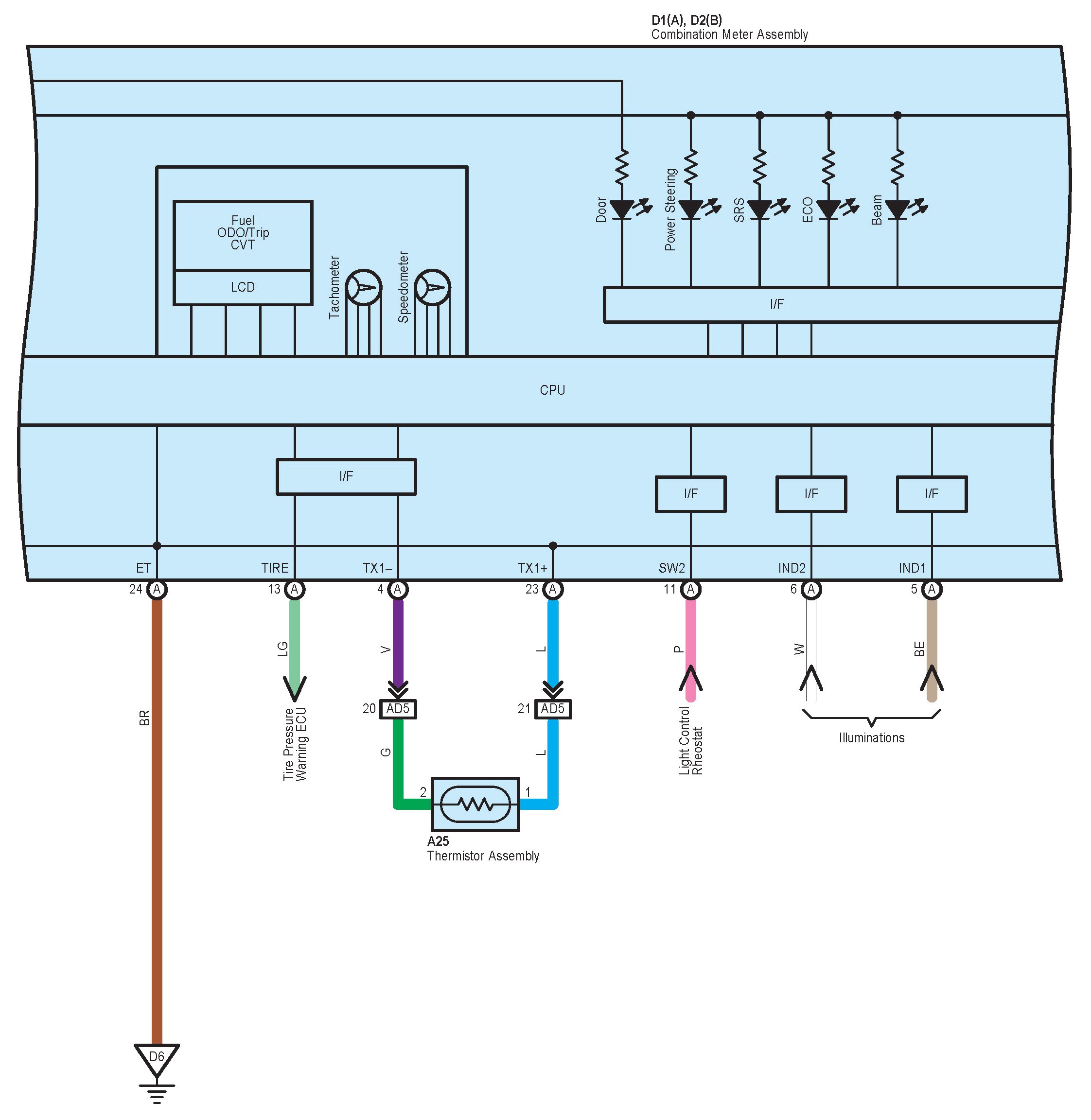

Combination Meter Part 3:

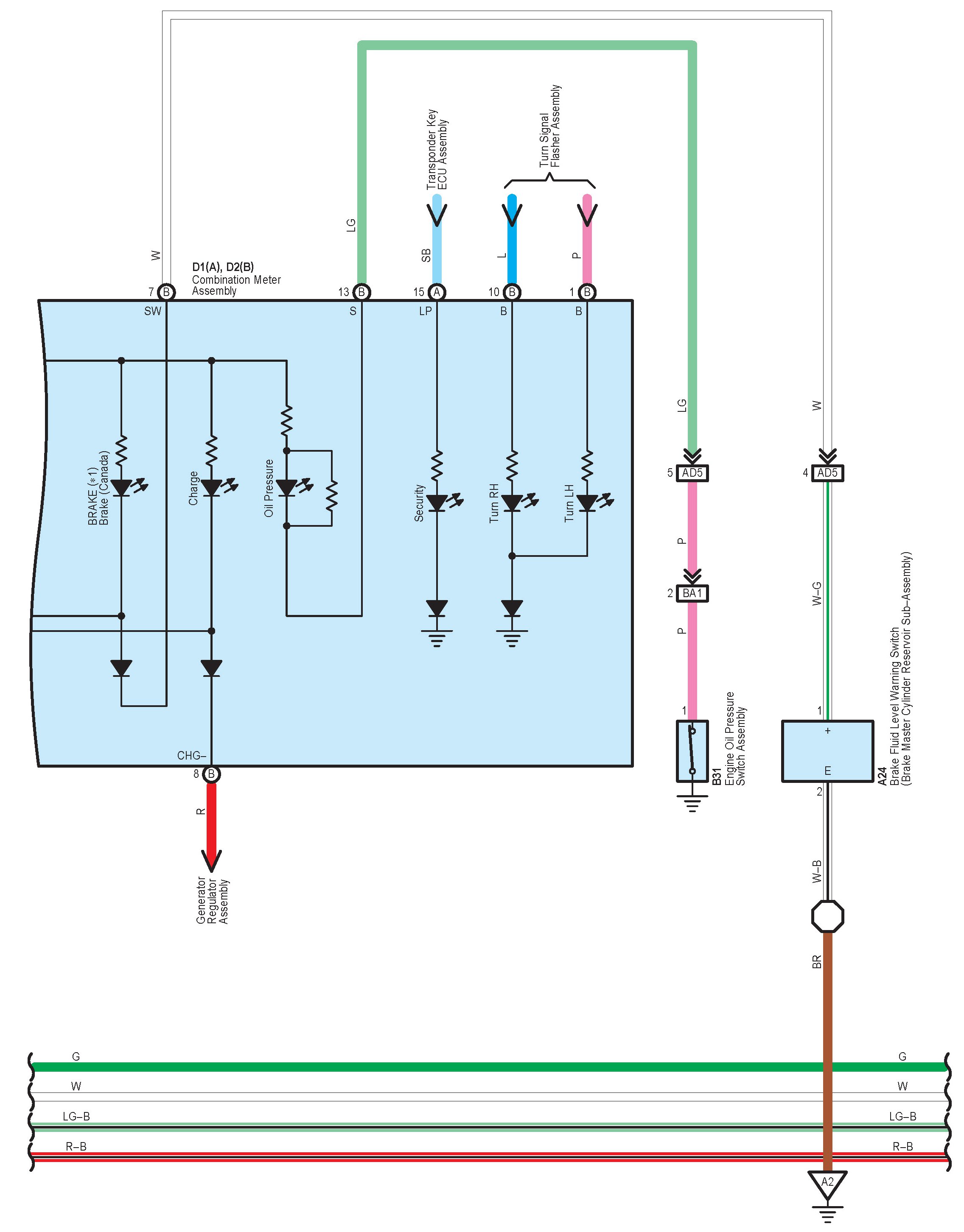

Combination Meter Part 4:

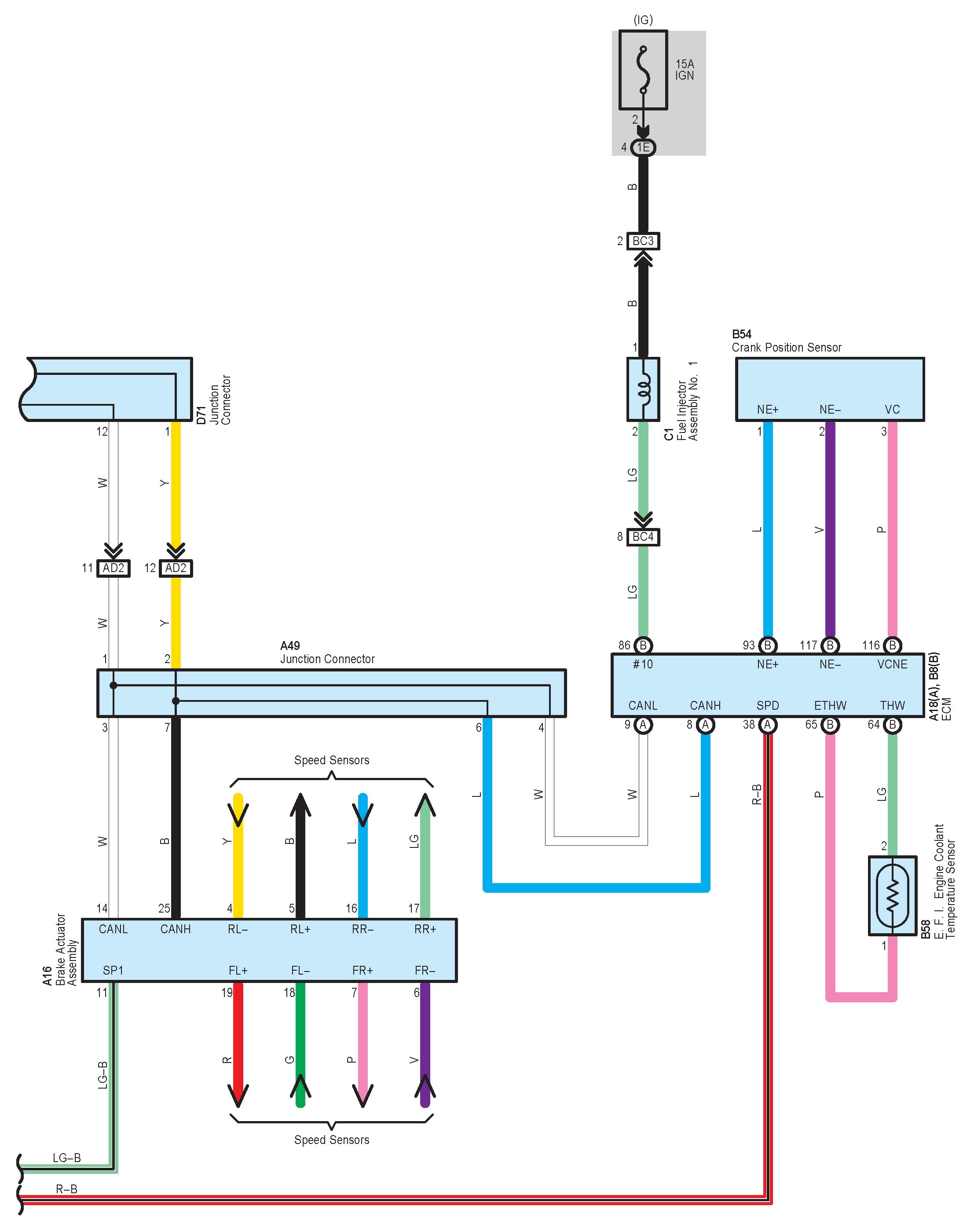

Combination Meter Part 5:

Combination Meter Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
