Lighting - Condensation In Rear Combination Lamps

S-SB-0037-12

December 17, 2012

Rear Combination Lamp Condensation

Service Category
Vehicle Exterior

Section
Lighting (ext)

Market
USA

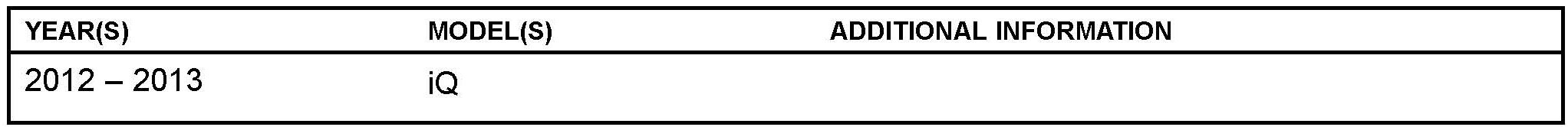

Applicability

Introduction





Some vehicles may exhibit a condition where condensation builds up on the inside of the lens of the Rear Combination Lamp Assembly. A new Rear Combination Lamp is now available to address this condition.

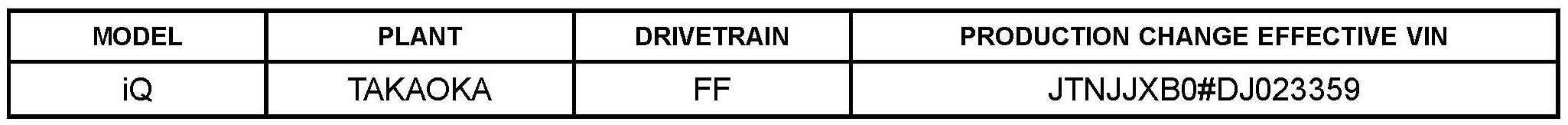

Production Change Information





This bulletin applies to:

^ ALL 2012 model year iQ vehicles.

^ 2013 model year iQ vehicles produced BEFORE the Production Change Effective VIN shown.

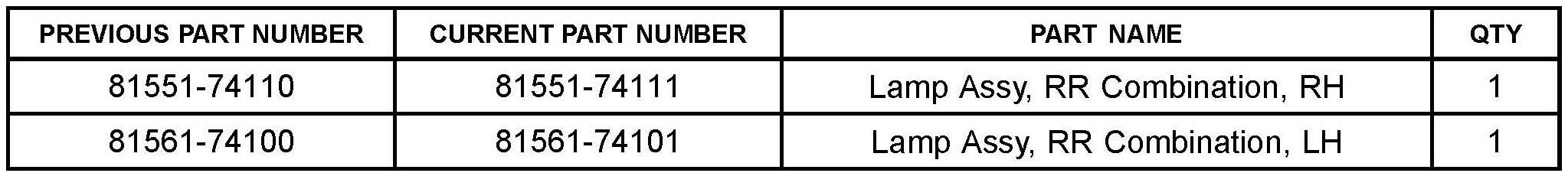

Parts Information

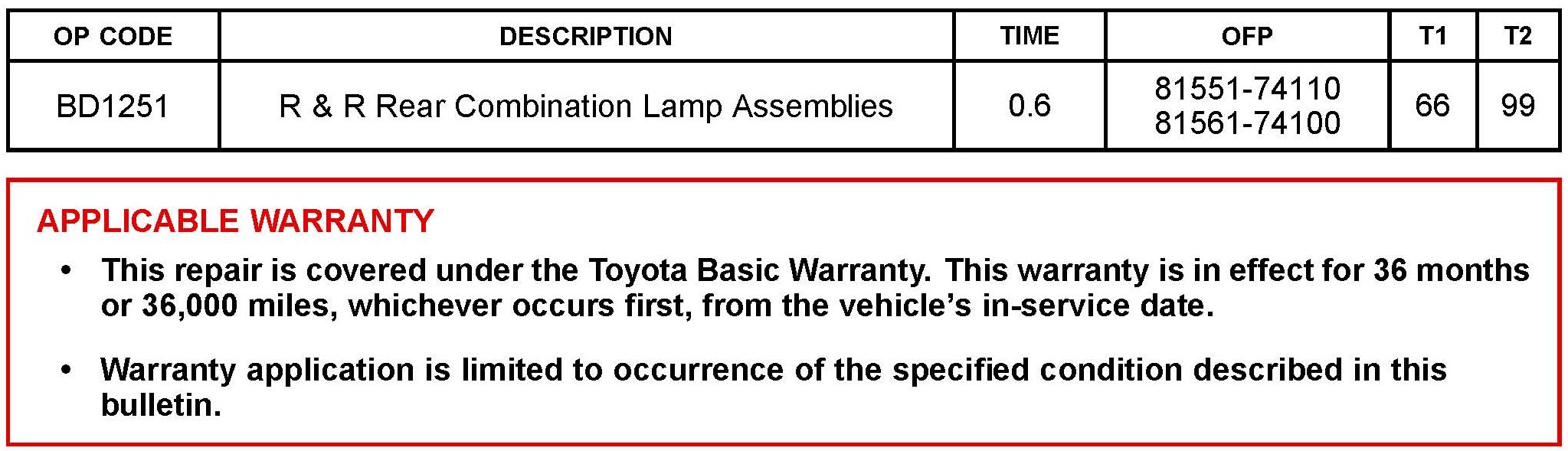

Warranty Information

Repair Procedure

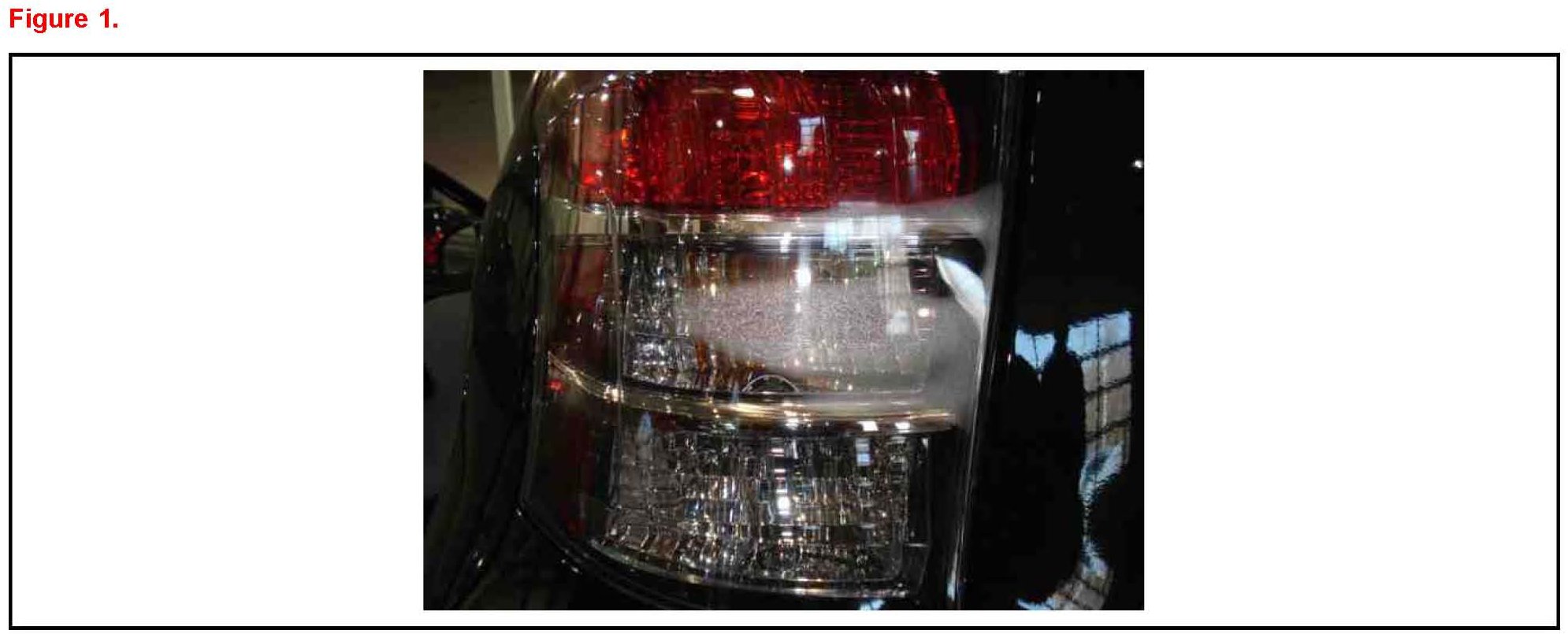

1. Confirm condensation is present in Rear Combination Lamp Assembly.

2. Replace Rear Combination Lamp Assembly.

Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:

^ 2012 iQ:

Vehicle Exterior - Lighting (Ext) - "Lighting (Ext): Rear Combination Light Assembly: Removal / Installation"

^ 2013 iQ:

Vehicle Exterior - Lighting (Ext) - "Lighting (Ext): Rear Combination Light Assembly: Removal / Installation"
