Emission Control Systems: Description and Operation

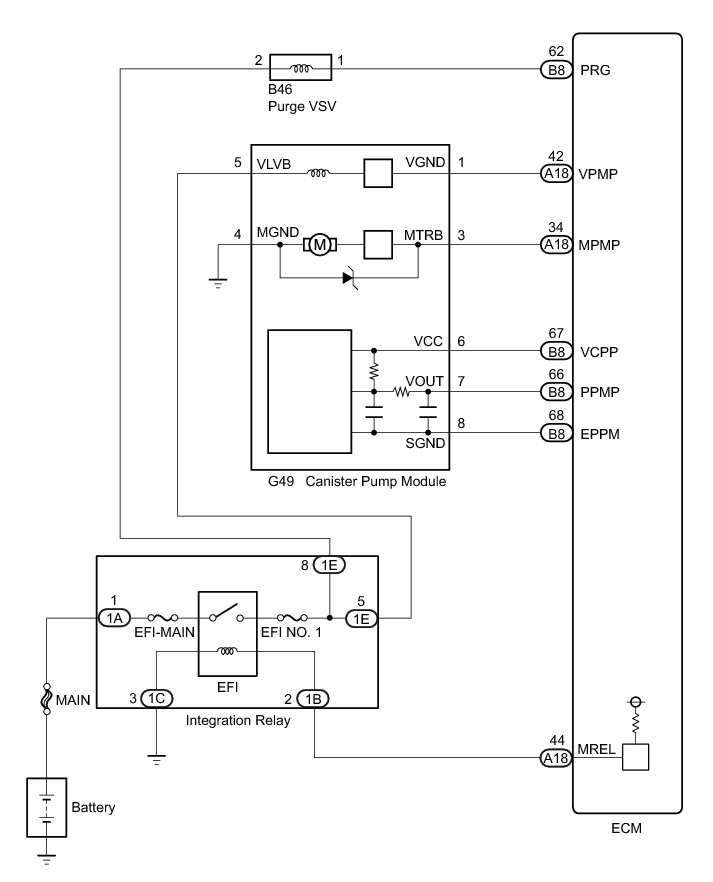

1NR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM
