Installation





DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

1. INSTALL DOOR CONTROL RECEIVER

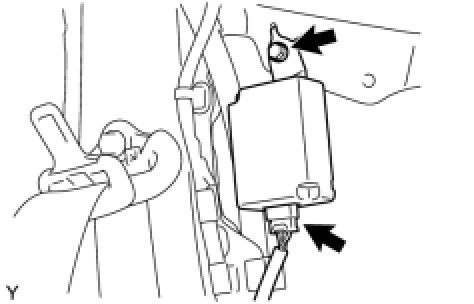

(a) Install the door control receiver with the bolt.





(b) Connect the connector.

2. INSTALL ROOF SIDE GARNISH INNER ASSEMBLY RH Installation

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation

4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

5. INSTALL REAR NO. 1 SEAT BELT OUTER ASSEMBLY RH Installation

6. INSTALL REAR DECK TRIM COVER Installation

7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation

8. INSTALL REAR DOOR SCUFF PLATE RH Installation

9. INSTALL REAR SEATBACK ASSEMBLY RH Installation

10. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

11. INSTALL REAR DECK FLOOR BOX Installation

12. INSTALL DECK FLOOR BOX RH Installation

13. INSTALL REAR FLOOR CARPET ASSEMBLY Installation
