Installation
DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION 1.

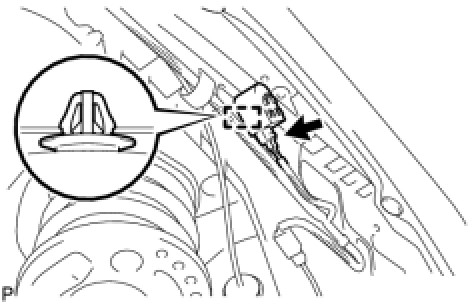

INSTALL WIRELESS DOOR LOCK BUZZER
(a)
Install the wireless door lock buzzer.
(b)
Connect the connector.
2.

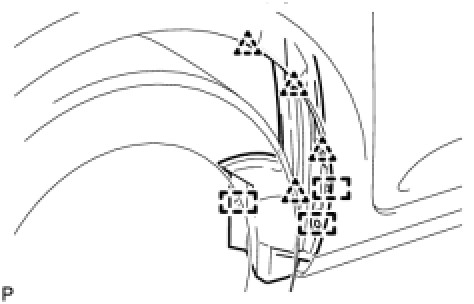

INSTALL FRONT FENDER LINER LH
(a)
Install the front fender liner with the 4 clips and 3 grommets.
(b)
Install the 2 screws.
3.

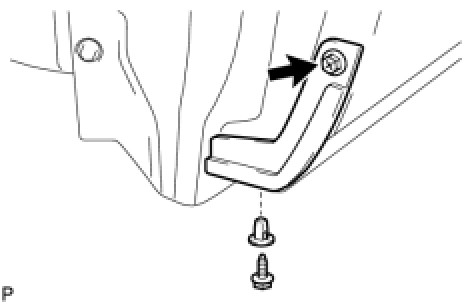

INSTALL FRONT SIDE MUDGUARD LH
(a)
Install the front side mudguard with grommet and 2 screws.
