Power Mirror Switch: Testing and Inspection





MIRROR: OUTER MIRROR SWITCH: INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

(a) The L position of the left/right adjustment switch: Measure the resistance of the outer mirror switch assembly.

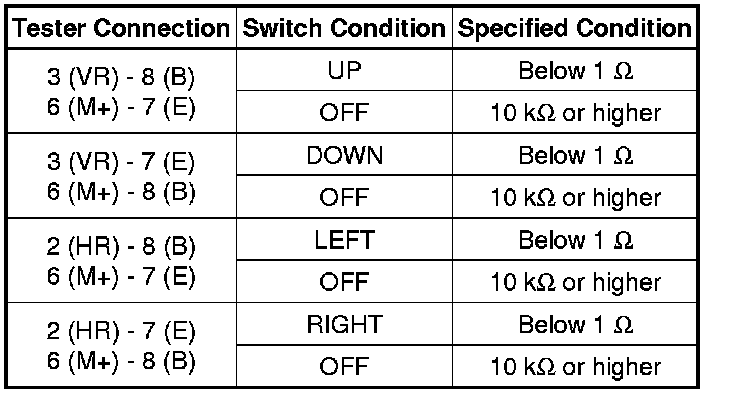

Standard resistance (for left side):





If the result is not as specified, replace the outer mirror switch assembly.

(b) The R position of the left/right adjustment switch: Measure the resistance of the outer mirror switch assembly.

Standard resistance (for right side):





If the result is not as specified, replace the outer mirror switch assembly.
