Installation

MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY

(a) Install the outer rear view mirror assembly.

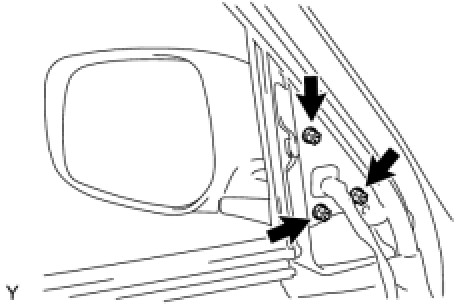

(b) Install the 3 nuts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

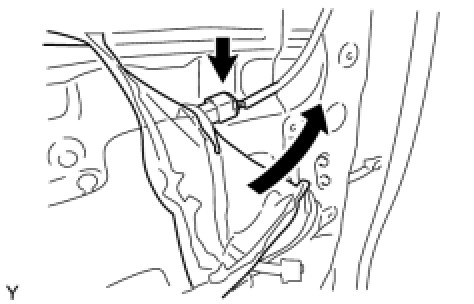

(c) Connect the connector.

(d) Install the front door service hole cover.

HINT
Make sure that cover is securely installed.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

HINT
Use the same procedure as for the RH side Reassembly.

3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL

HINT
Use the same procedure as for the RH side Reassembly.

4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

HINT
Use the same procedure as for the RH side Reassembly.

5. INSTALL FRONT DOOR ARMREST BASE UPPER PANEL

HINT
Use the same procedure as for the RH side Reassembly.
