Home
>>
Scion
>>
2012
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Service and Repair
>>
Removal and Replacement
>>
Front Brake
>>
Components
Components

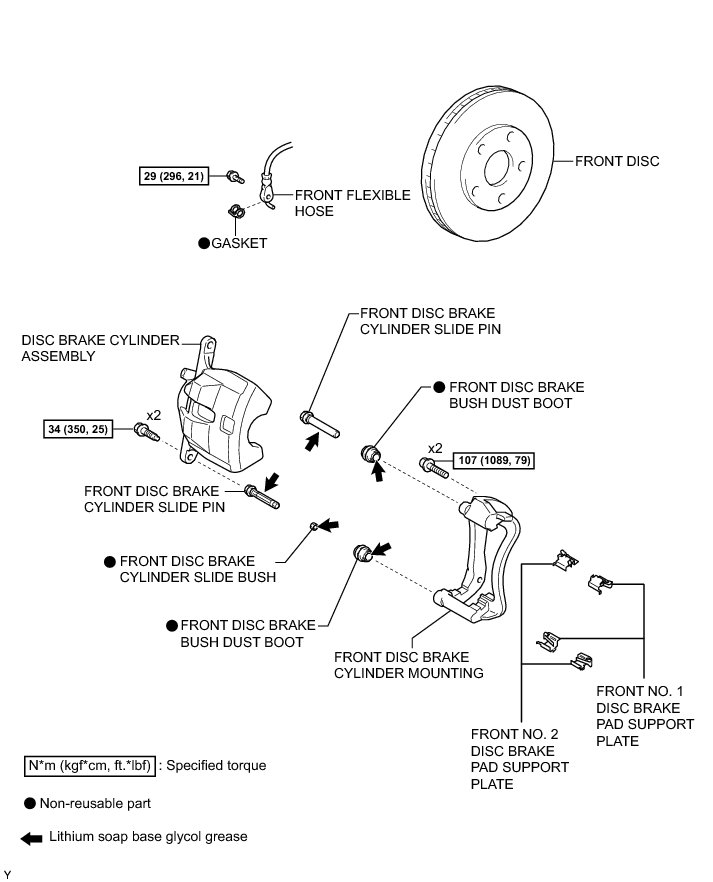

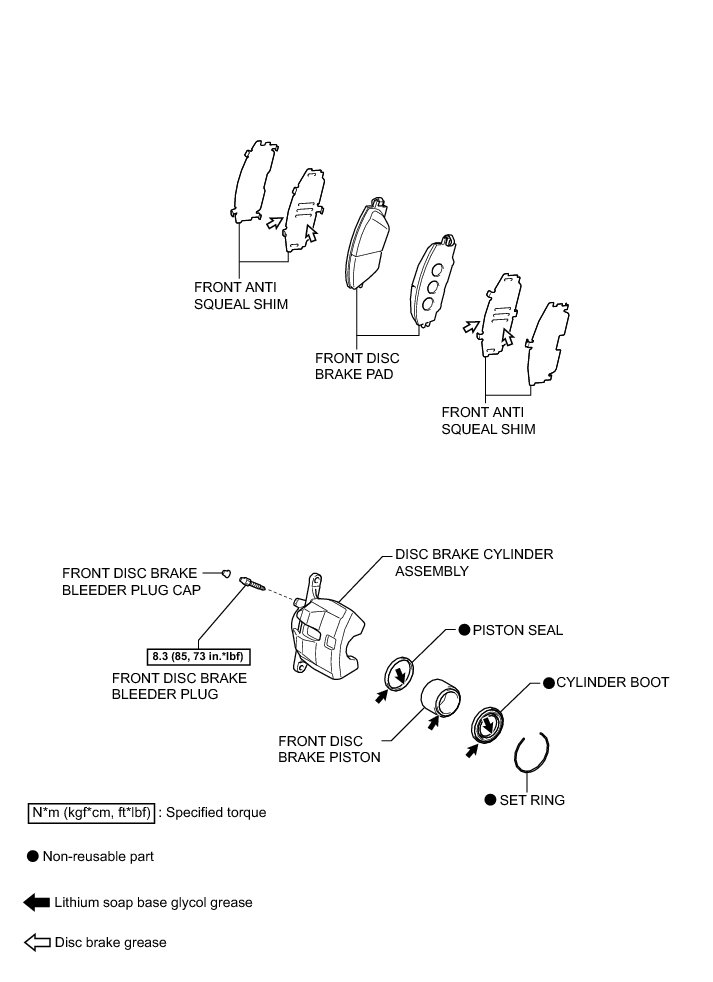

BRAKE: FRONT BRAKE: COMPONENTS
