Power Locks

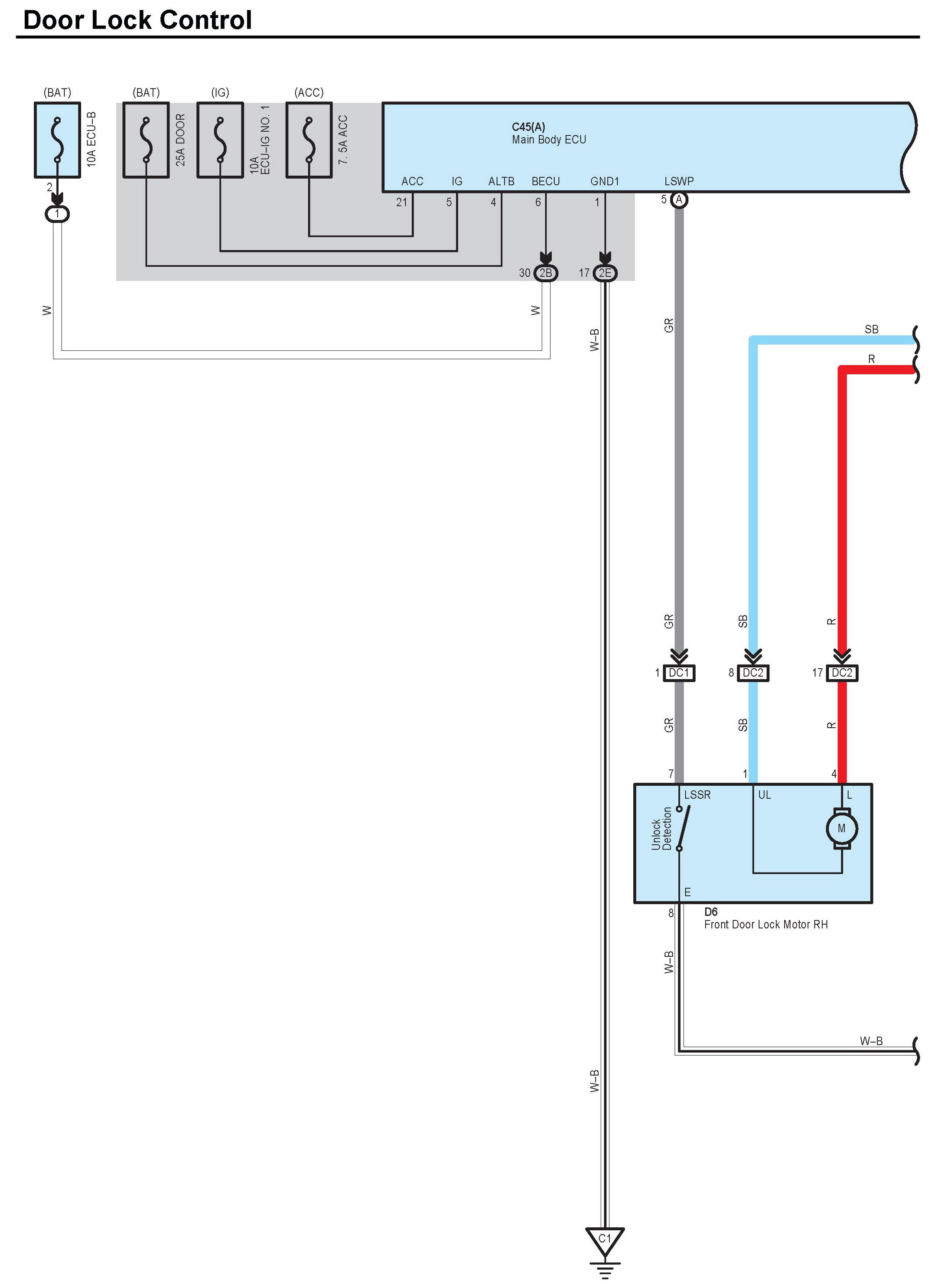

Door Lock Control Part 1:




Door Lock Control Part 2:

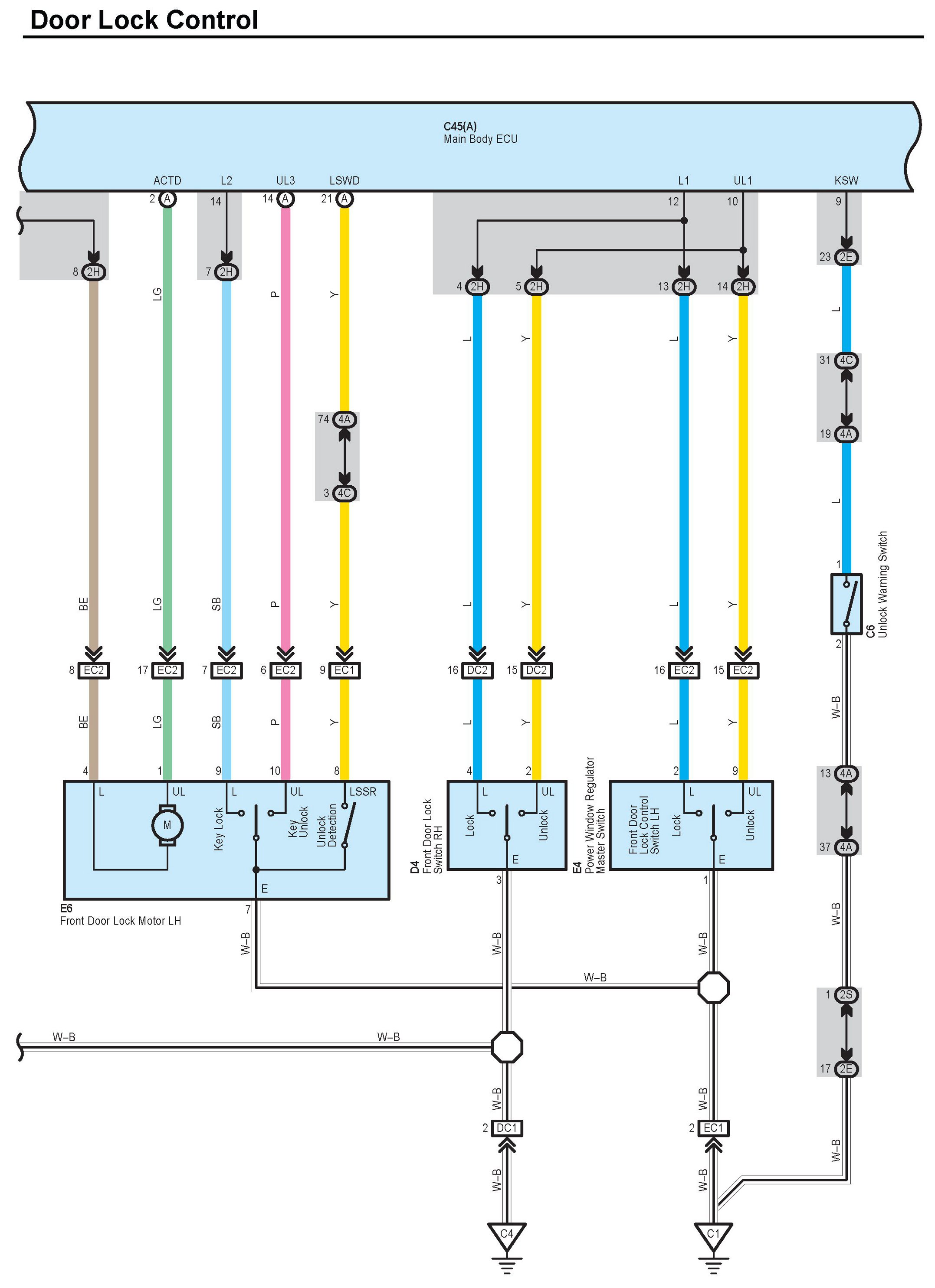

Door Lock Control Part 3:

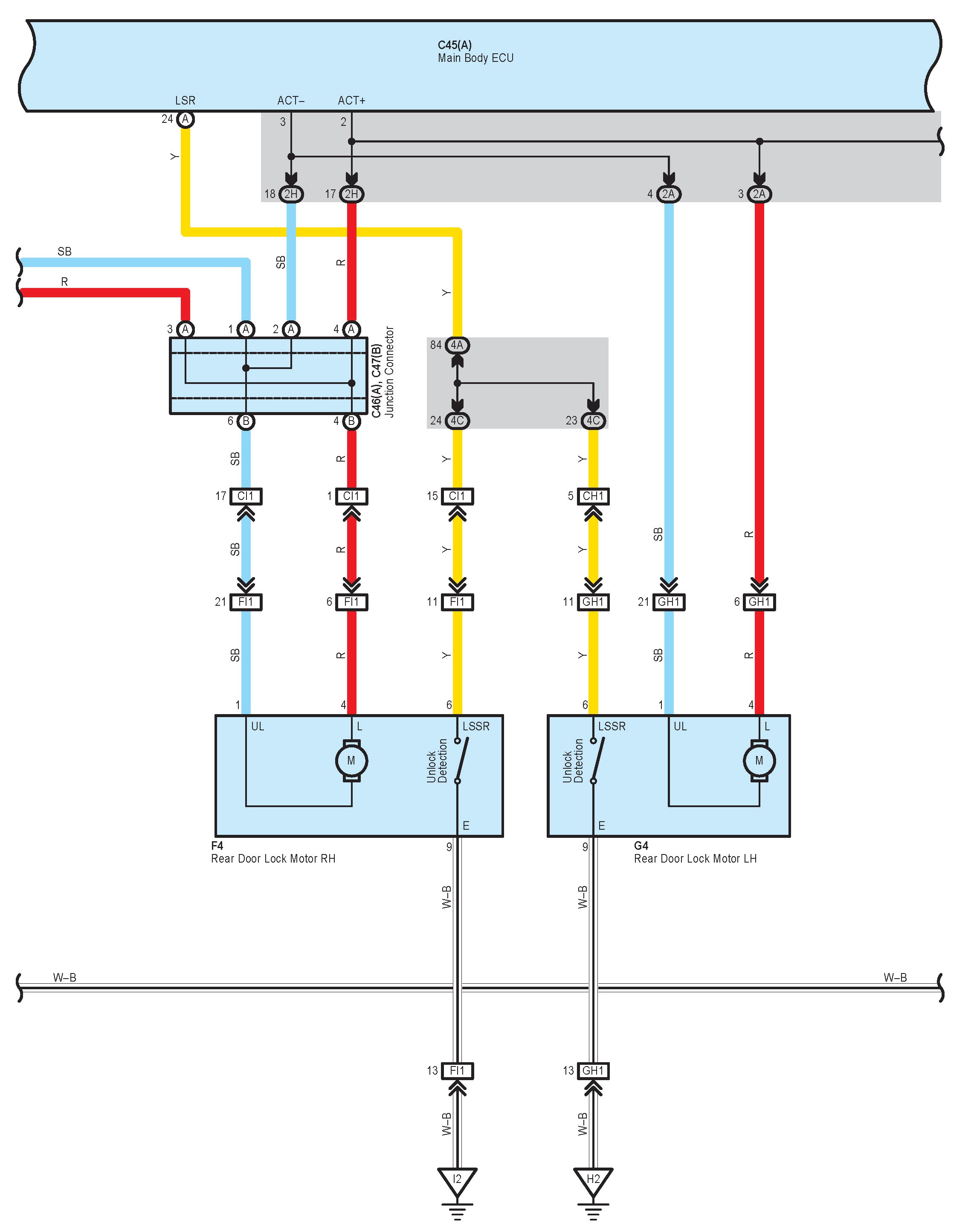

Door Lock Control Part 4:

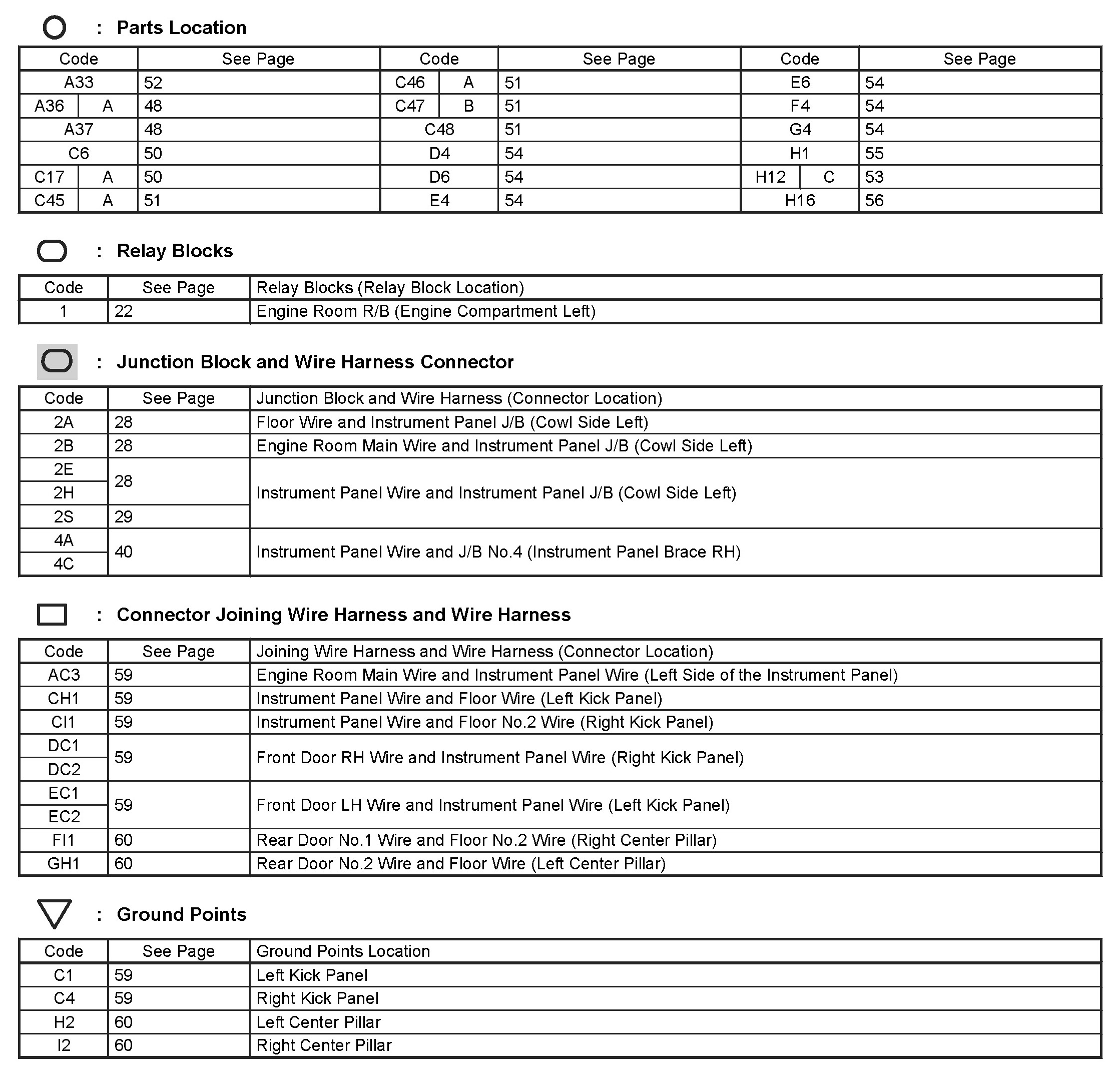

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
