Disassembly
AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLY 1.
REMOVE HEATER CONTROL BASE SUB-ASSEMBLY
(a)

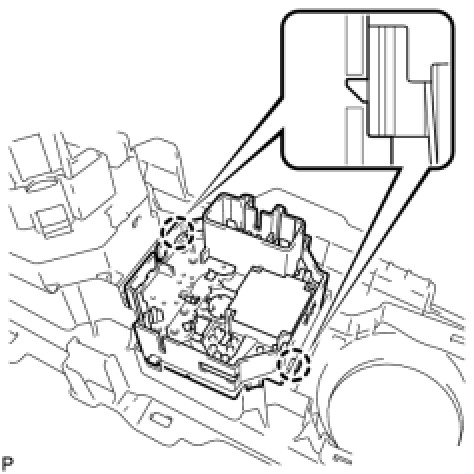

Disengage the 2 claws and remove the heater control base.
(b)

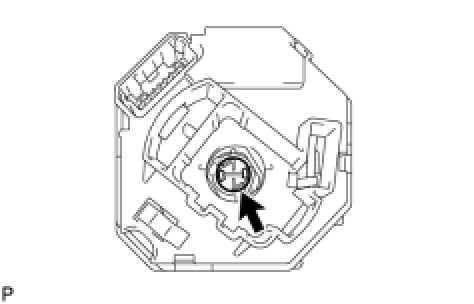

Remove the bulb.
2.
REMOVE HEATER CONTROL SUB-ASSEMBLY
(a)

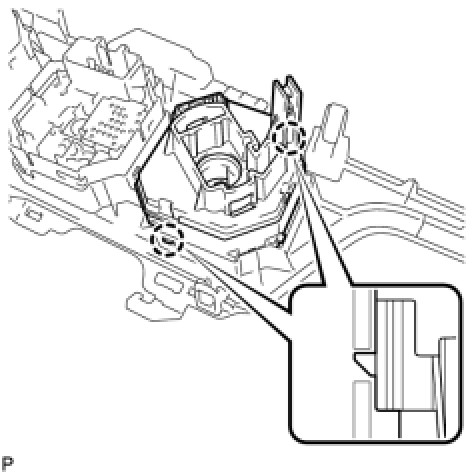

Disengage the 2 claws and remove the heater control.
(b)

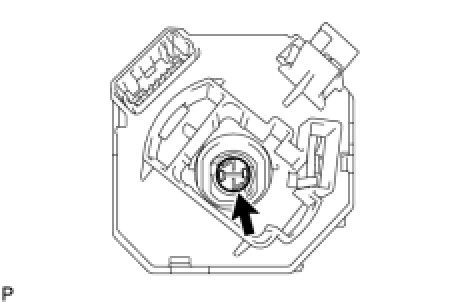

Remove the bulb.
3.
REMOVE NO. 3 HEATER CONTROL SUB-ASSEMBLY
(a)

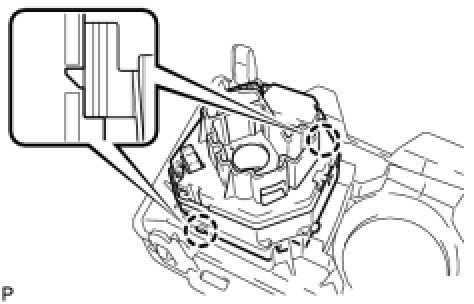

Disengage the 2 claws and remove the heater control.
(b)

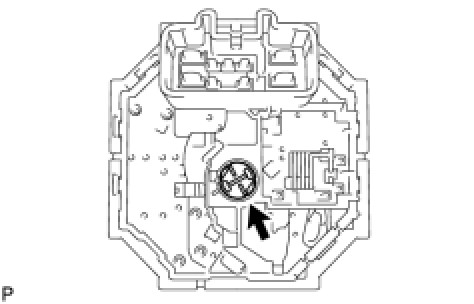

Remove the bulb.
