Initialization





METER: METER / GAUGE SYSTEM: INITIALIZATION

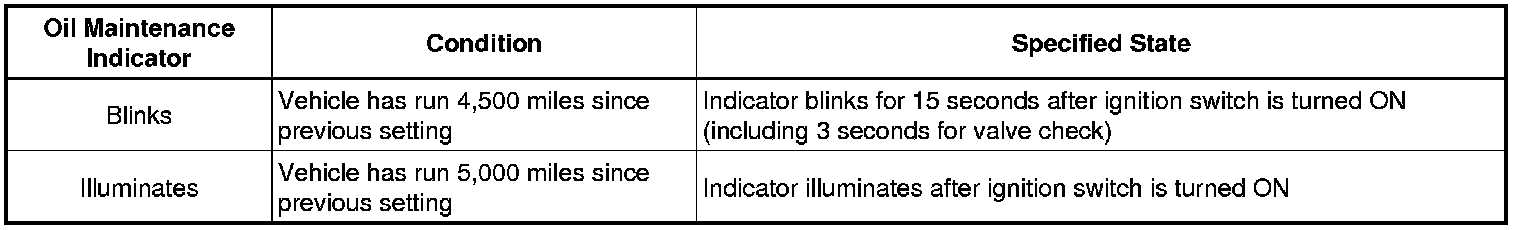

1. OIL MAINTENANCE INDICATOR RESETTING PROCEDURE





(a) Set the window display located inside the combination meter to the Trip A indication.

(b) Turn the ignition switch off.

(c) While pressing the ODO/TRIP display change switch (reset switch) (for at least 5 seconds), turn the ignition switch on (IG).

(d) When the reset procedure has been completed successfully, the MAINT REQD indicator light turns off and the ODO/TRIP meter indicates 0 (zero) and then returns to its regular display.

HINT
If the reset fails, the MAINT REQD indicator light remains illuminated. Perform the procedure again.
