Alignment: Specifications

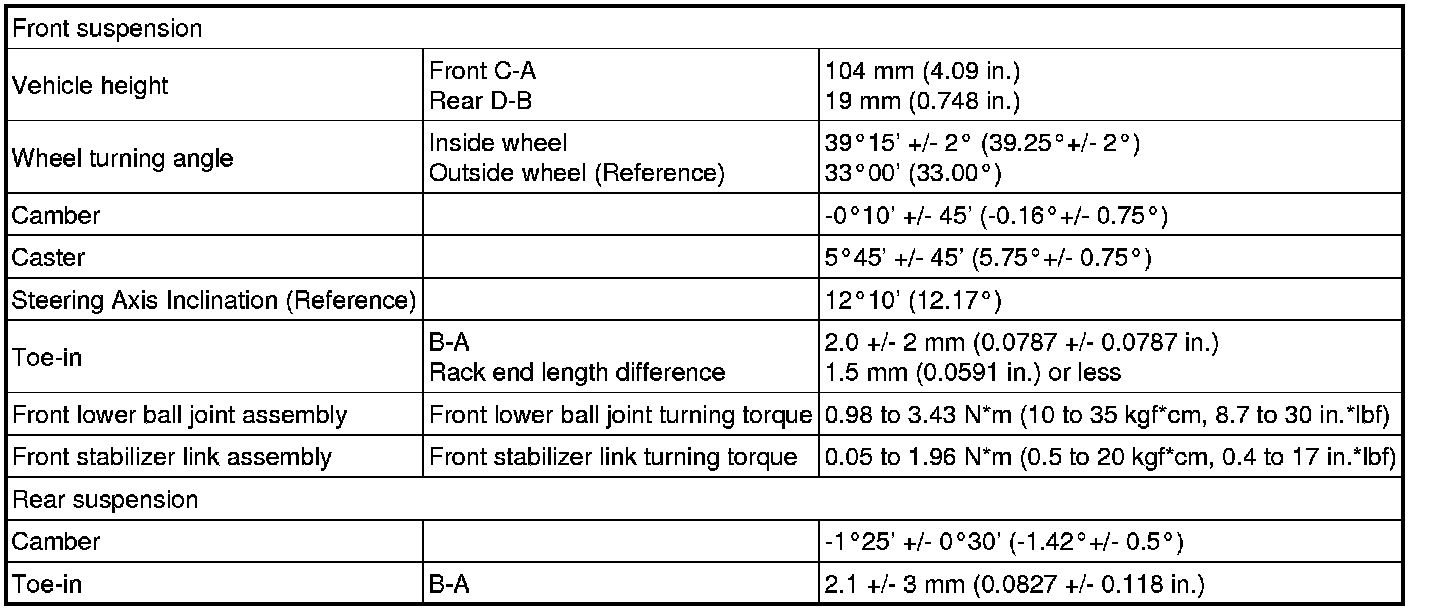

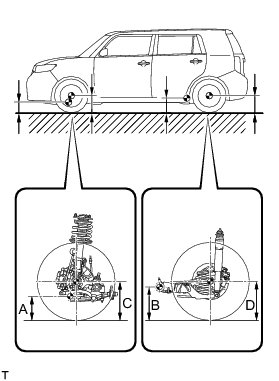

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATAFront and Rear Wheel AlignmentVehicle Height Measuring Points
A
Ground clearance of No. 1 lower suspension arm bushing set bolt center
B
Ground clearance of rear axle carrier bushing set bolt center
C
Ground clearance of front wheel center
D
Ground clearance of rear wheel center
