2AZ-FE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: REMOVAL 1.
REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
(a)
Remove the 4 bolts and remove the No. 1 exhaust manifold heat insulator.
2.
REMOVE AIR FUEL RATIO SENSOR
(a)
Disconnect the air fuel ratio sensor connector.
(b)

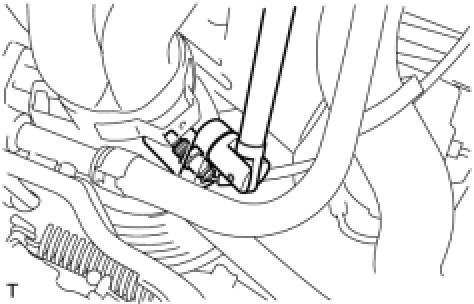

Using SST, remove the air fuel ratio sensor.
SST : 09224-00010
