Transmission Control Switch Circuit

U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: Transmission Control Switch Circuit
- Transmission Control Switch Circuit

DESCRIPTION

After moving the shift lever to S using the transmission control switch, it is possible to change the shift range between "1" (1st range) and "4" (4th range).

Shifting to "+" once raises the shift range by one, and shifting to "-" lowers the shift range position by one.

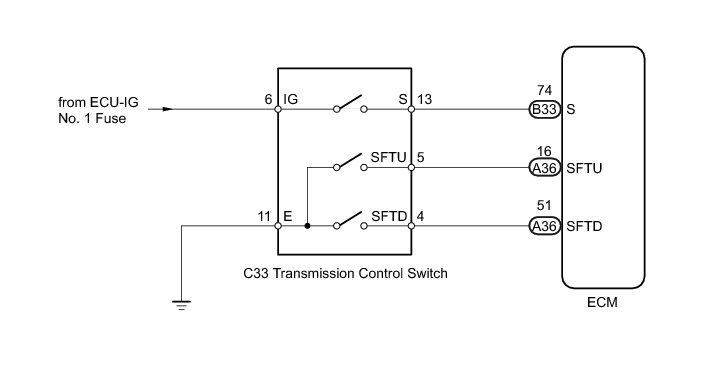

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Disconnect the transmission control switch connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH) Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BATTERY, BODY GROUND)

(a) Turn the ignition switch to ON.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Turn the ignition switch off.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

(a) Reconnect the transmission control switch connector.





(b) Disconnect the ECM connectors.

(c) Turn the ignition switch to ON.

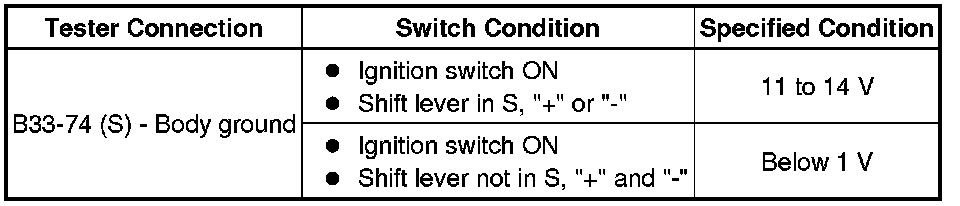

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(e) Turn the ignition switch off.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
