Road Test
U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: ROAD TEST
1. PROBLEM SYMPTOM CONFIRMATION
(a) Based on the result of the customer problem analysis, try to reproduce the symptoms. If the problem is that the transaxle does not shift up or down or the shift point is too high or too low, conduct the following road test referring to the automatic shift schedule and simulate the problem symptoms.
2. ROAD TEST

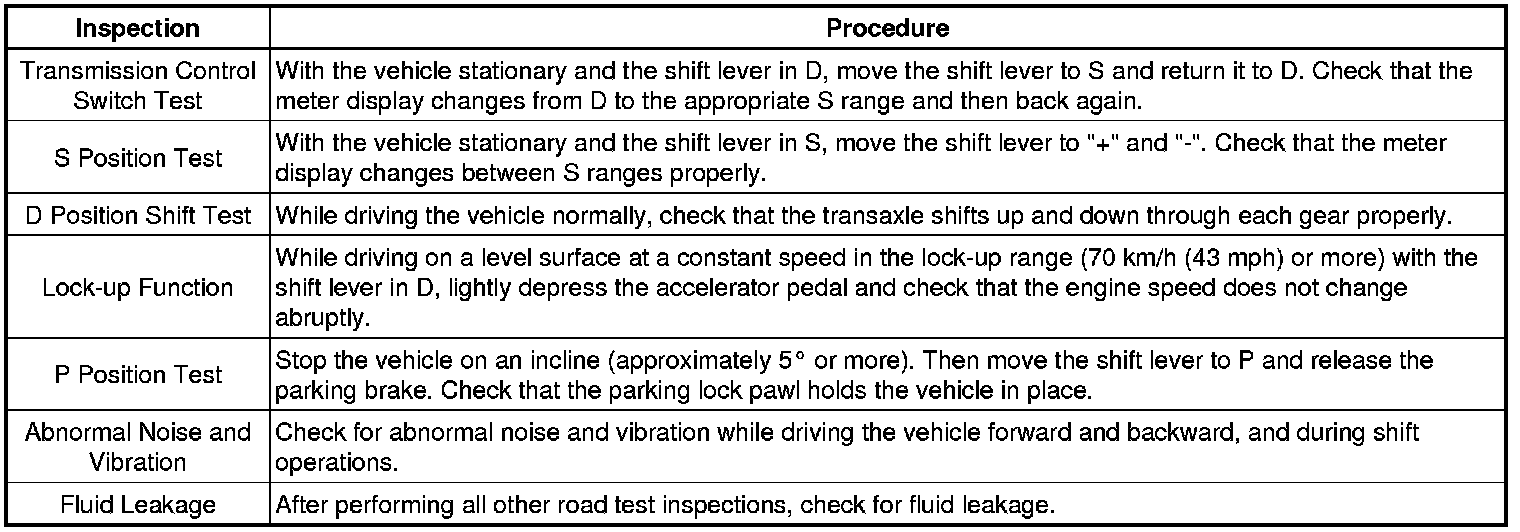

(a) Perform a road test.
CAUTION:
Check for safety before performing any tests.
NOTICE:
* Be sure to inspect and adjust the engine before performing these tests.
* Perform the road test with the engine coolant temperature between 60 to 100°C (140 and 212°F) and the ATF temperature is between 50 to 80°C (122 to 176°F).
* Perform these tests with the air conditioning off.
