Timing Cover

Timing Chain Cover Fasteners

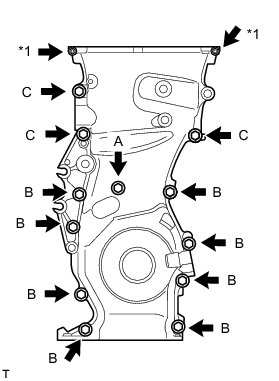

Install the timing chain cover with the 12 bolts and 2 nuts.

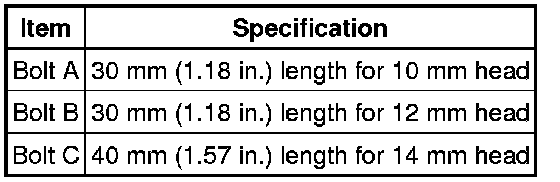

Bolt A 9.0 Nm (92 kgf-cm, 80 in-lbf)
Bolt B 25 Nm (255 kgf-cm, 18 ft-lbf)
Bolt C 55 Nm (561 kgf-cm, 41 ft-lbf)
Nut 11 Nm (112 kgf-cm, 8 ft-lbf)
