Home
>>
Scion
>>
2012
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Specifications
>>
Mechanical Specifications
>>
Service Data
Service Data

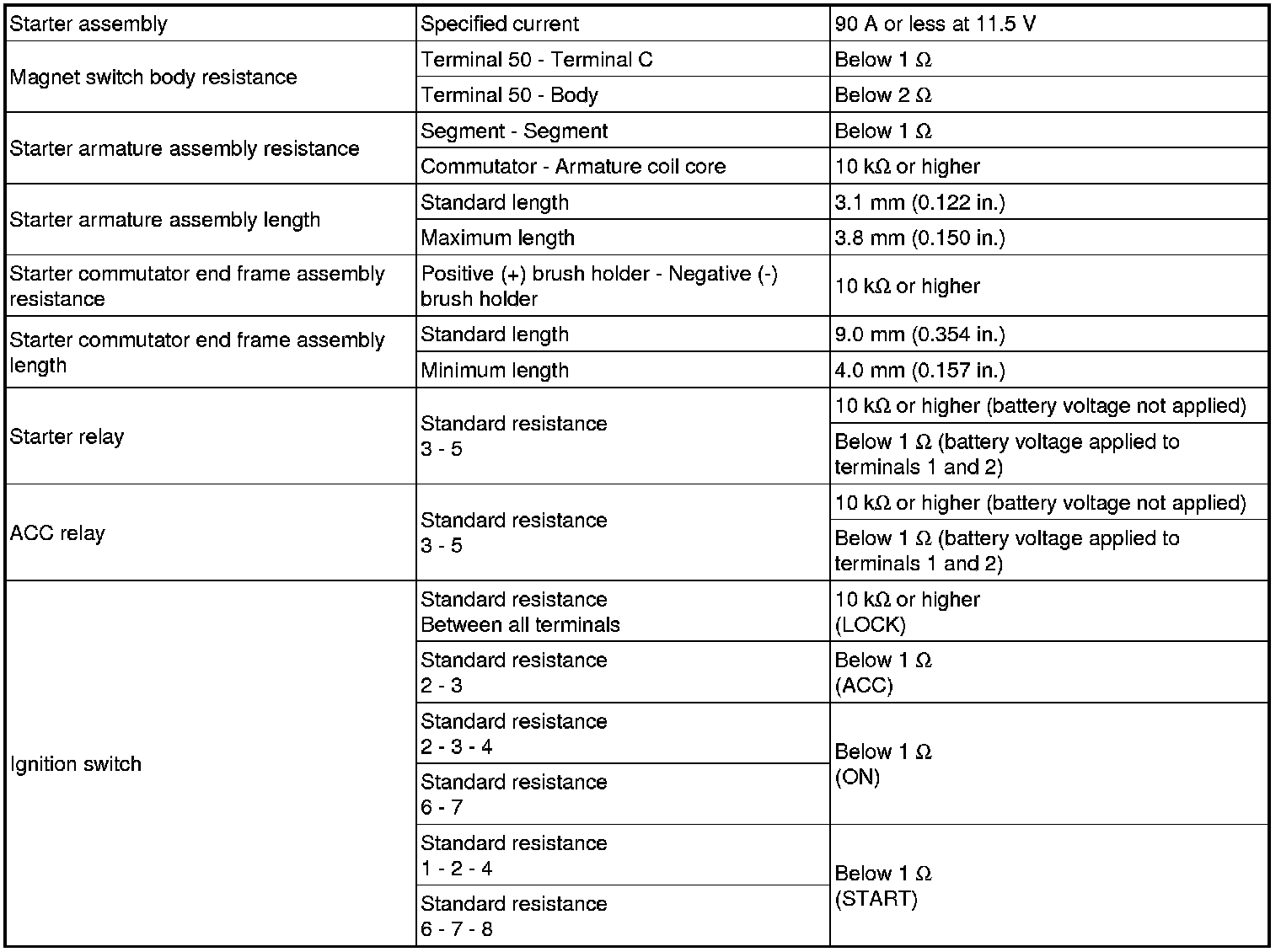

SERVICE SPECIFICATIONS: 2AZ-FE STARTING: SERVICE DATA
