Repair and Diagnosis: Testing and Inspection
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

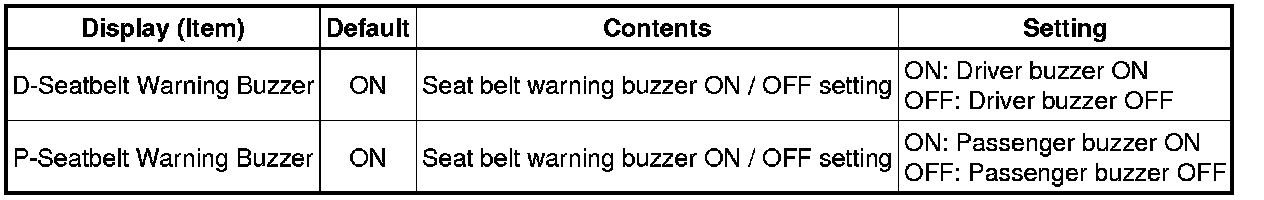

1. SEAT BELT WARNING SYSTEM
HINT
When the buzzer OFF setting is selected, the buzzer activation while the vehicle is being driven is cancelled. However, the buzzer activation when the ignition switch is turned to ON cannot be cancelled.

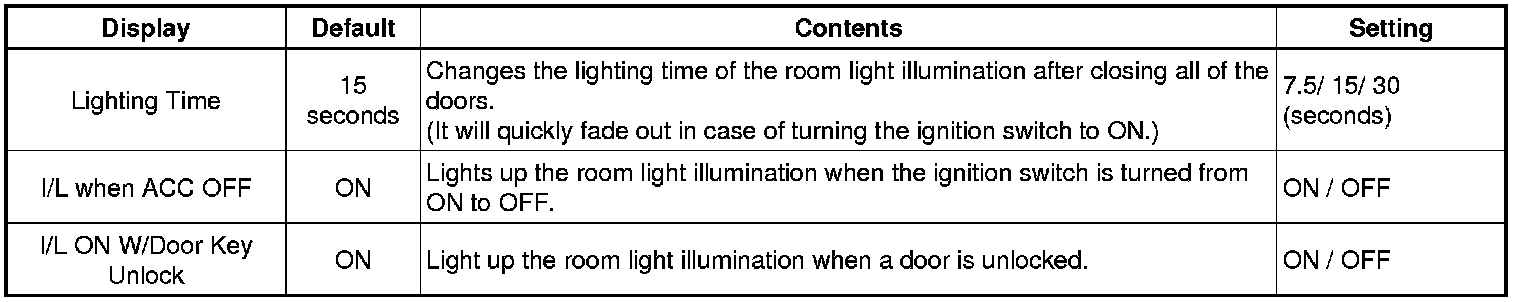

2. LIGHTING SYSTEM

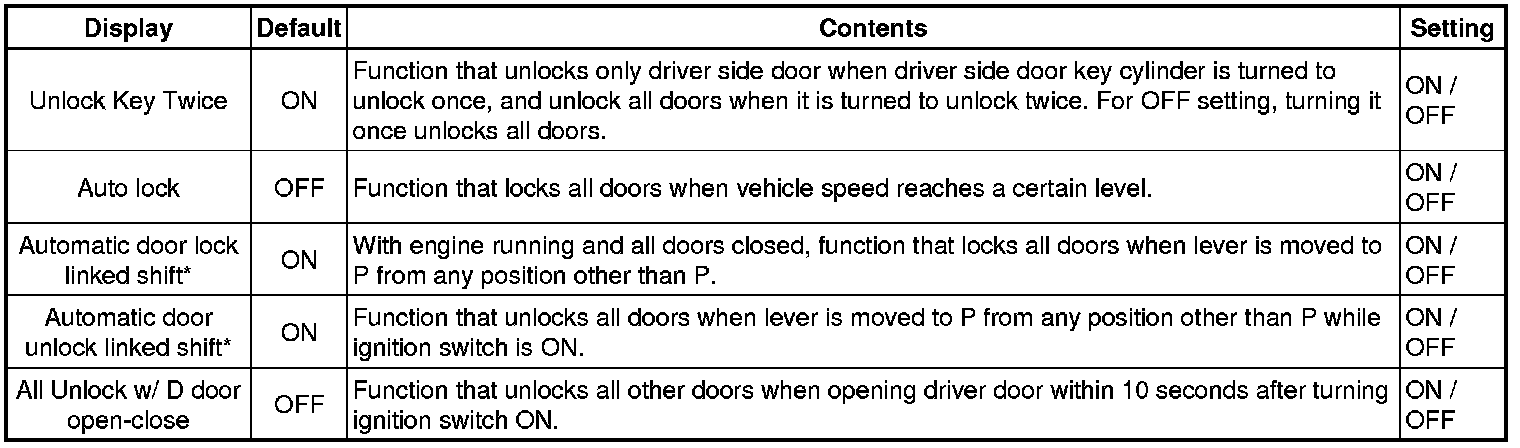

3. POWER DOOR LOCK CONTROL SYSTEM
*: for Automatic Transaxle

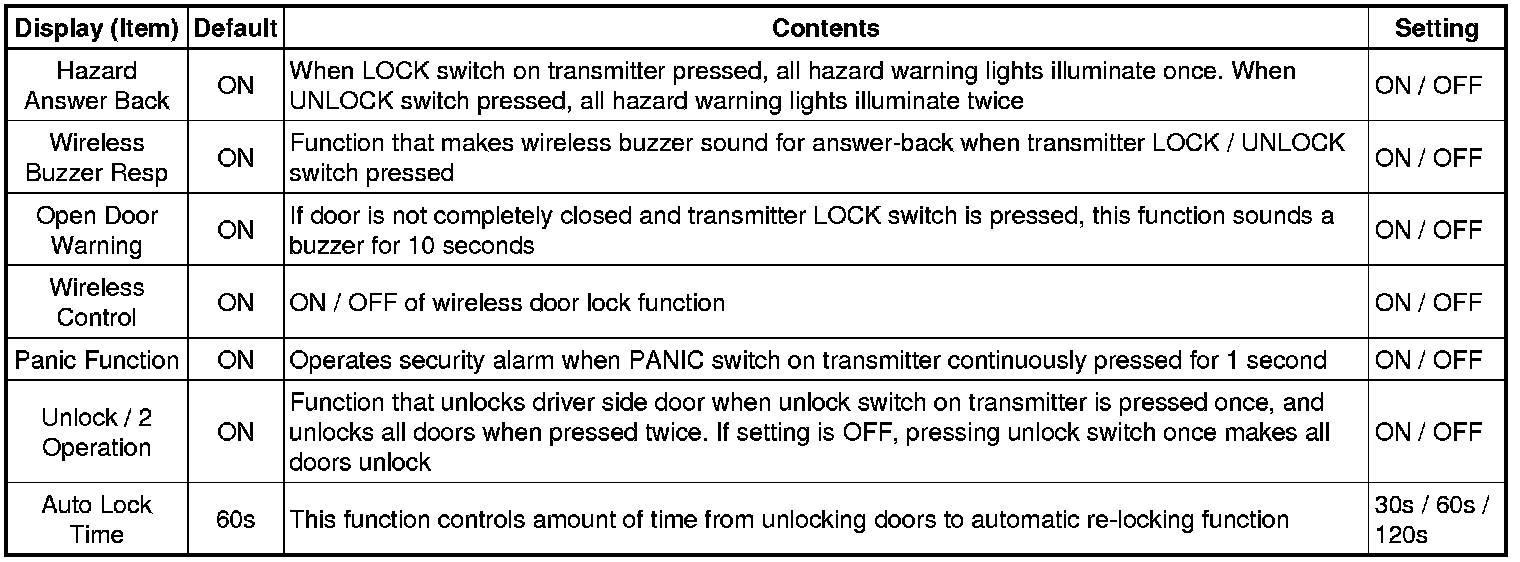

4. WIRELESS DOOR LOCK CONTROL SYSTEM

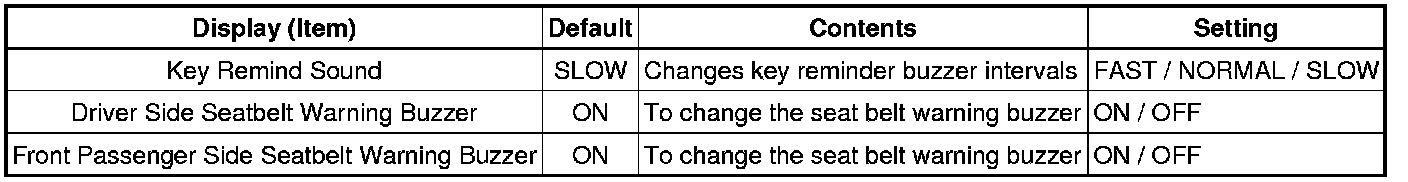

5. METER / GAUGE SYSTEM
