Removal
WINDSHIELD / WINDOW GLASS: REAR POWER WINDOW SWITCH: REMOVAL HINT * Use the same procedure for both the RH and LH side. * The procedure described below is for the RH side. 1.
REMOVE REAR DOOR ARMREST BASE UPPER PANEL
Disassembly 2.
REMOVE REAR
POWER WINDOW SWITCH (a)

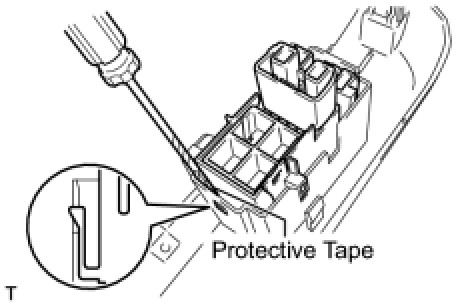

Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the rear
power window switch.
