Removal

WINDSHIELD / WINDOW GLASS: POWER WINDOW REGULATOR MOTOR: REMOVAL

HINT
* Use the same procedure for both the RH and LH sides.
* The procedure described below is for the RH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT ARMREST BASE UPPER PANEL Disassembly

3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH Disassembly

4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL Disassembly

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

6. REMOVE FRONT DOOR TRIM BRACKET Disassembly

7. REMOVE FRONT DOOR SERVICE HOLE COVER Disassembly

8. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY Disassembly

9. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY Disassembly

10. REMOVE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY





(a) Using "TORX" socket wrench T25, remove the 3 screws and the power window regulator motor.

11. REMOVE REAR DOOR ARMREST BASE UPPER PANEL Disassembly

12. REMOVE REAR DOOR INSIDE HANDLE BEZEL Disassembly

13. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

14. REMOVE REAR DOOR TRIM BRACKET Disassembly

15. REMOVE REAR DOOR SERVICE HOLE COVER Disassembly

16. REMOVE REAR DOOR GLASS RUN Disassembly

17. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

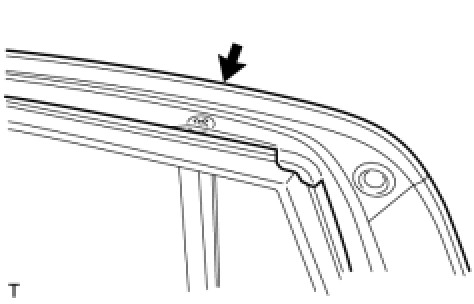

(a) Detach the rear window weatherstrip so that the screw can be removed from the upper section of the rear door window division bar.

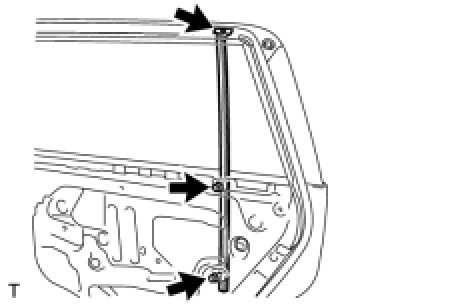

(b) Remove the 2 bolts, screw and rear door window division bar.





NOTICE:
Do not drop or damage the rear door window division bar when removing the bolts and screw.

18. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP Disassembly

19. REMOVE REAR DOOR GLASS SUB-ASSEMBLY Disassembly

20. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY Disassembly

21. REMOVE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY





(a) Using "TORX" socket wrench T25, remove the 3 screws and the power window regulator motor.
