Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

1. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY





(a) Disengage the 2 claws and remove the air duct.

2. REMOVE AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY





(a) Disengage the 3 claws and remove the air inlet damper control cable.

3. REMOVE FRONT BLOWER MOTOR





(a) Remove the 3 screws and the blower motor.

4. REMOVE BLOWER RESISTOR





(a) Remove the 2 screws and the blower resistor.

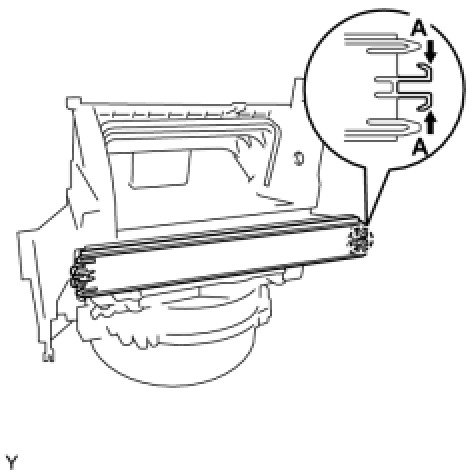

5. REMOVE AIR FILTER CASE





(a) Pinch portion A to disengage the claw and remove the air filter case.

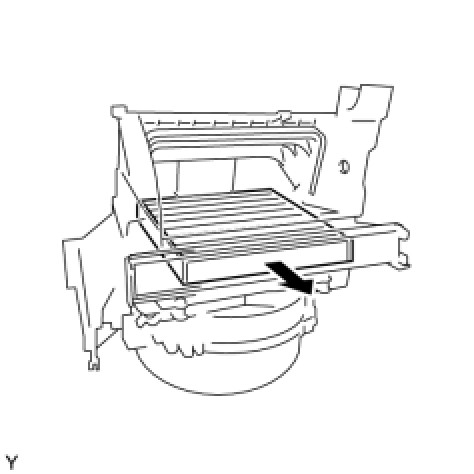

6. REMOVE CLEAN AIR FILTER (w/ Clean Air Filter)





(a) Remove the clean air filter from the blower unit.
