Fuse: Locations




Fuse Box Locations

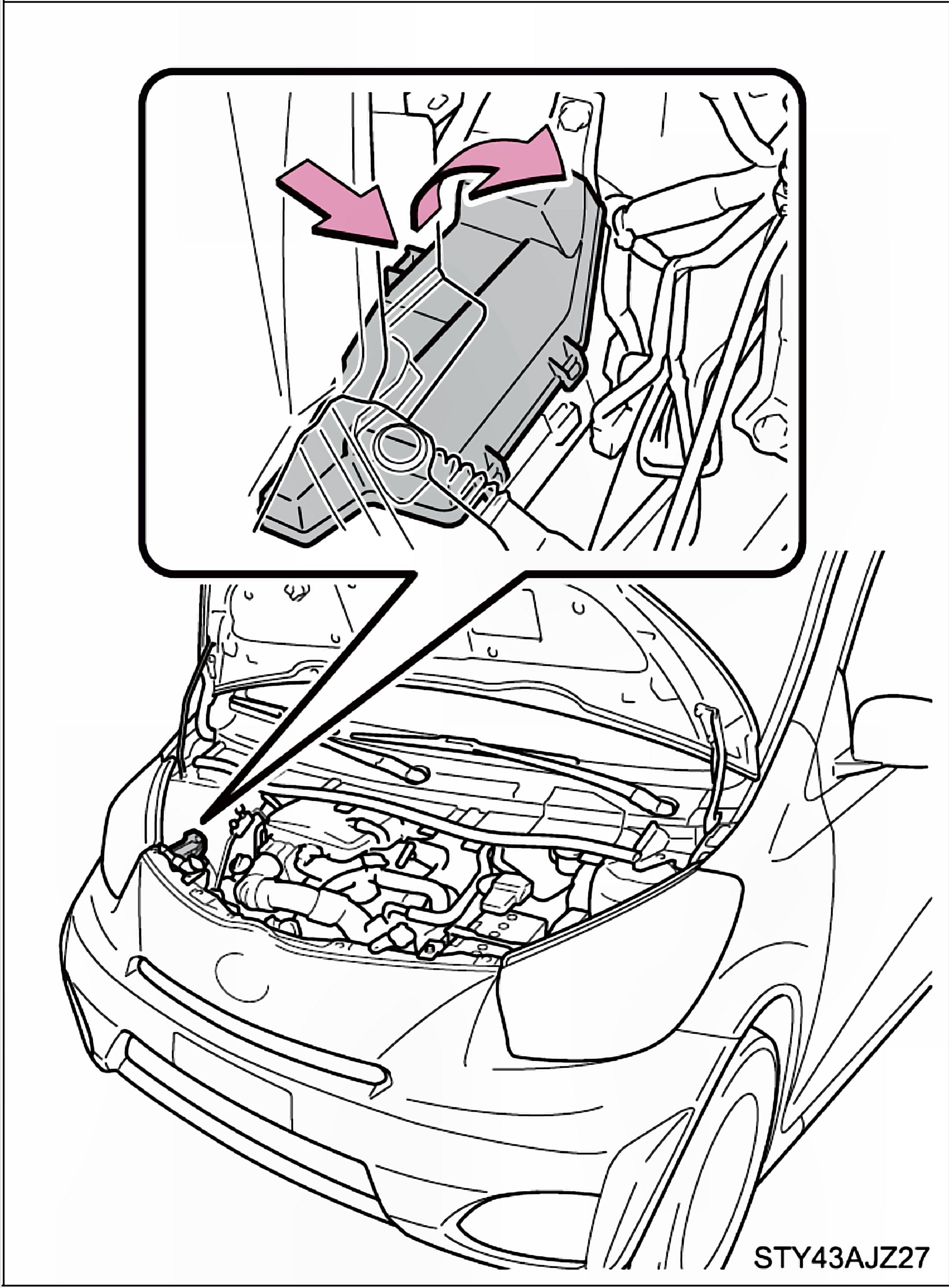

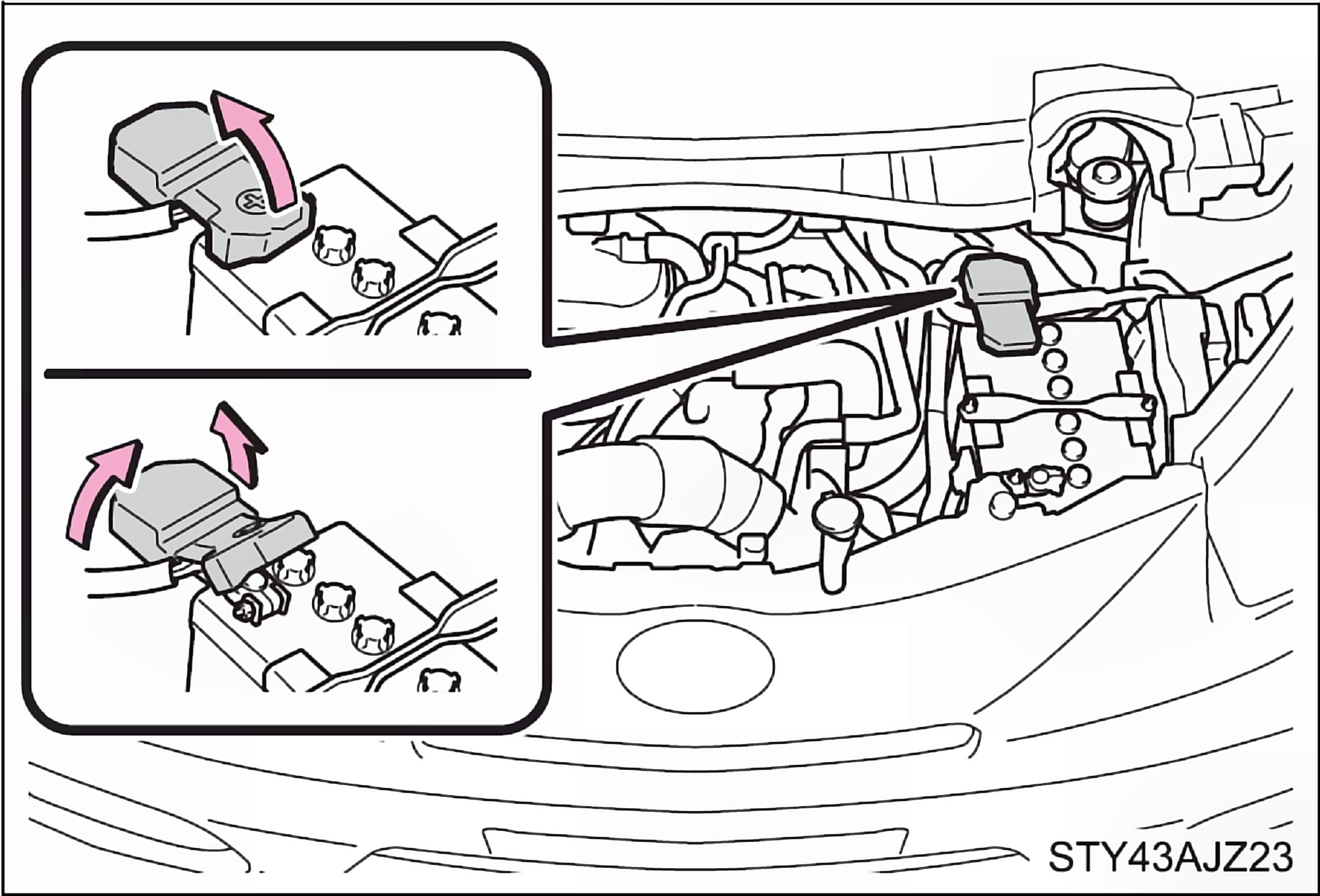

Engine Compartment (Type A):

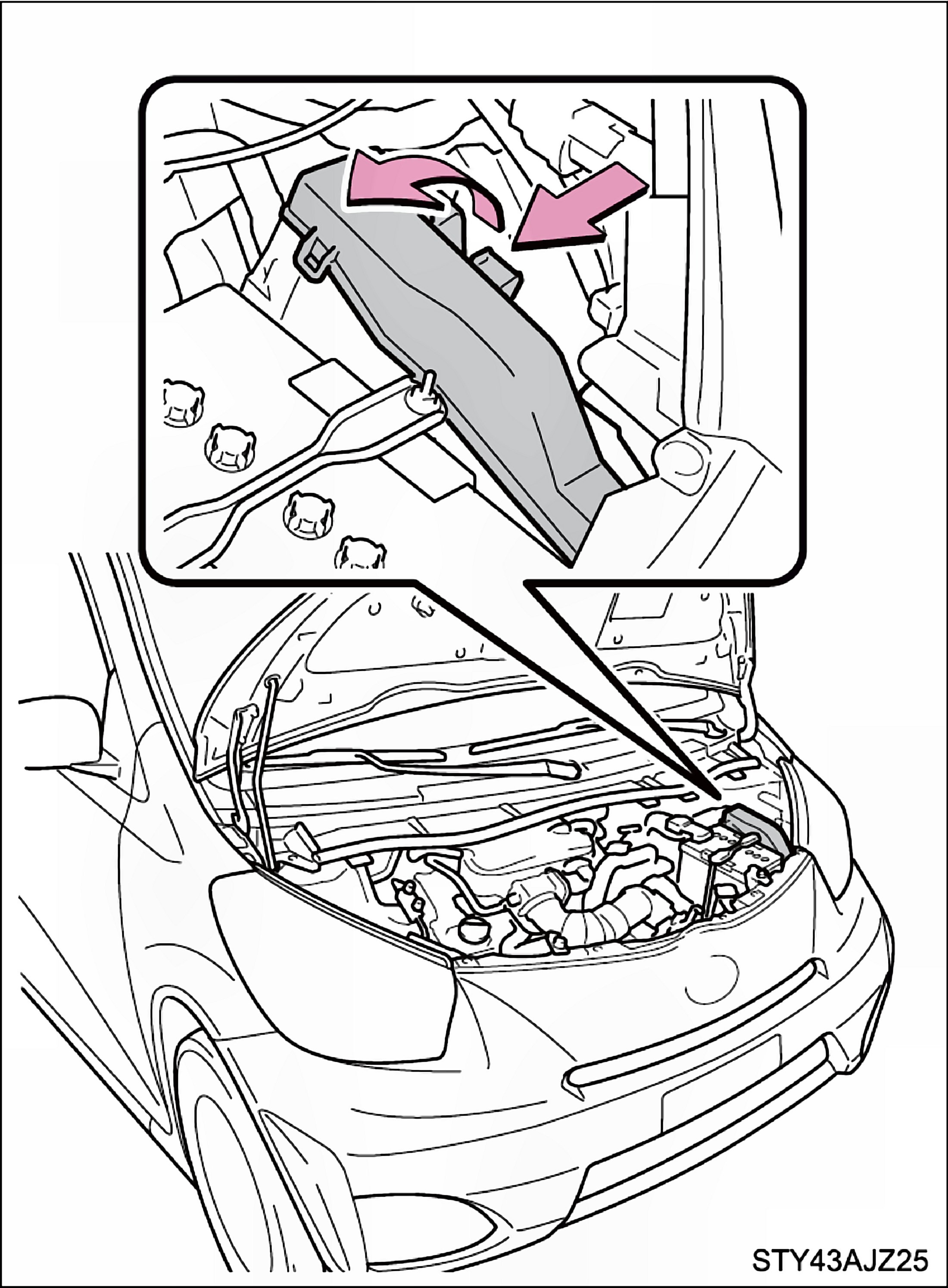

Engine Compartment (Type B):





Engine Compartment (Type C):

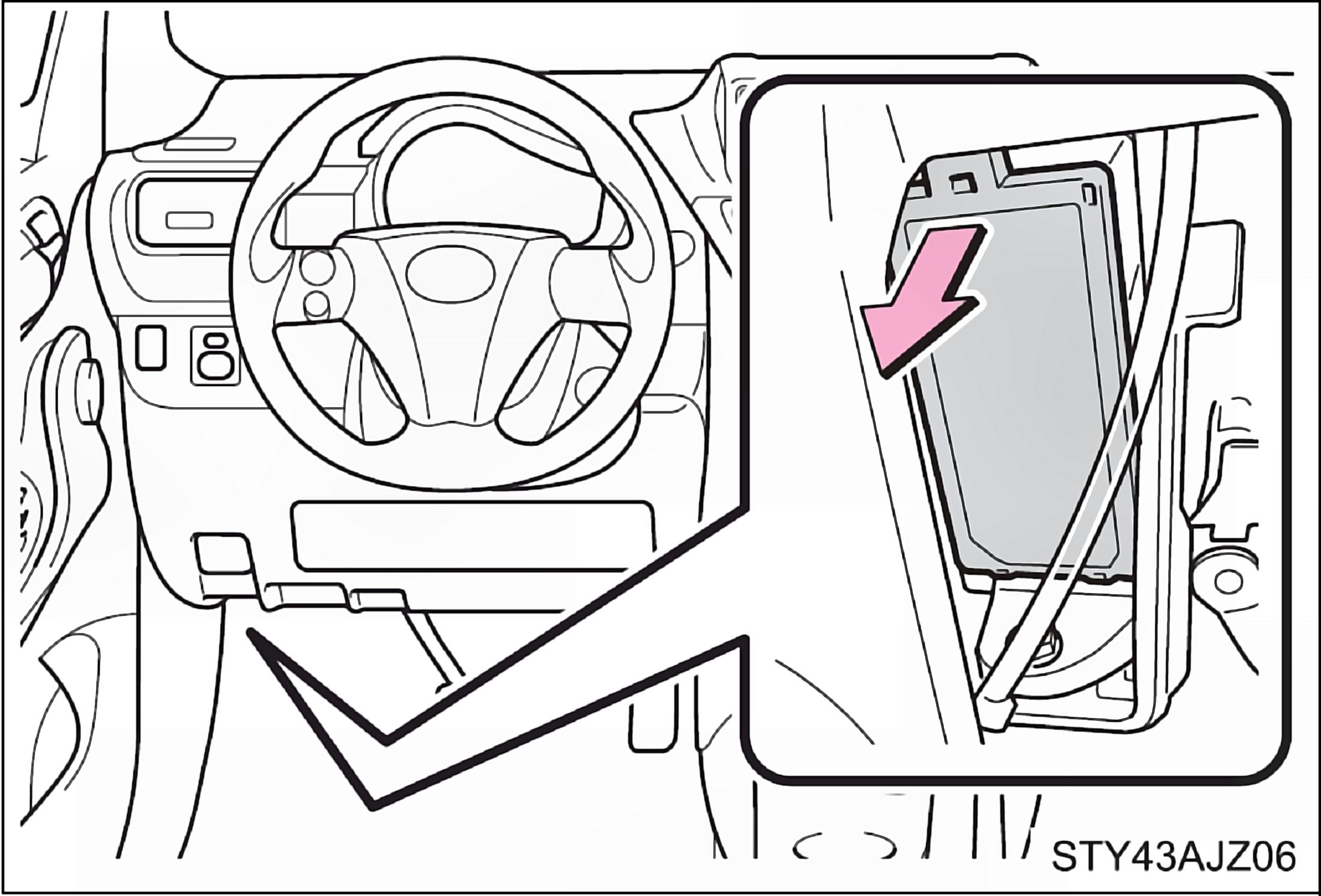

Driver's Side Instrument Panel:






Fuse Locations

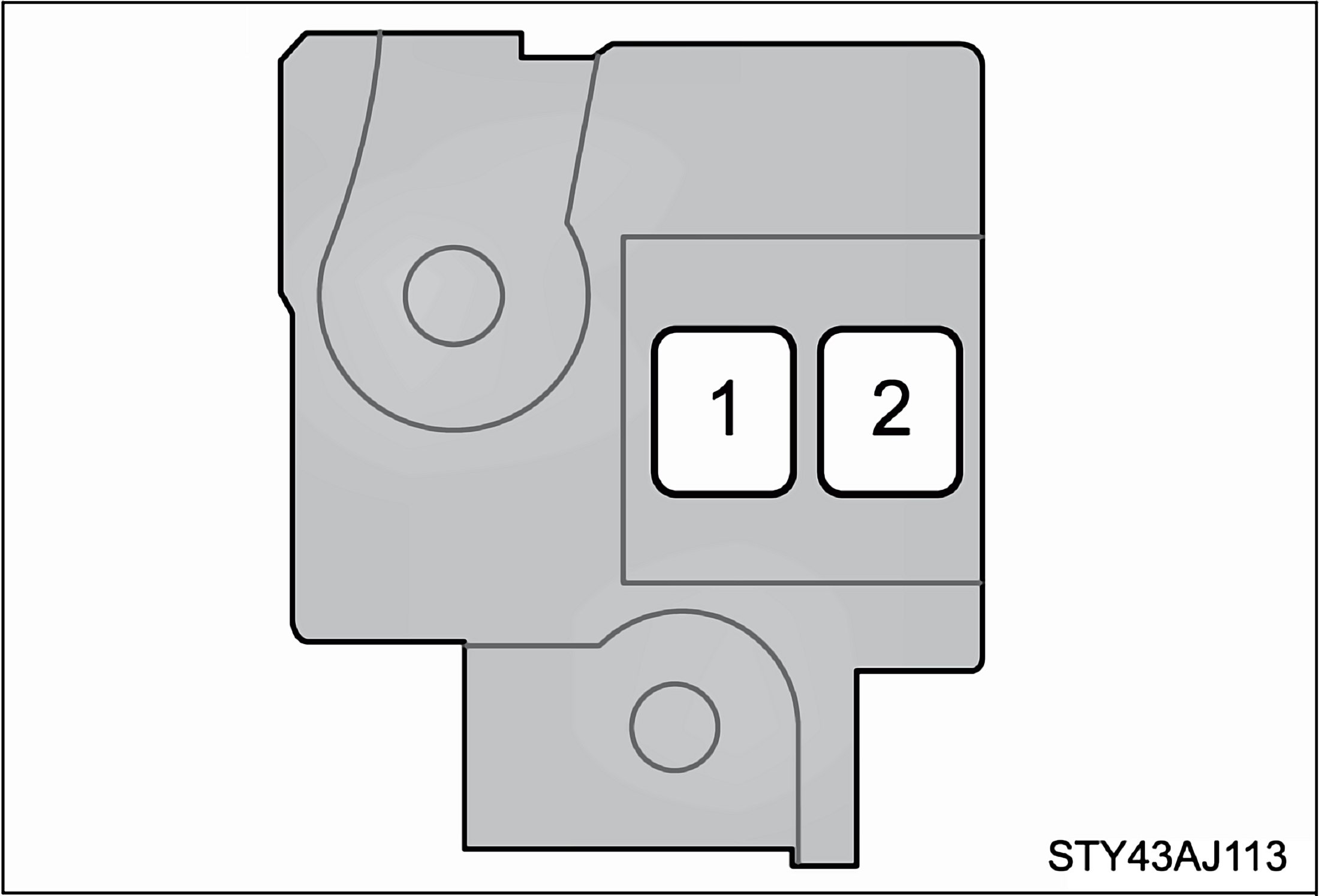

Engine Compartment (Type A):

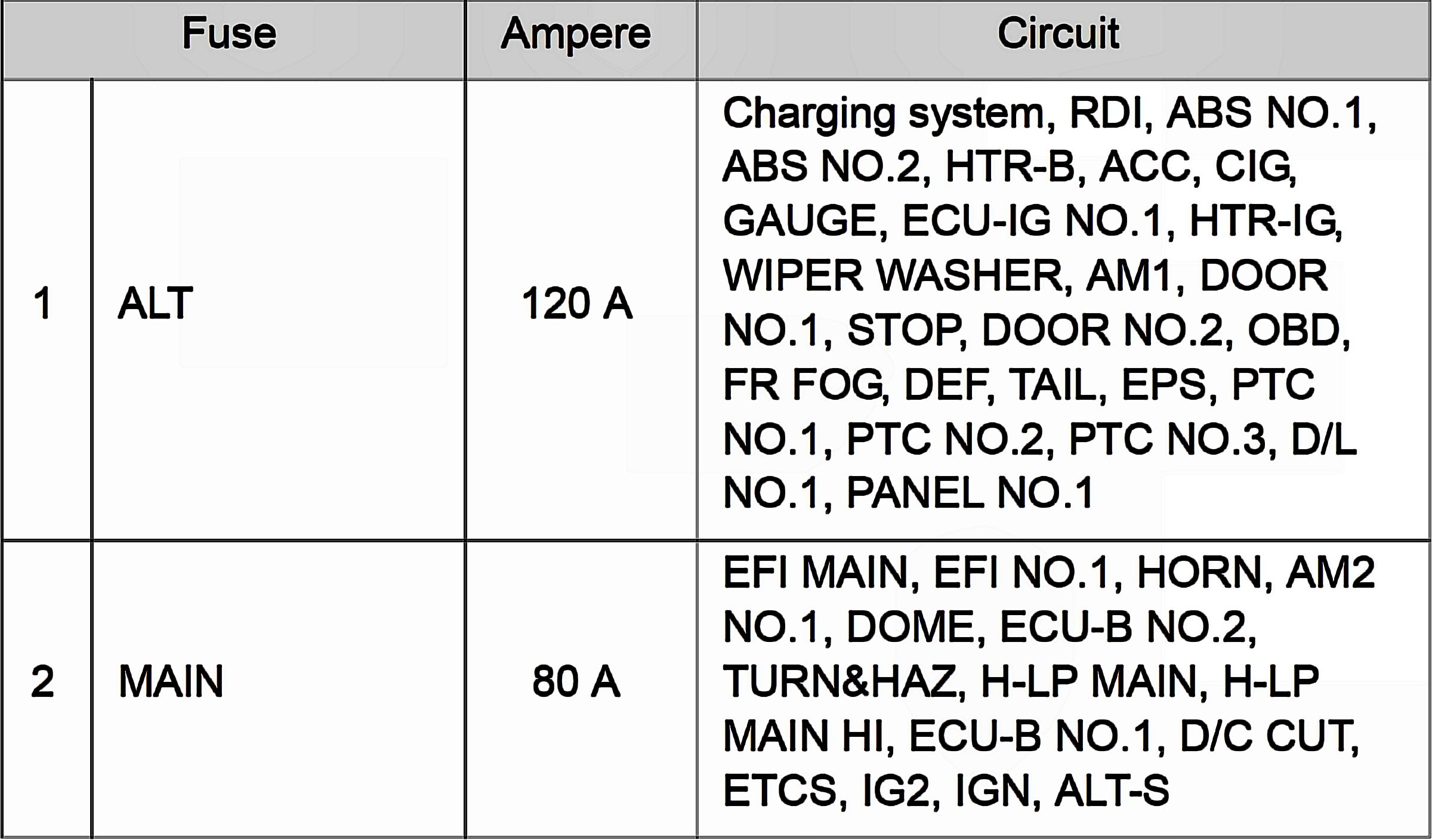

Fuses 1-2:

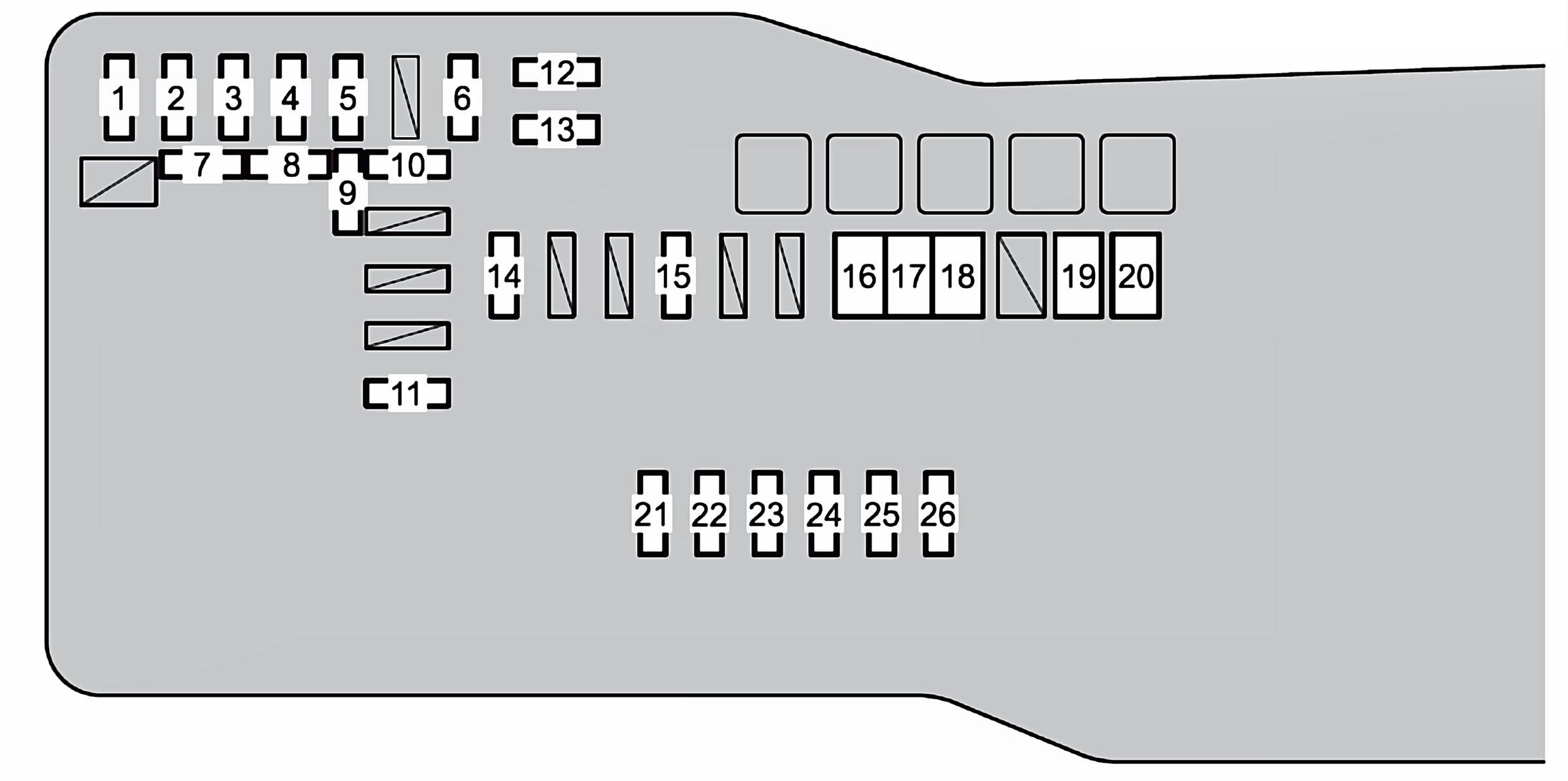

Engine Compartment (Type B):

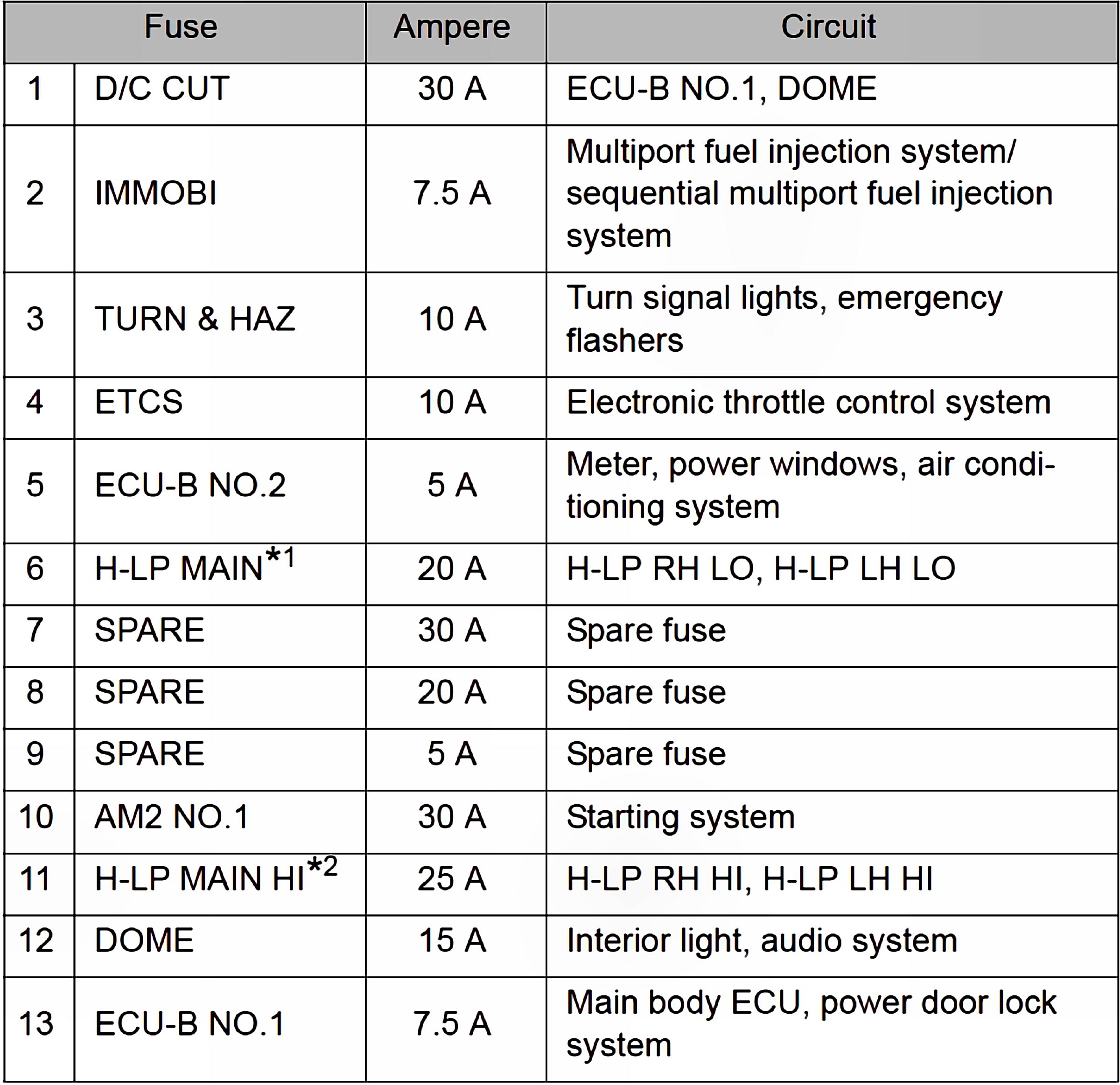

Fuses 1-13:

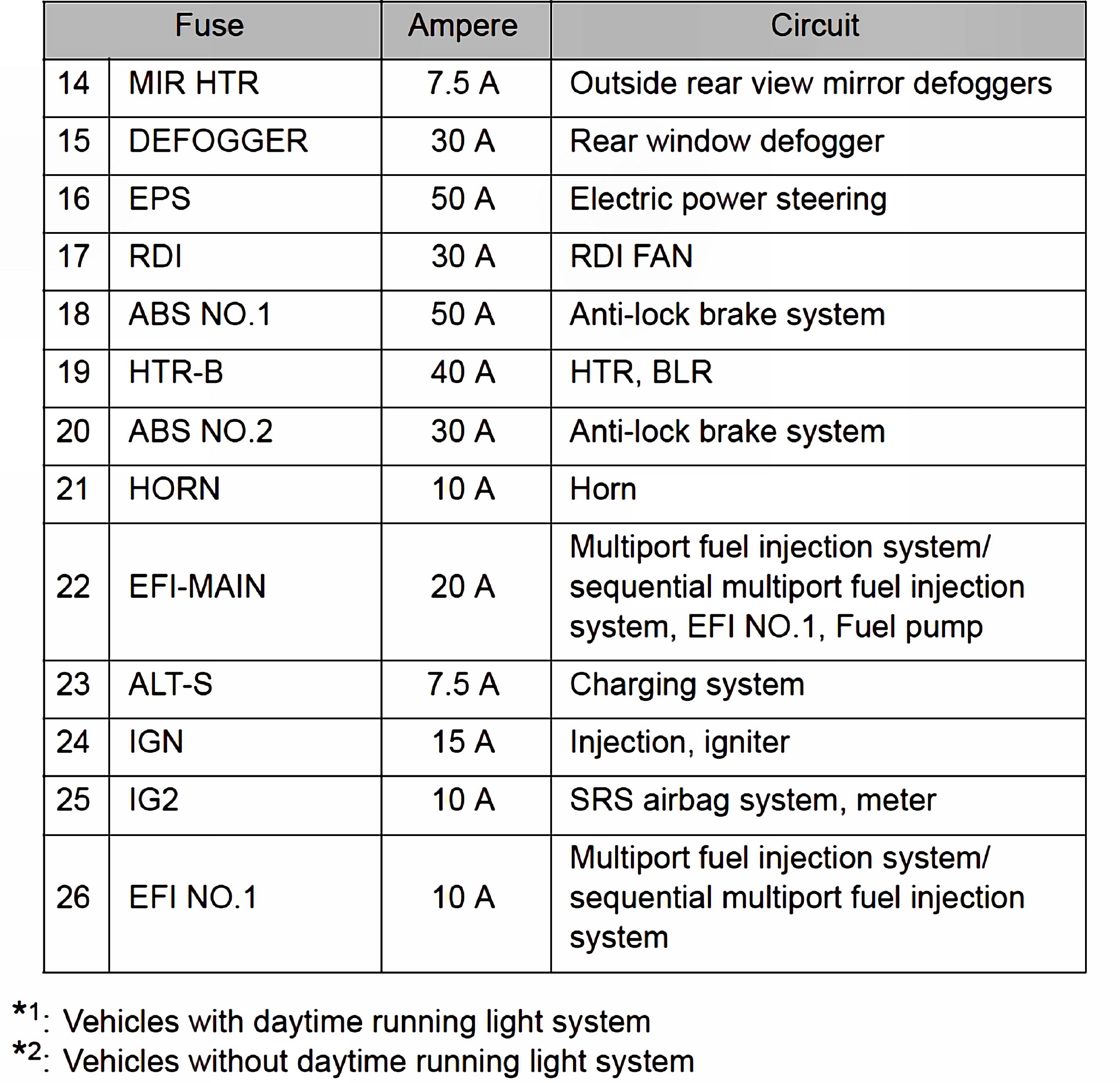

Fuses 14-26:

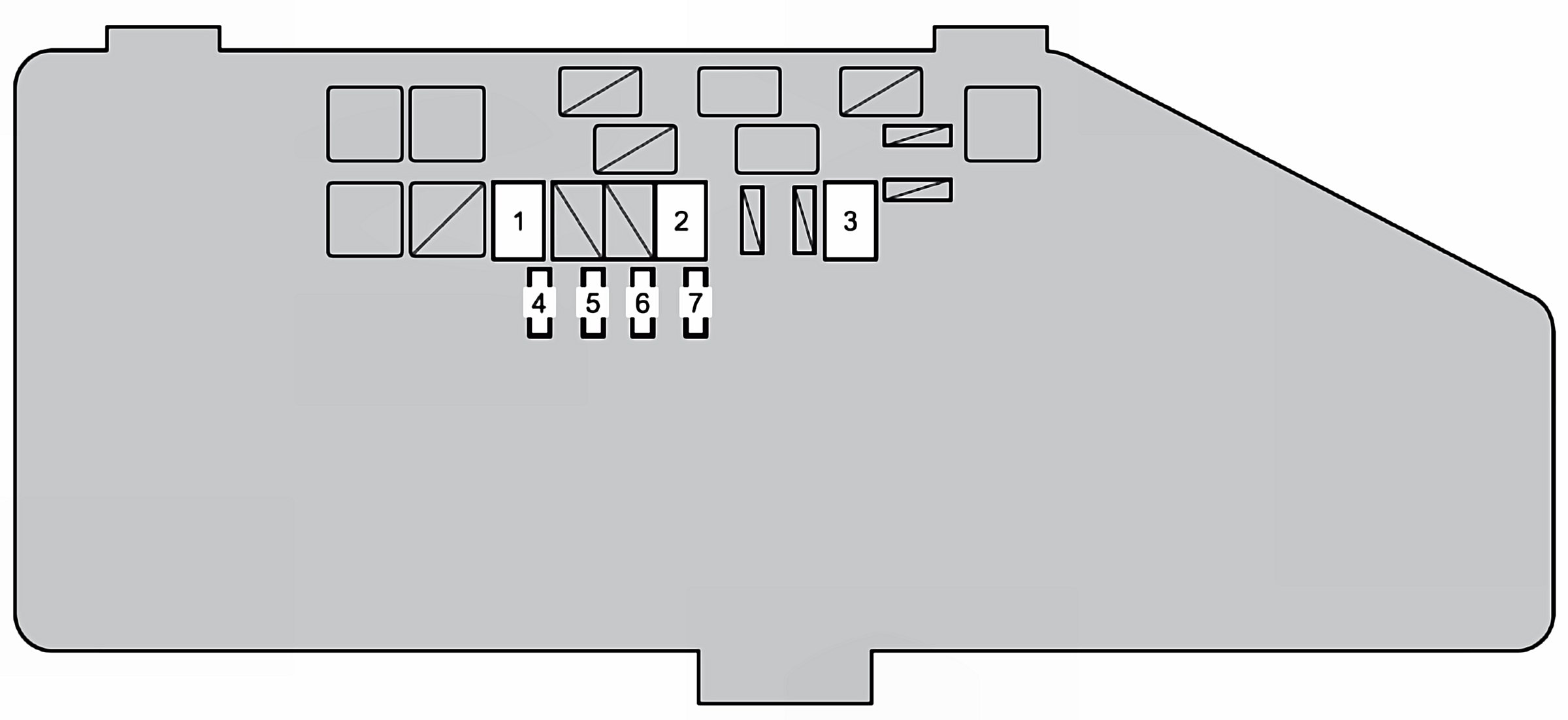

Engine Compartment (Type C):

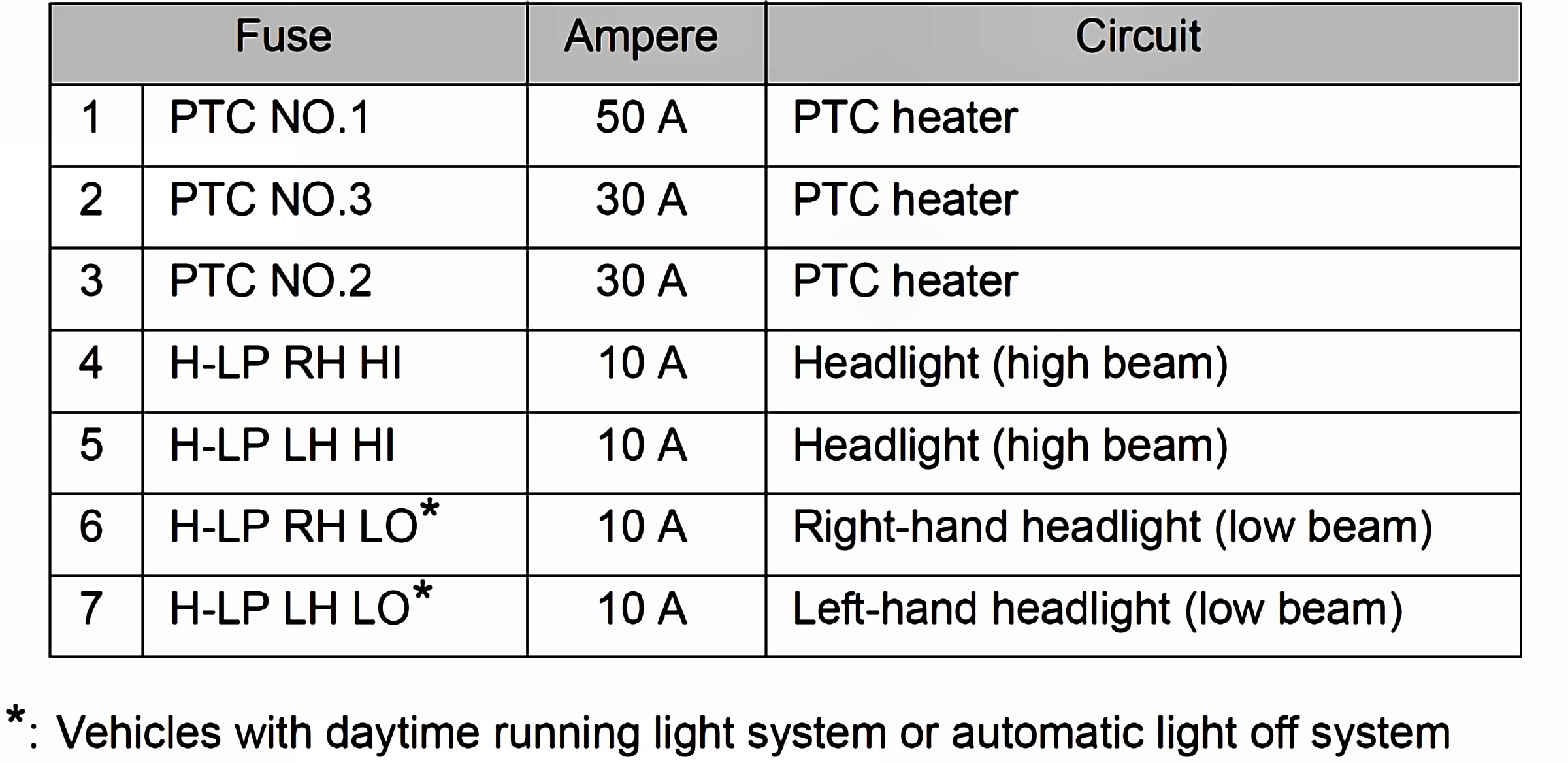

Fuses 1-7:

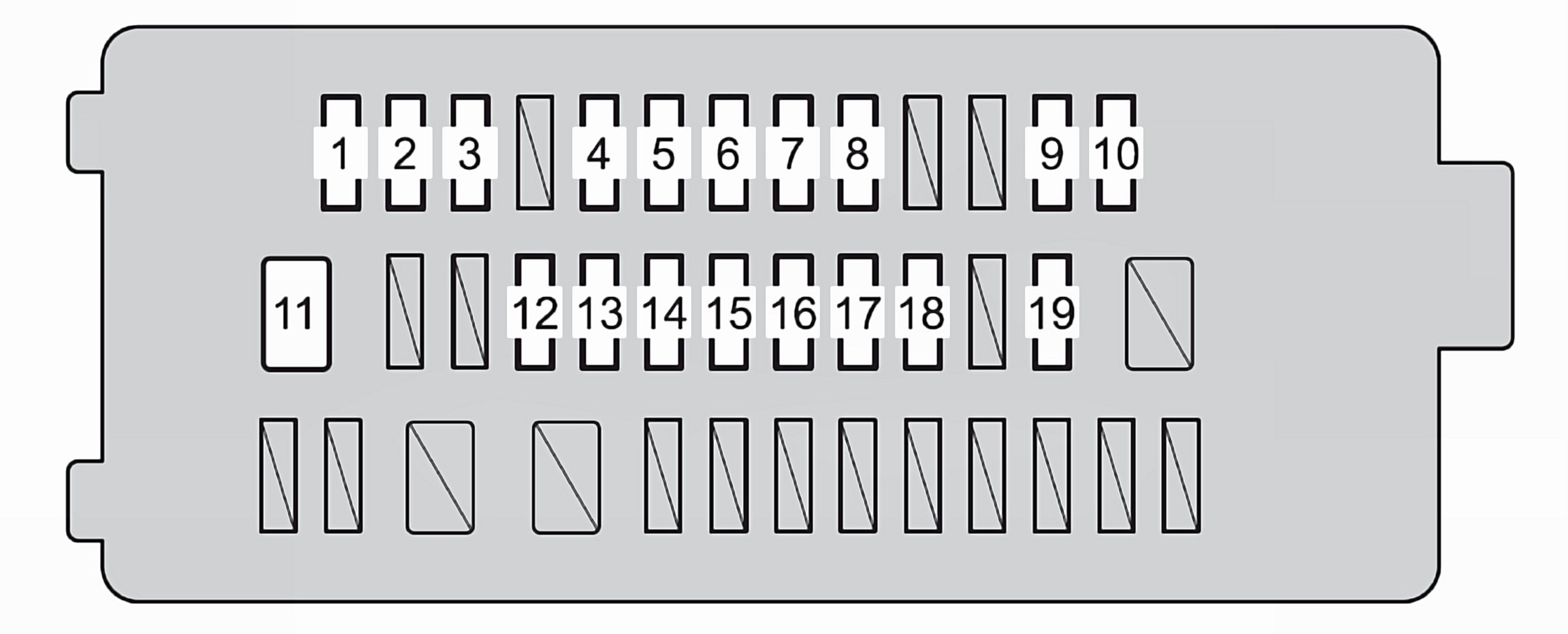

Driver's Side Instrument Panel:

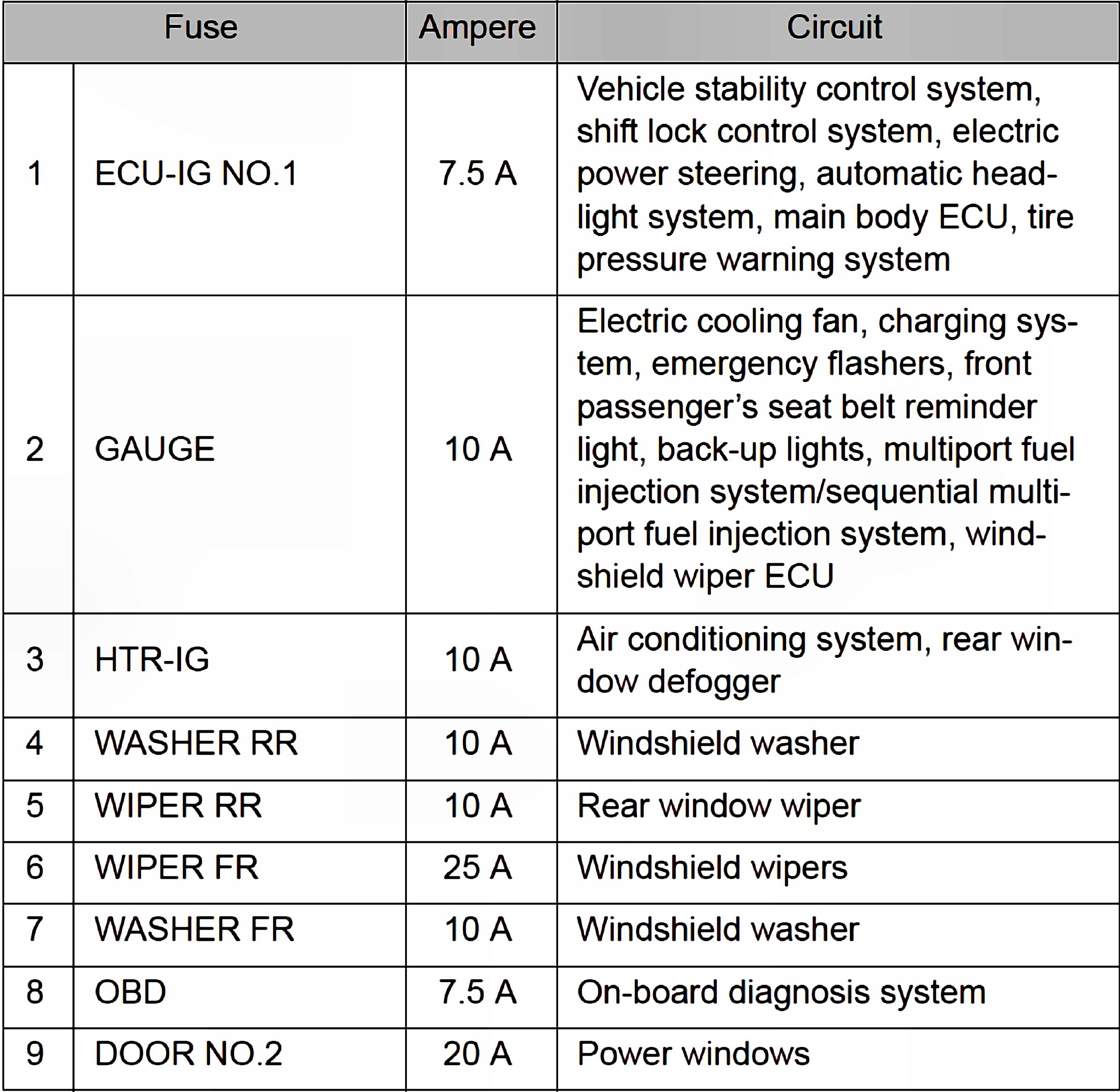

Fuses 1-9:





Fuses 10-19:
