Fuse Box Locations/Fuse Locations




Fuse Box Locations

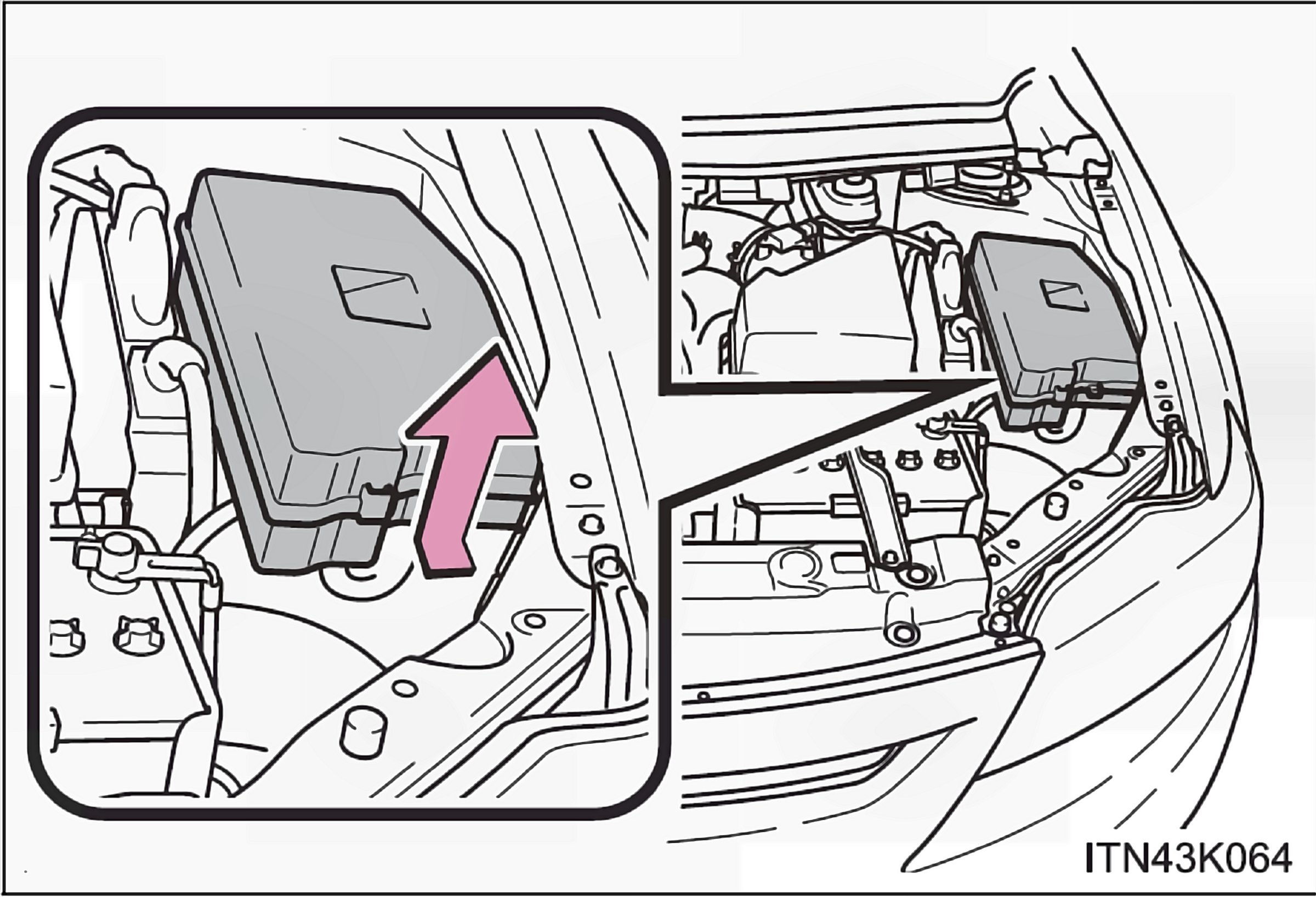

Engine Compartment Fuse Box:

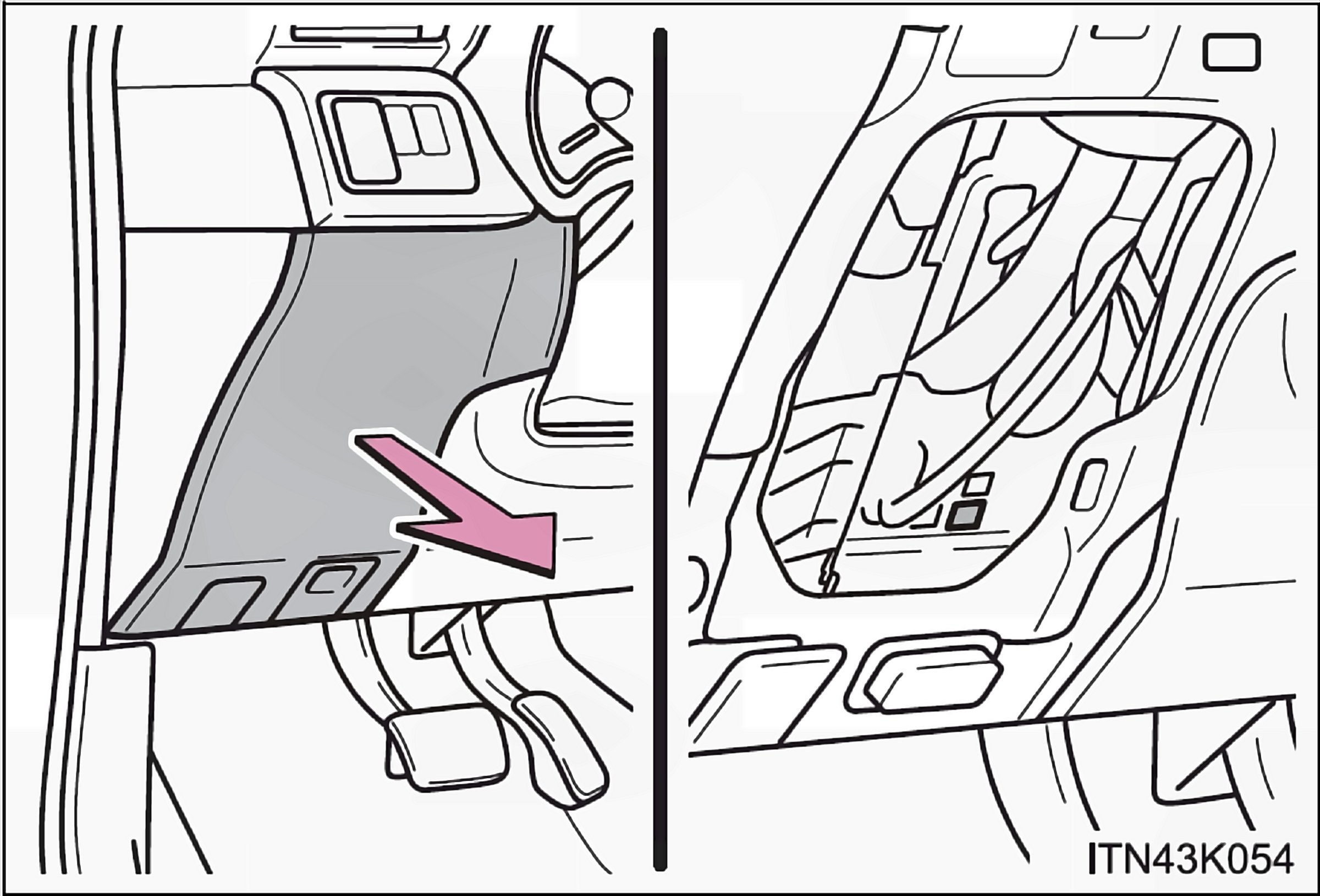

Under Driver's Side Instrument Panel Fuse Box:

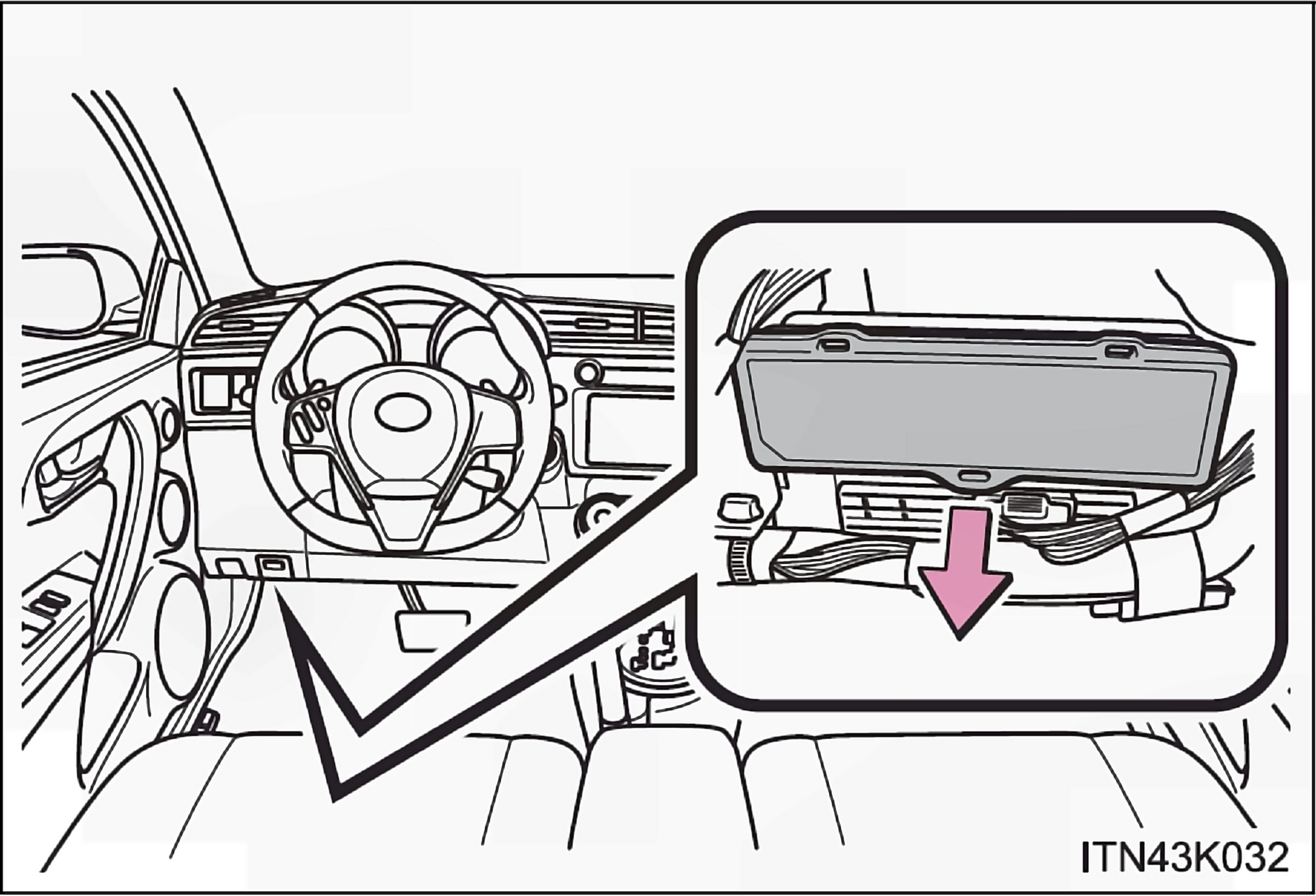

Driver's Side Instrument Panel Fuse Box:






Fuse Locations

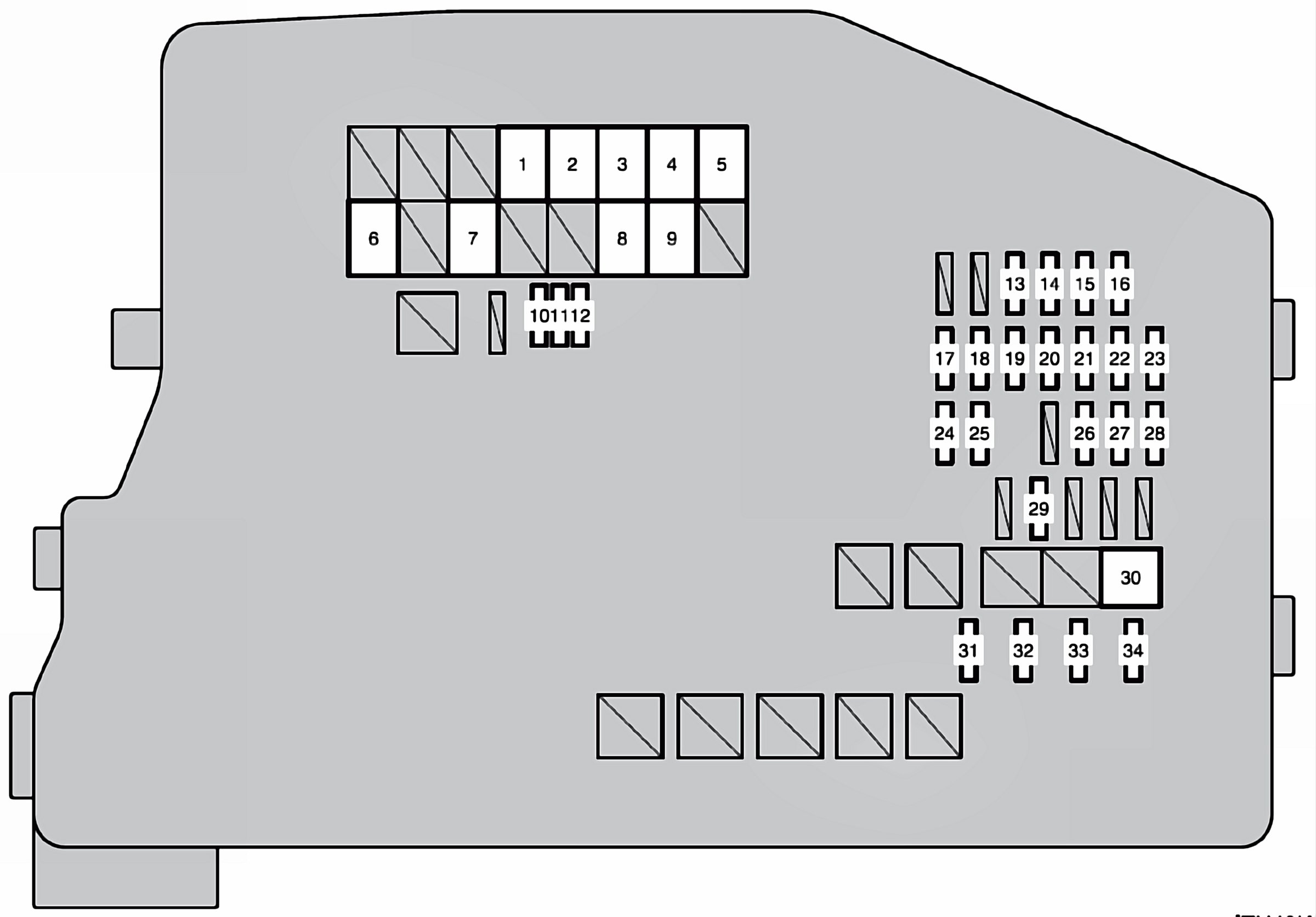

Engine Compartment:

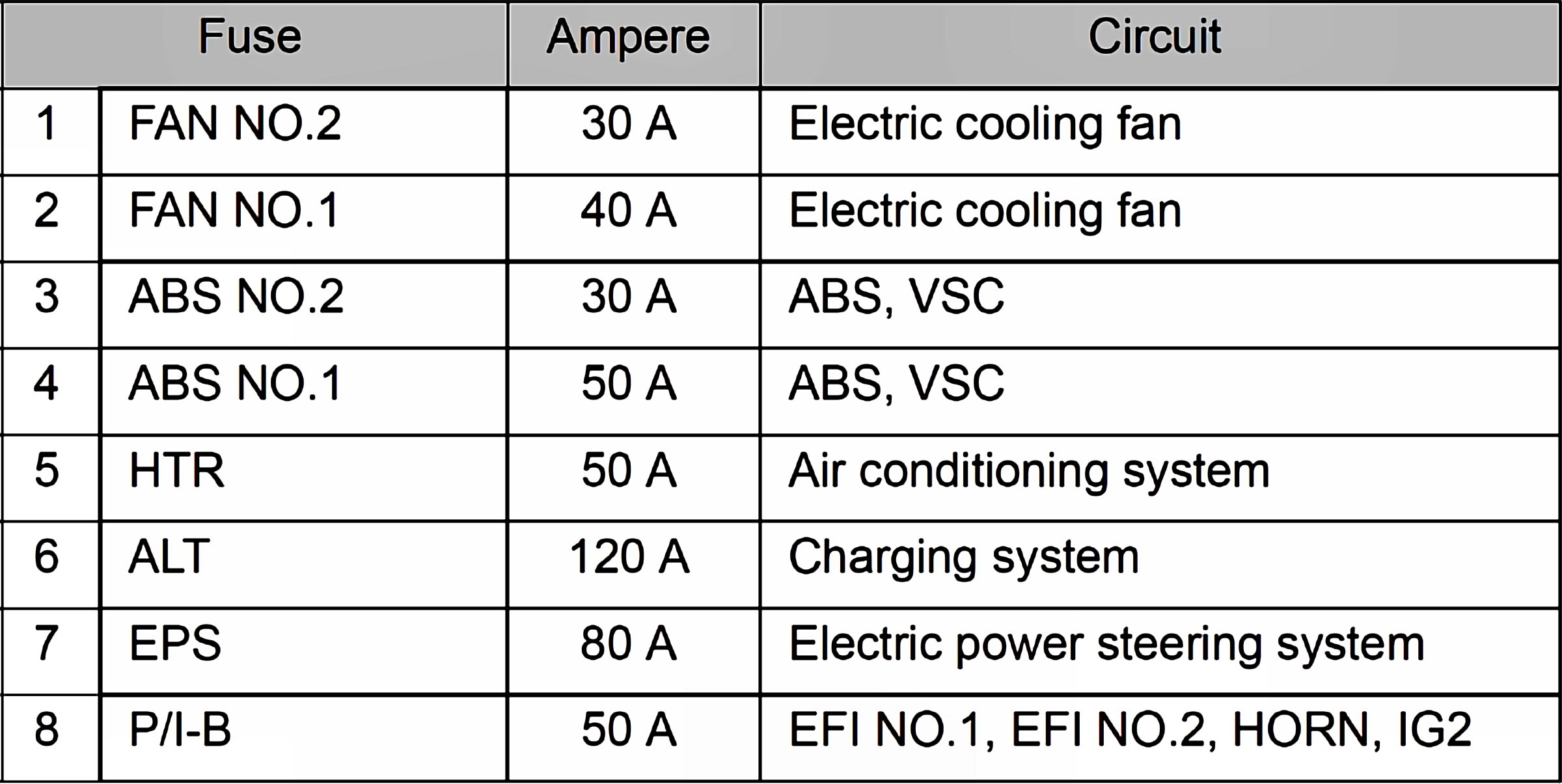

Fuses 1-8:

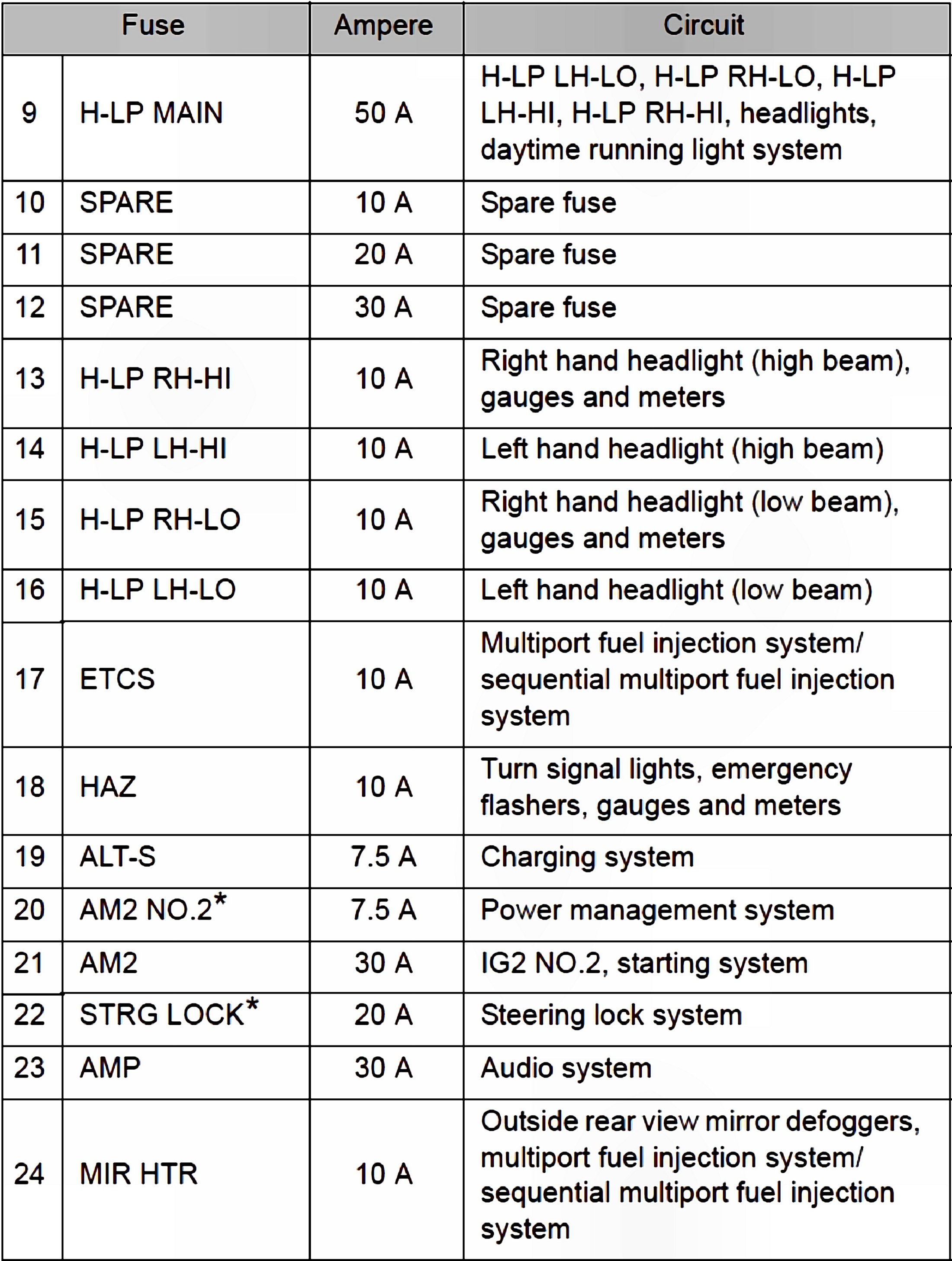

Fuses 9-24:

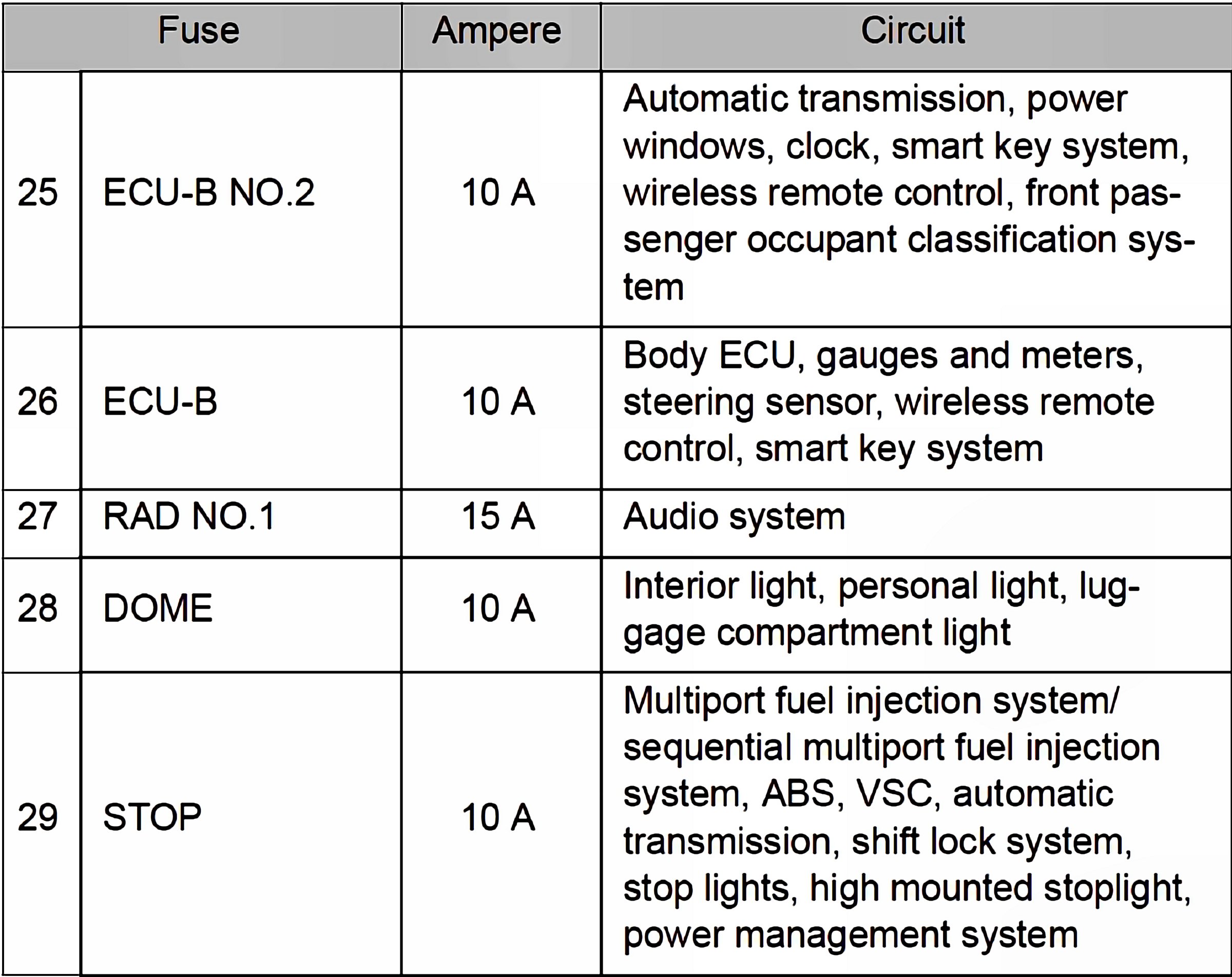

Fuses 25-29:

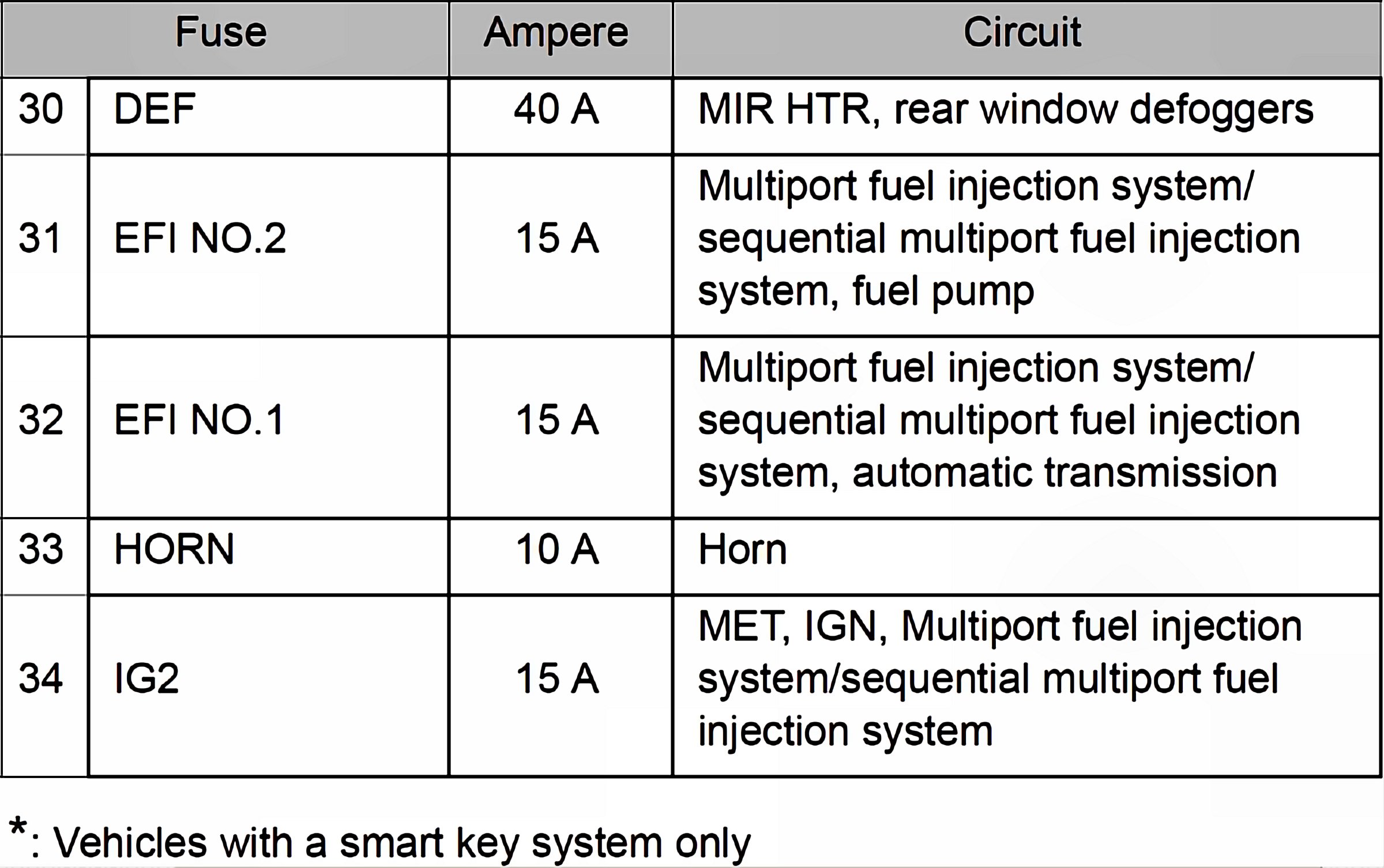

Fuses 30-34:






Under Driver's Side Instrument Panel:





Fuses 1-13:

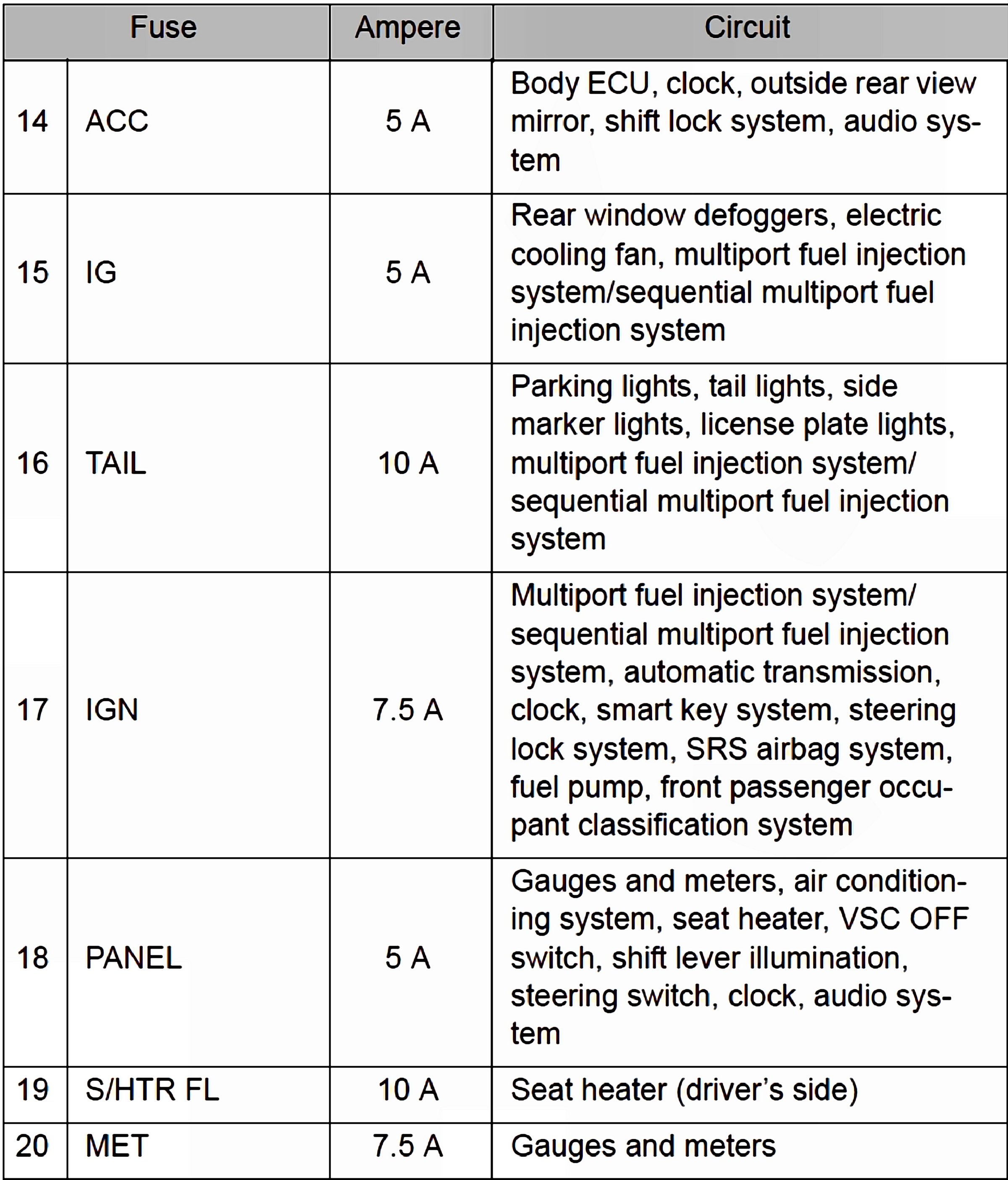

Fuses 14-20:

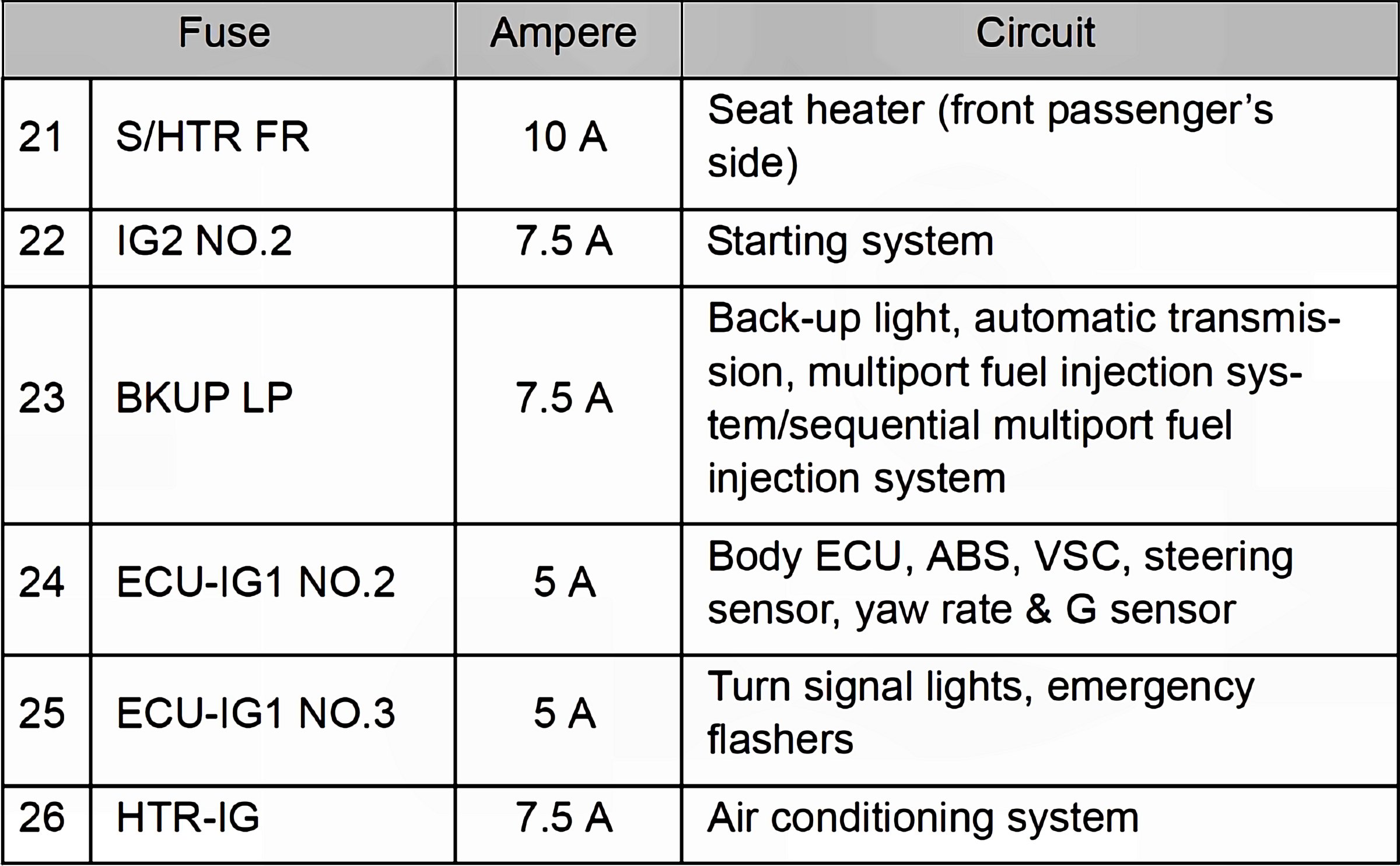

Fuses 21-26:






Driver's Side Instrument Panel:
