Maintenance Required Lamp/Indicator: Service and Repair











After changing the engine oil (U.S.A. only)

The engine oil maintenance data should be reset. Perform the following procedures:
1. Switch the display to the odometer.
2. Turn the engine switch to the "LOCK" position.

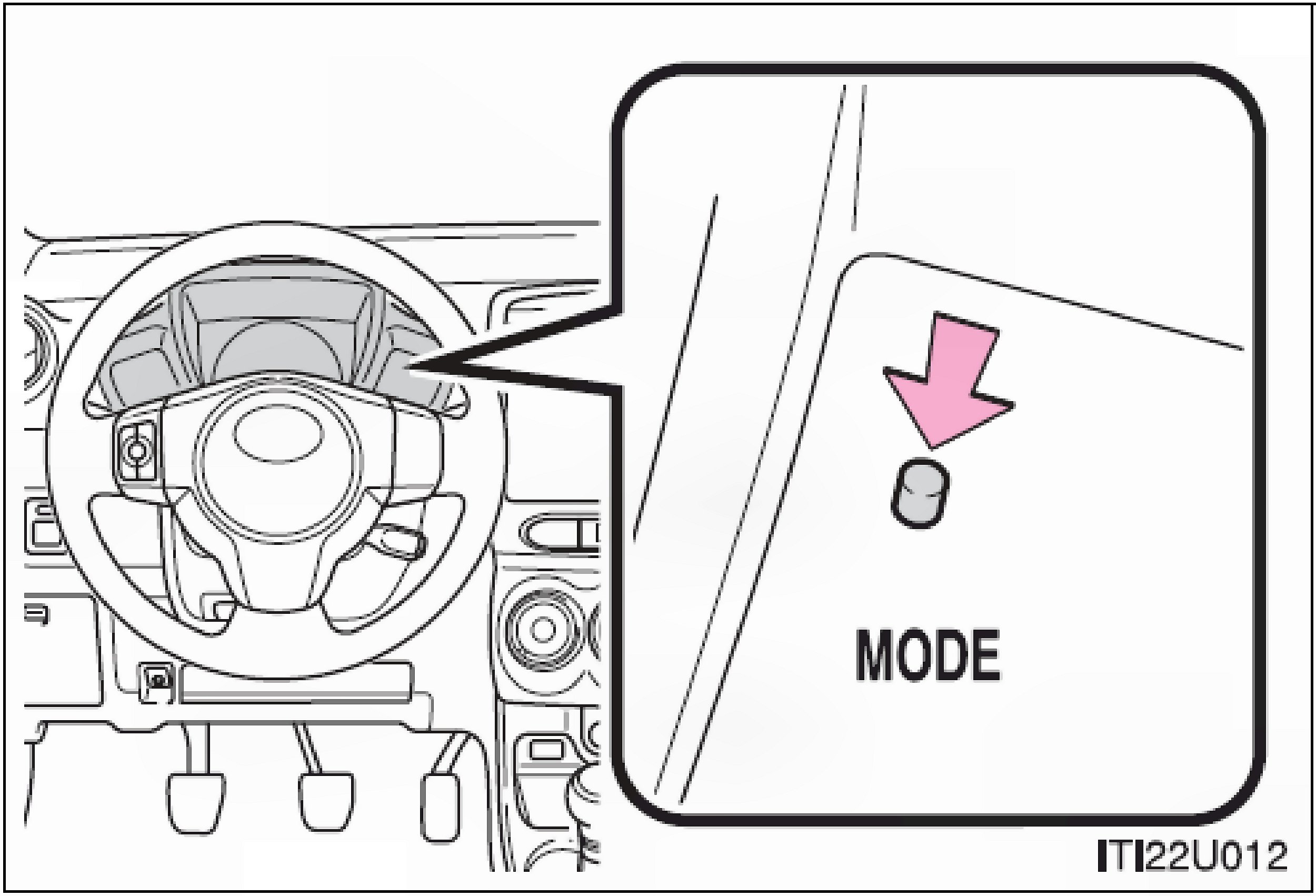

3. While pressing the "MODE" button, turn the engine switch to the "ON" position (but do not start the engine because otherwise the reset mode will be canceled). Continue to press and hold the button until the trip meter displays "000000".
