Steering Column Exploded View W/Manual Steering
Steering Column Exploded View W/Manual Steering

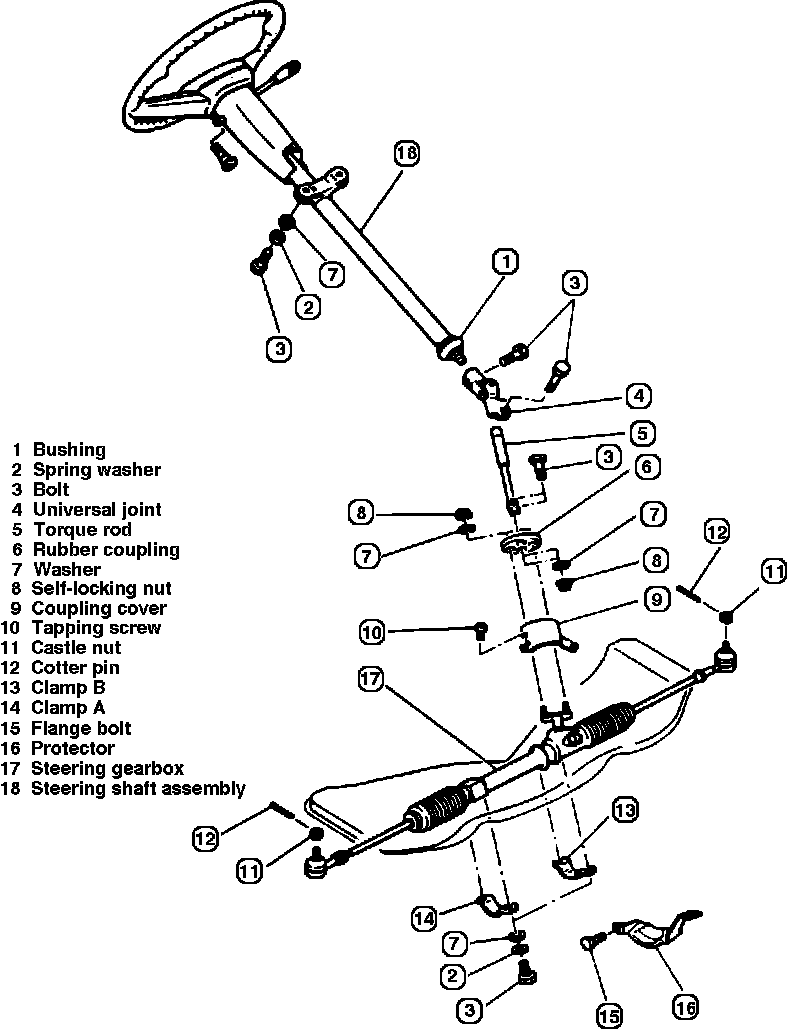

Fig. 1 Exploded view of steering column. models w/manual steering:
