Steering Column Exploded View W/Power Steering
Steering Column Exploded View W/Power Steering

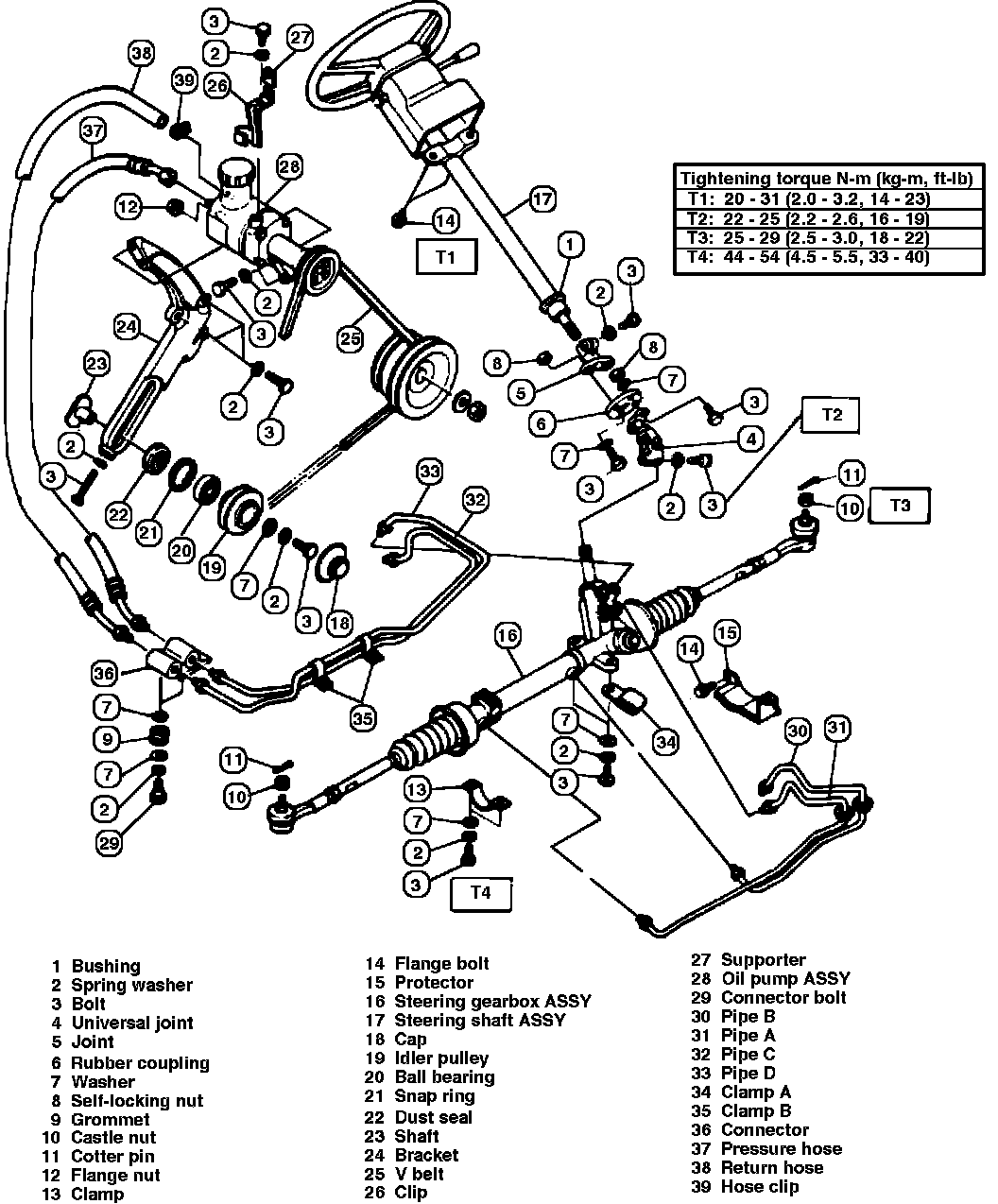

Fig. 2 Exploded view of steering column. models w/power steering:
