Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1984
>>
Brat F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Full Close Switch
>>
Testing and Inspection
Throttle Full Close Switch: Testing and Inspection

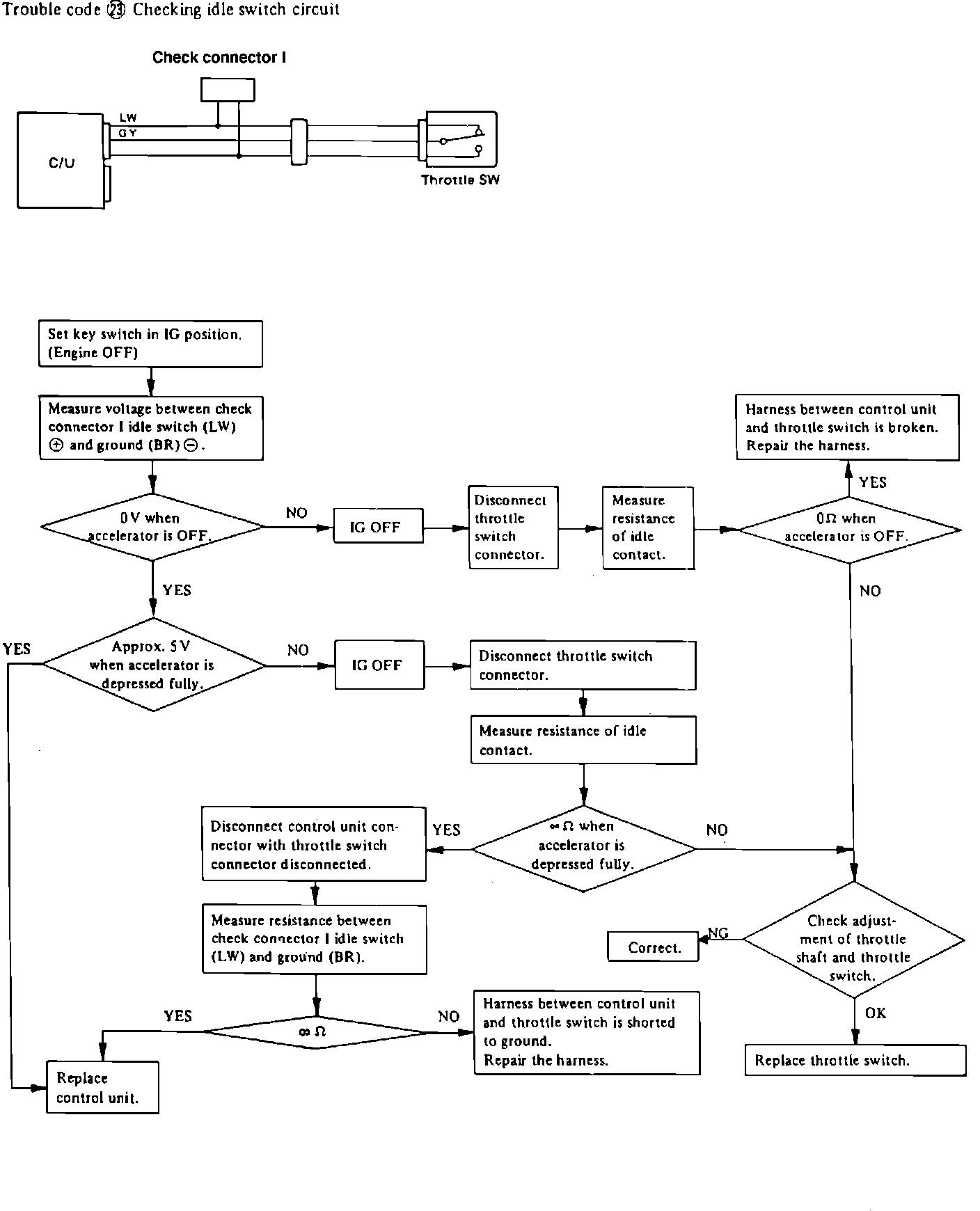

Fig.11 EGI system troubleshooting chart. Trouble code 23. Checking idle switch circuit.:
