M/T Technical Data

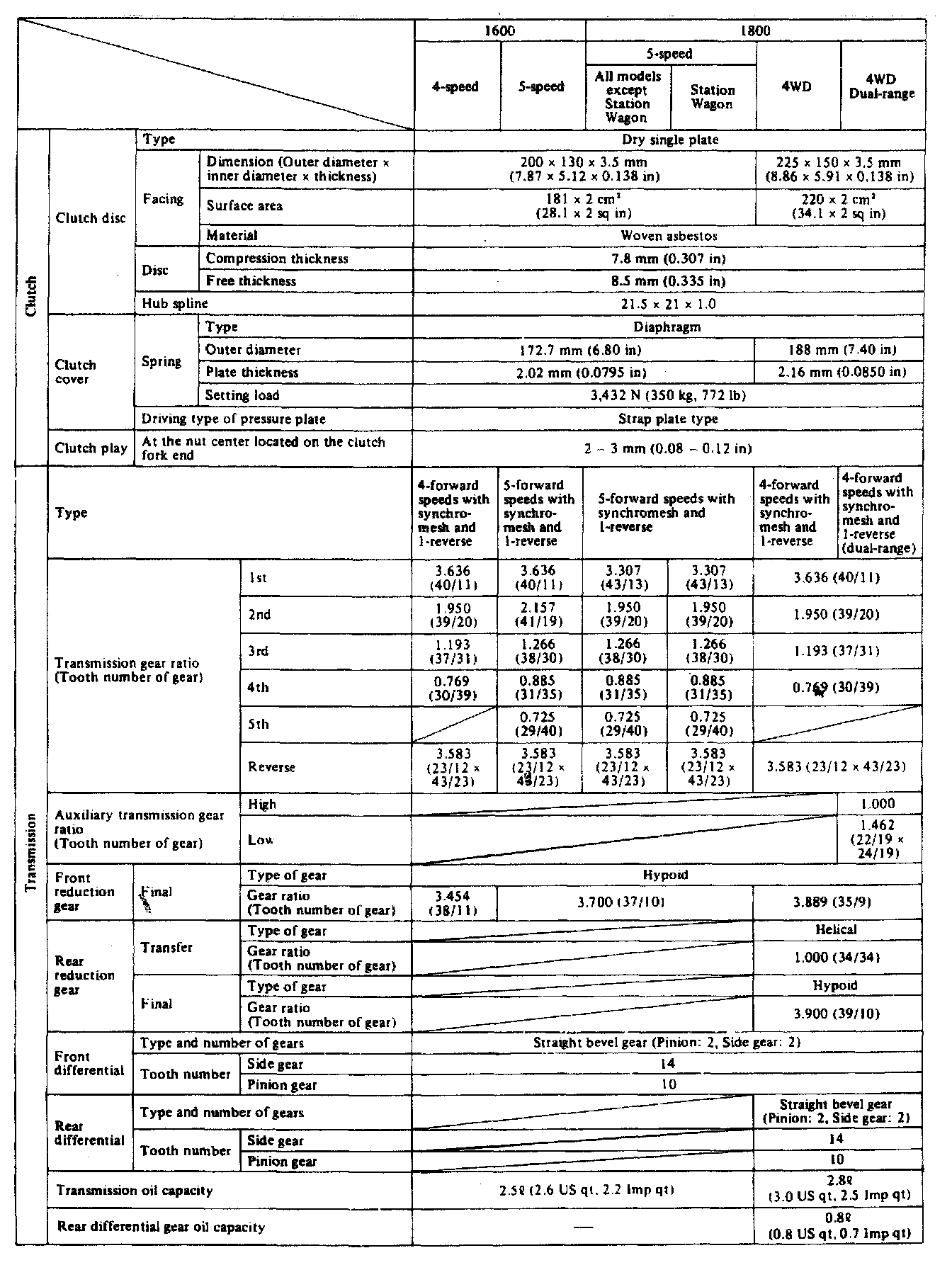

4/5 Spd M/T, Transmission Service Data:

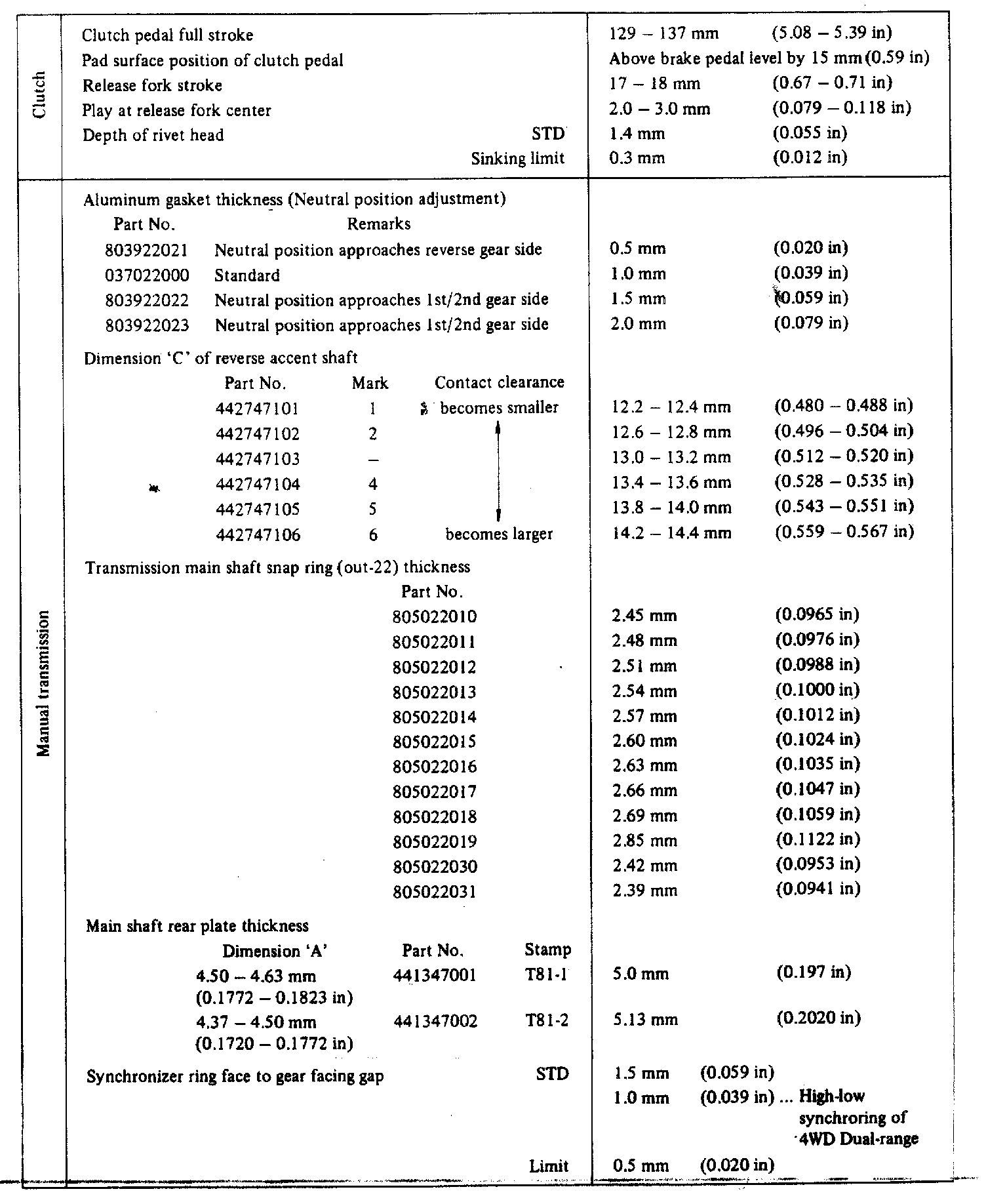

4/5 Spd M/T, Clutch & Transmission Clearances/Tolerances:

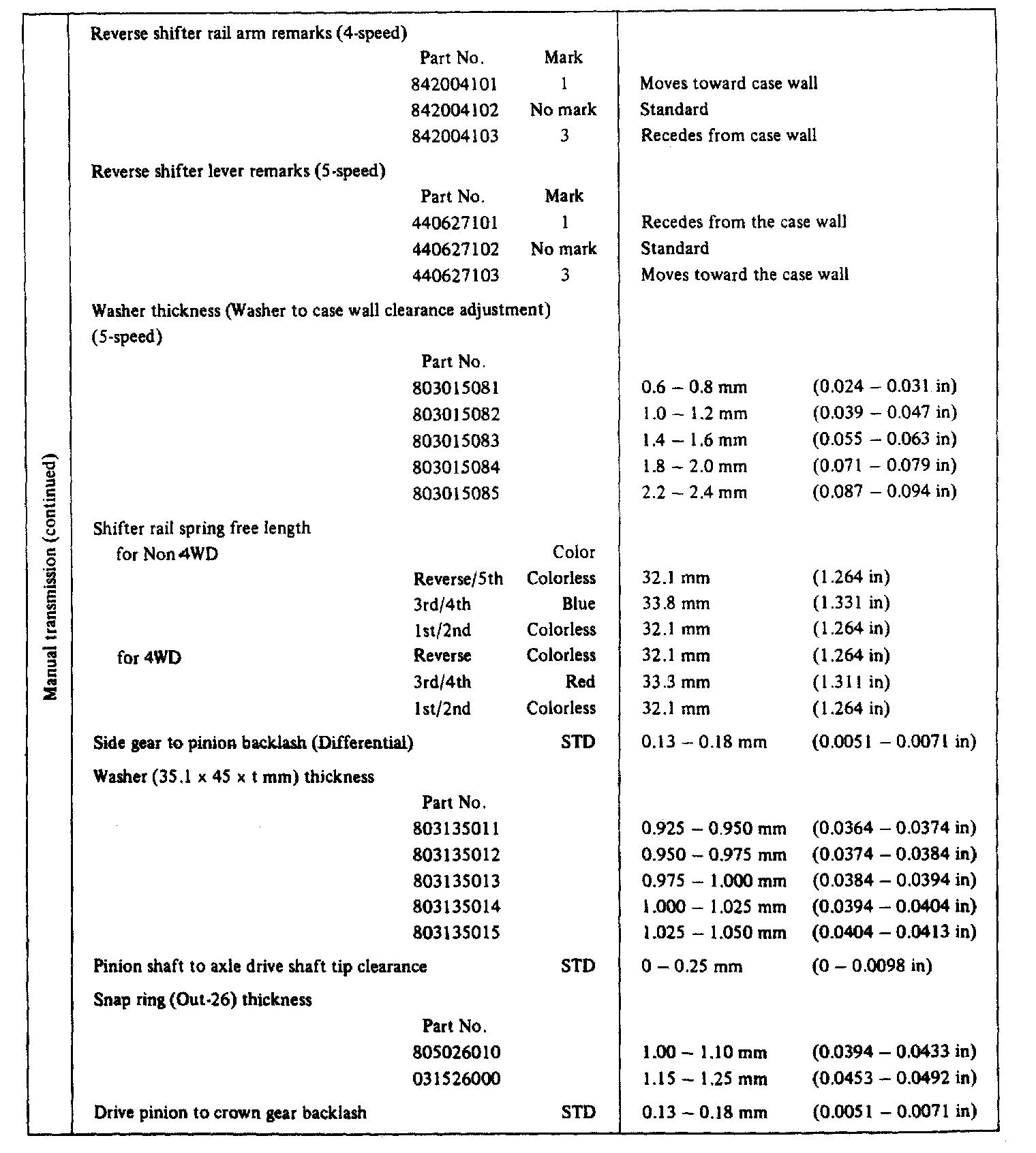

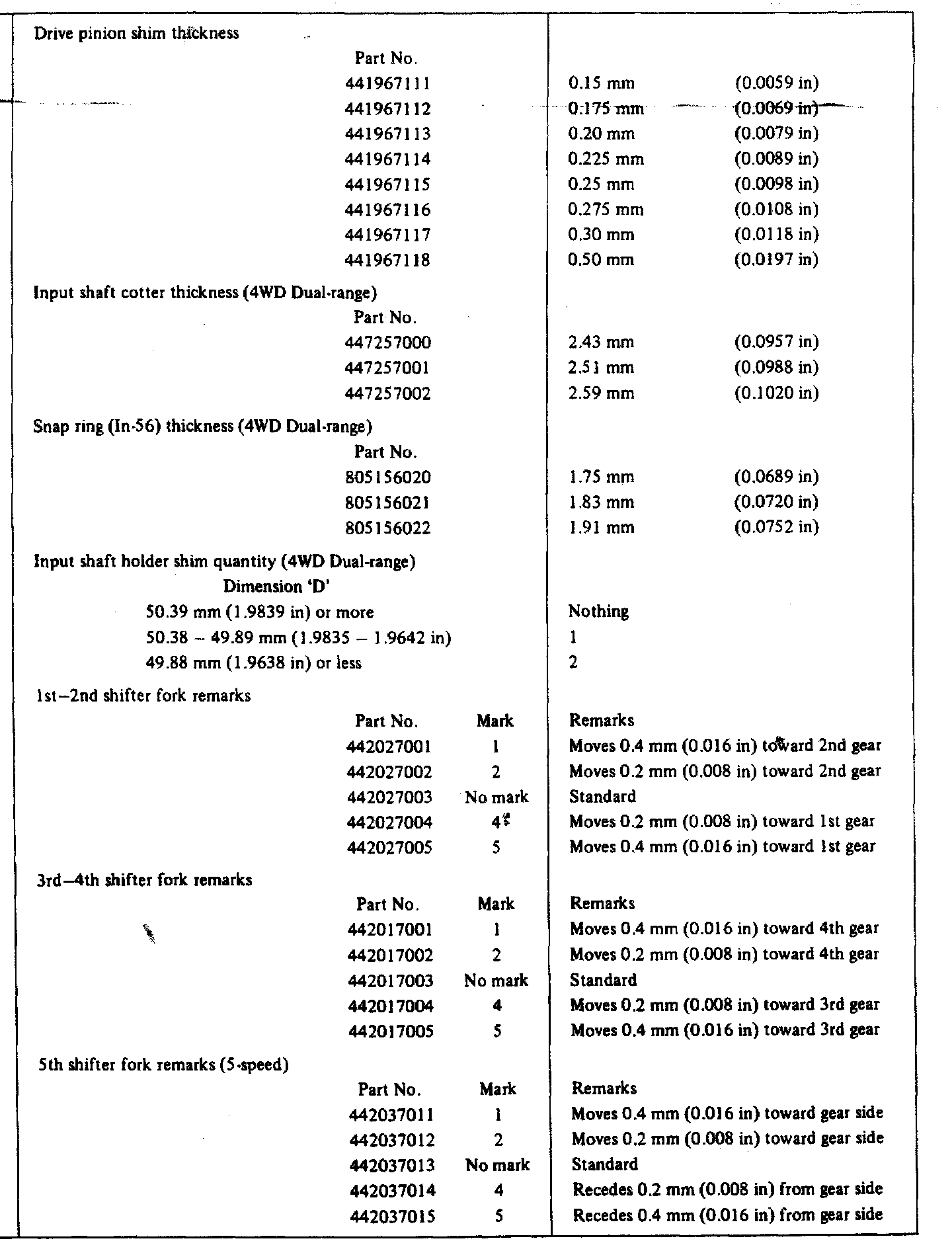

4/5 Spd M/T, Transmission Thickness & Remarks:





4/5 Spd M/T, Transmission Service Data:
