Suspension Control ( Automatic - Electronic ): Description and Operation

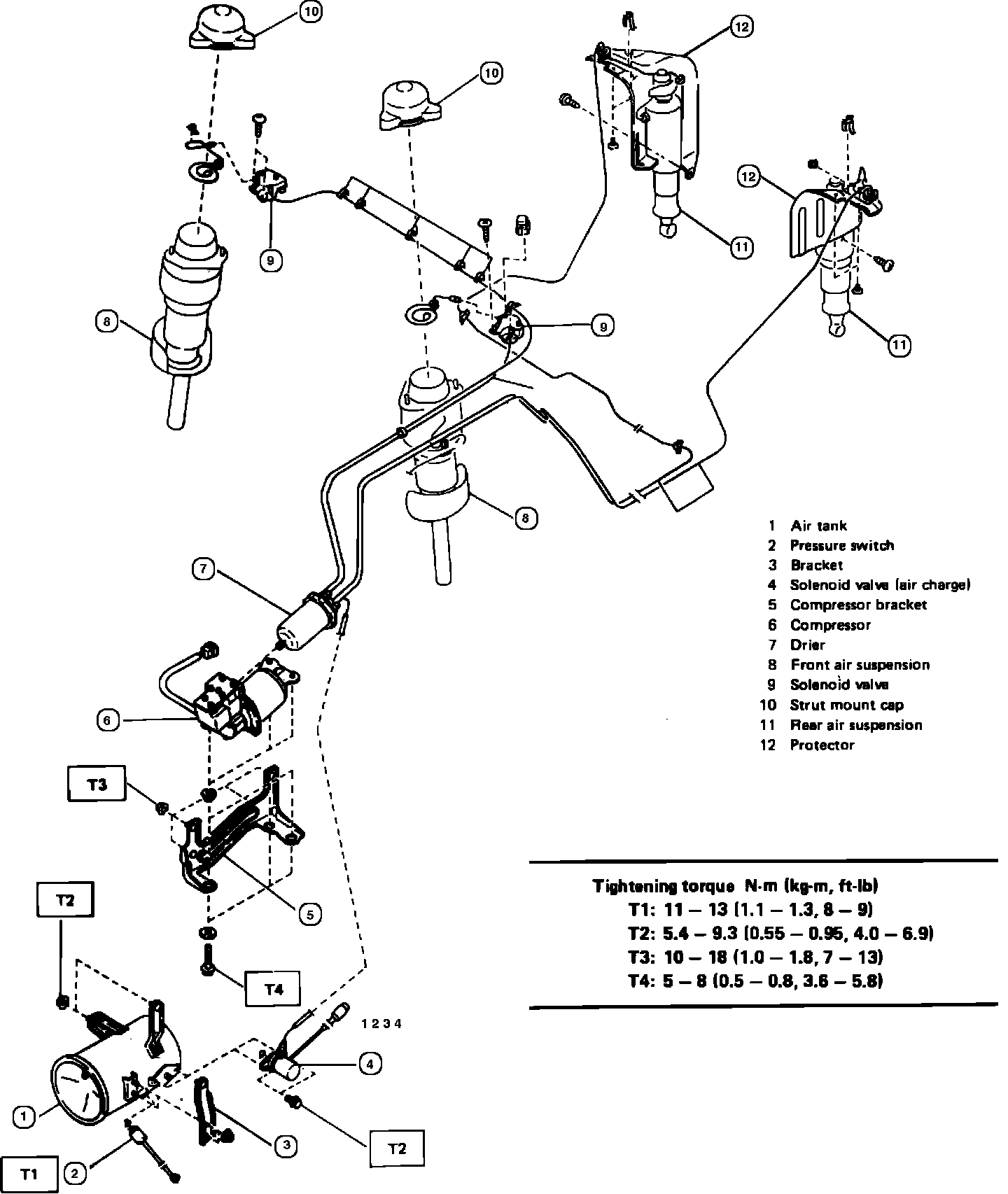

Fig. 1 Automatic level control system. Exc. XT models:

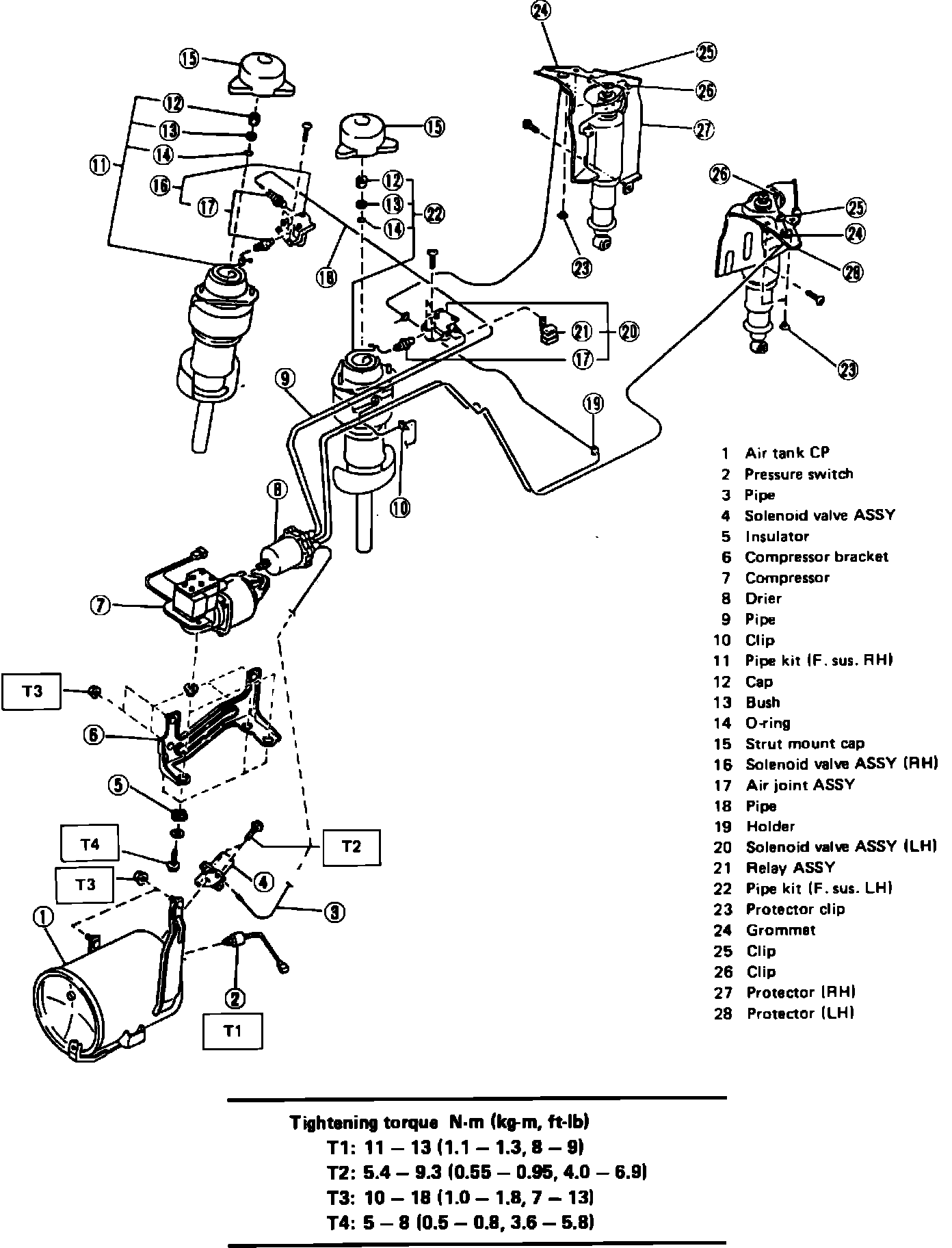

Fig. 2 Automatic level control system. XT models:

This system consists of various components to regulate the riding height of the vehicle, Figs. 1 and 2. When the height control switch is in the normal position, vehicle remains at its normal riding height at all times. When the height control switch is moved to the Hi position, the vehicle is raised to provide ground clearance. At speeds over approximately 55 mph, the vehicle automatically lowers to its normal riding height.
