Home >> Subaru >> 1989 >> Hatchback 2WD F4-1781cc 1.8L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Testing and Inspection >> Panasonic

Panasonic

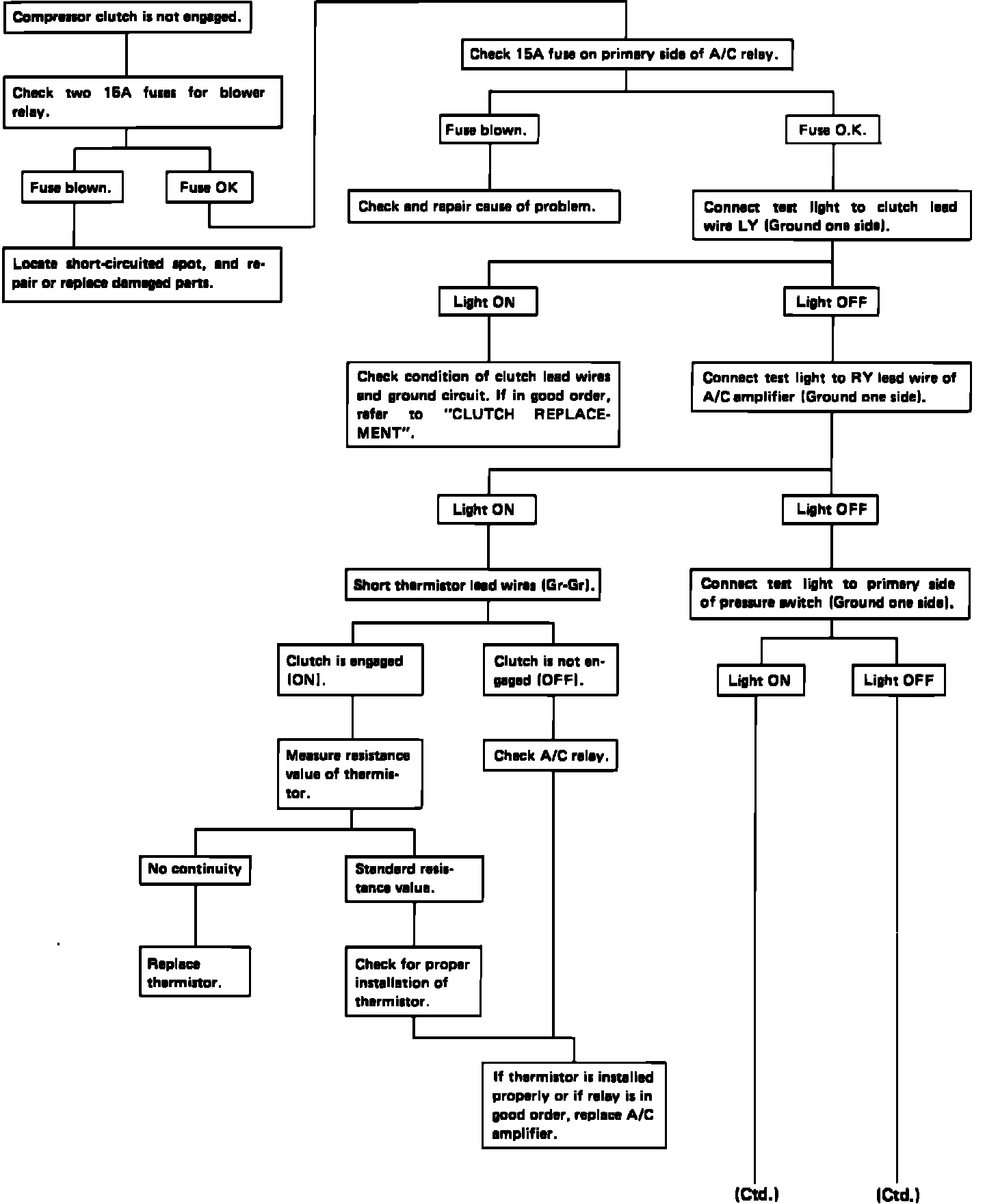

Compressor Clutch Testing (Panasonic, Part 1):



Compressor Clutch Testing (Panasonic, Part 2):
