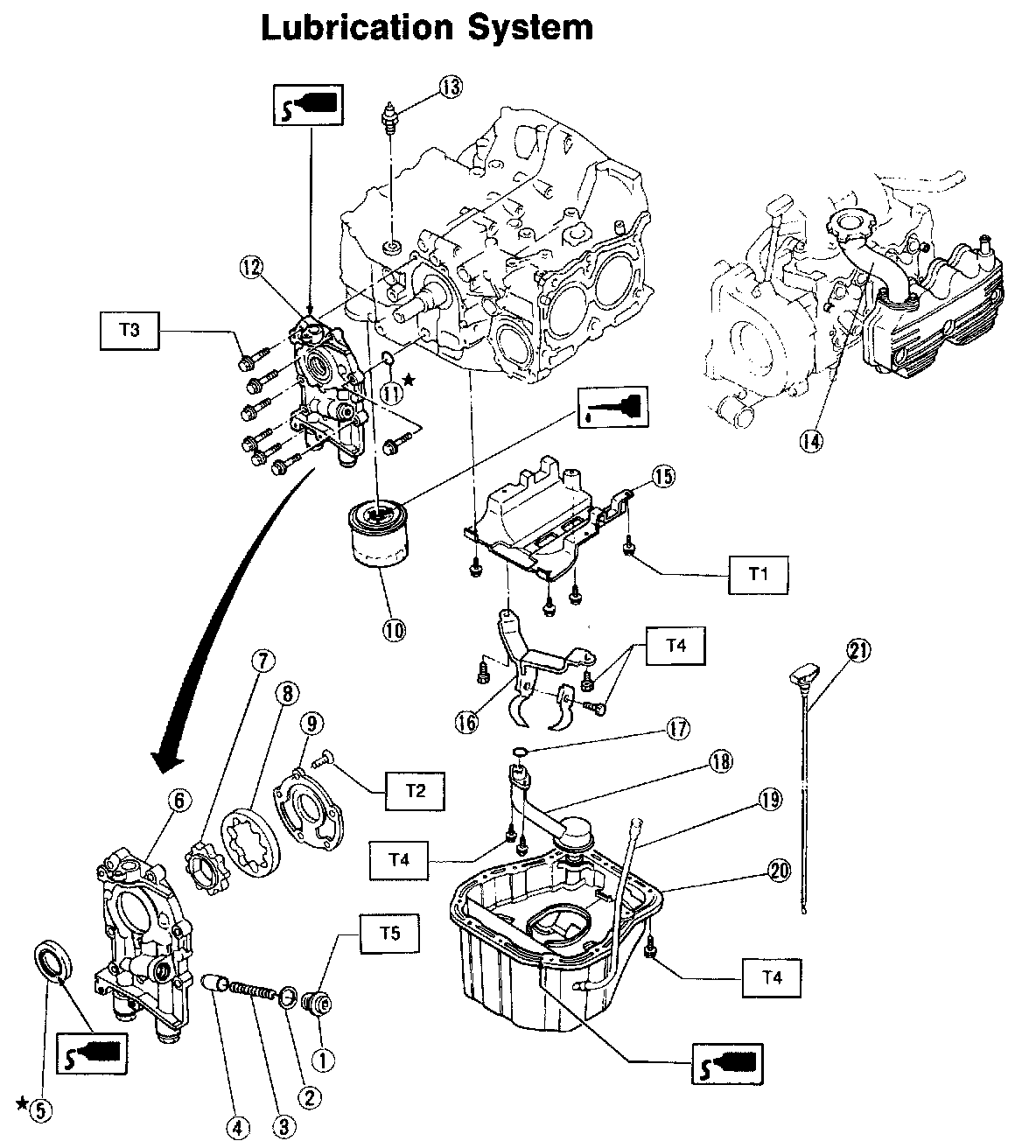

Oil Pump, Engine

1. Plug
2. Washer
3. Relief valve spring
4. Relief valve
5. Oil seal
6. Oil pump case
7. Inner rotor
8. Outer rotor
9. Oil pump cover
10. Oil filter
11. 0-ring
12. Oil pump ASSY
13. Oil pressure switch
14. Oil filler duct
15. Baffle plate
16. Oil strainer
19. Oil level gauge guide
20. Oil pan
21. Oil level gauge
Tightening torque: N.m (kg-m, ft-lb).
T1: 5 (0.5, 3.6).
T2: 5 - 6 (0.5 - 0.6, 3.6 - 4.3).
T3: 6.4 (0.65, 4.7).
T4: 9.8 (1.0, 7.0.)
T5: 40.7 - 47.6 (4.15- 4.85, 30.0 - 35.1).
