Control Assembly: Testing and Inspection

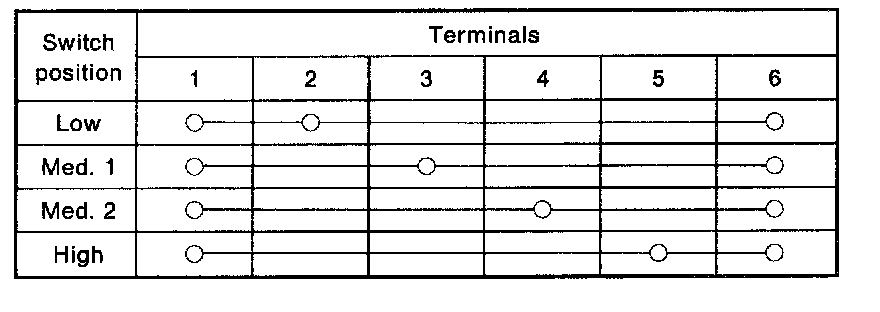

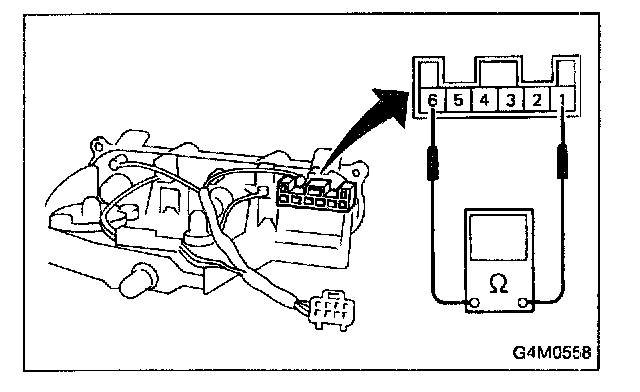

INSPECTION 1. FAN SWITCH Check continuity between terminals at each switch position.

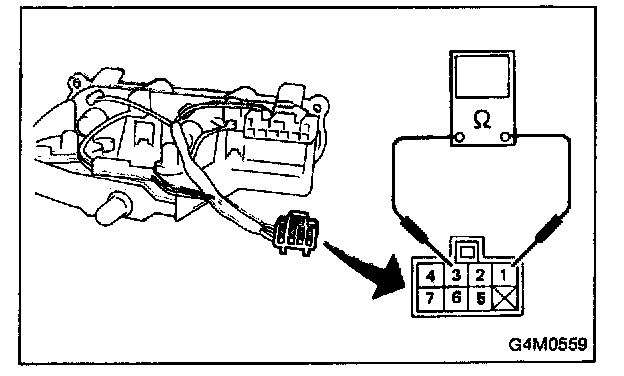

2. CONTROL UNIT 1.
Ignition switch is turned OFF.
2.
Disconnect connector from control unit.
3.

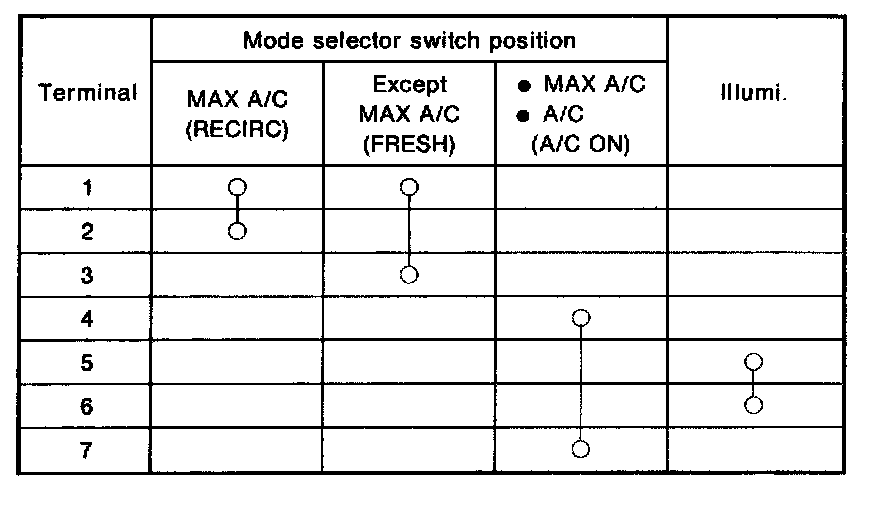

Check circuit continuity between each terminal.
