Steering Angle
STEERING ANGLE- Inspection
1) Place vehicles on a turning radius gauge.
2) While depressing brake pedal, turn steering wheel fully to the left and right. With steering wheel held at each fully turned position, measure both the inner and outer wheel steering angle.
Tolerance of steering angle:
Inner wheel 39° +1°
Outer wheel 33.5° +1°/-1.5°
- Adjustment

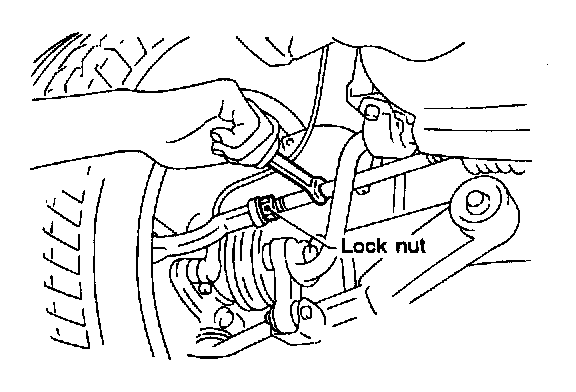

Turn tie-rod to adjust steering angle of both inner and outer wheels.
CAUTION:
- Check toe-in.
- Correct boot if it is twisted.
