Computers and Control Systems: Locations

ELECTRICAL COMPONENTS LOCATIONS

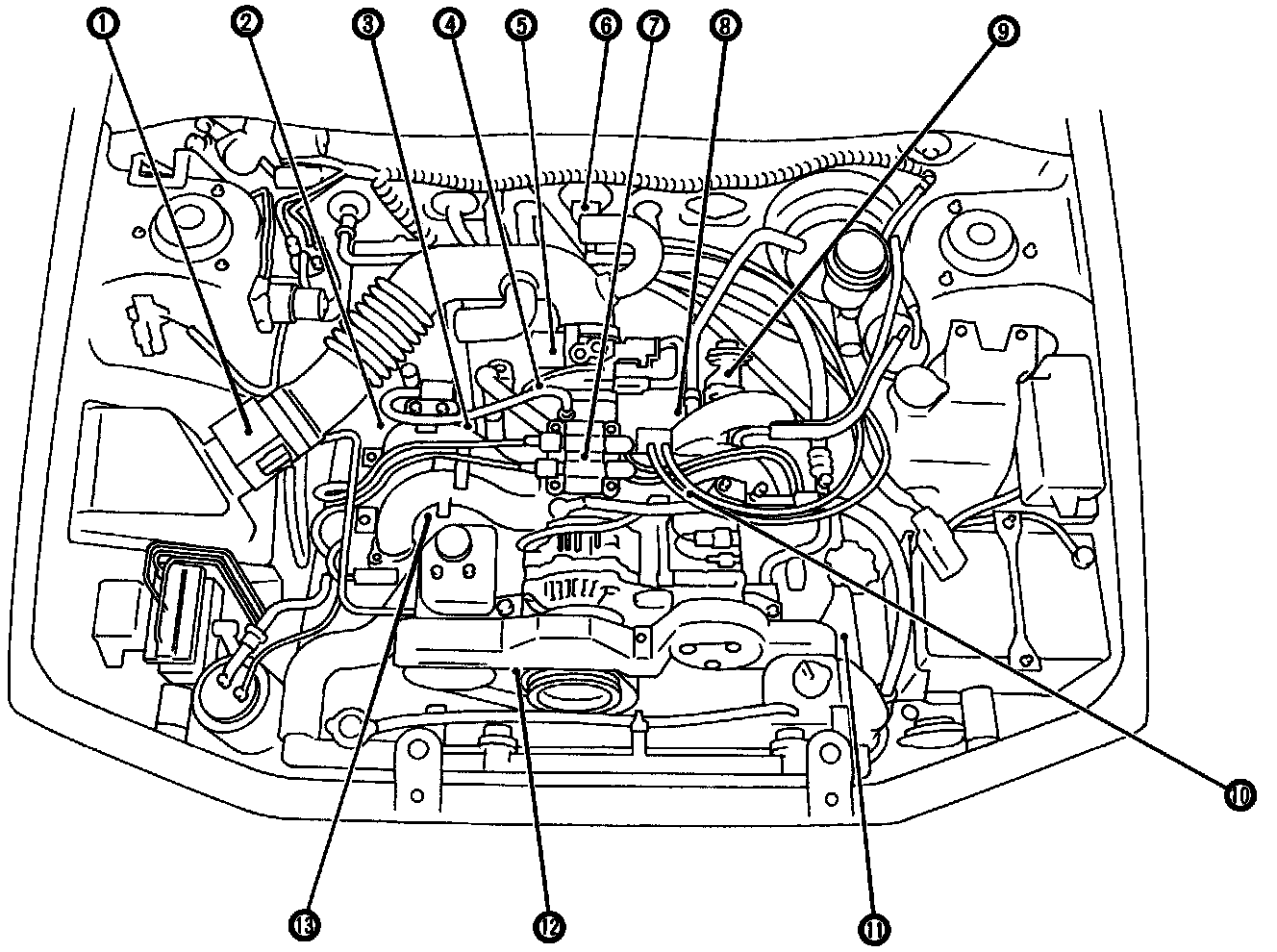

SENSOR AND SOLENOID VALVE

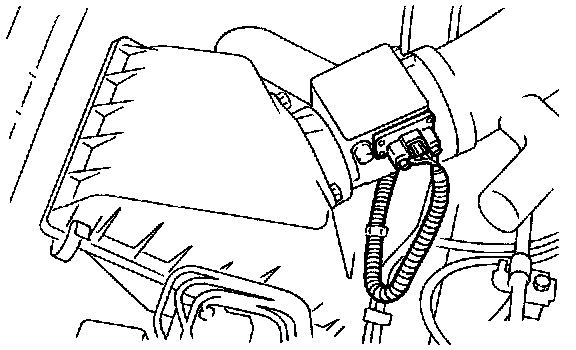

1. Mass Air Flow Sensor

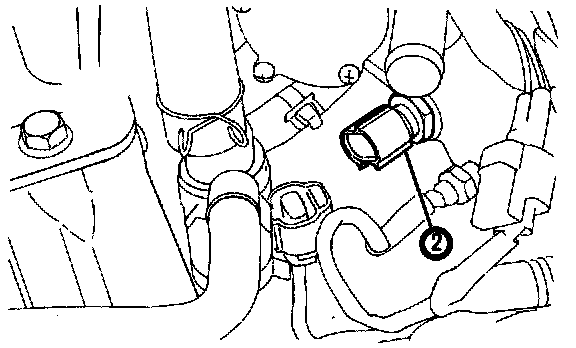

2. Engine Coolant Temperature Sensor

3. Air Suction Solenoid Valve (CA)

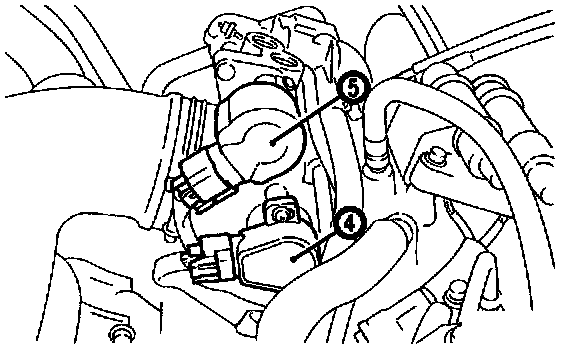

4. Throttle Position Sensor
5. Idle Air Control Solenoid valve

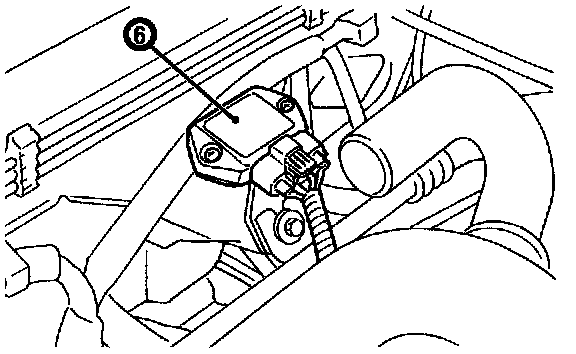

6. Ignitor

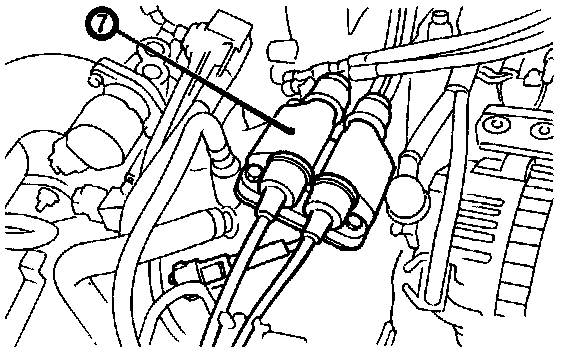

7. Ignition Coil






8. Recirculation Gas Temperature Sensor (CA)

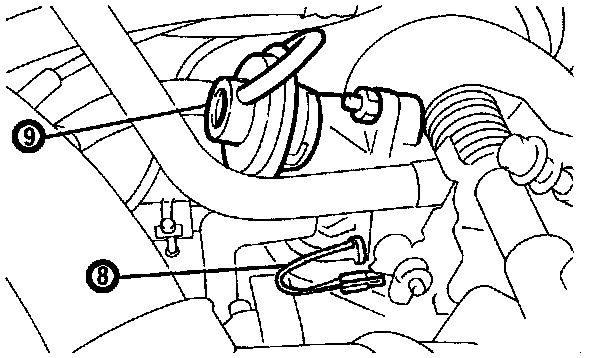

9. Exhaust Gas Recirculation (EGR) Valve






10. EGR Control Solenoid Valve

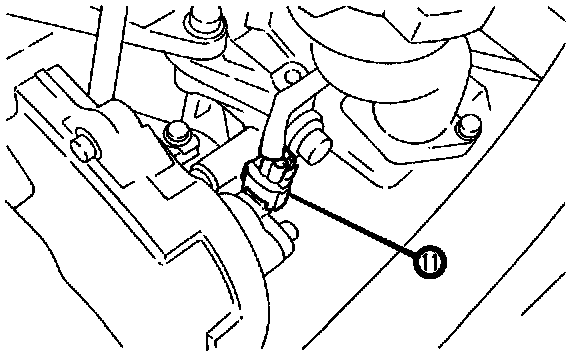

11. Camshaft Position Sensor

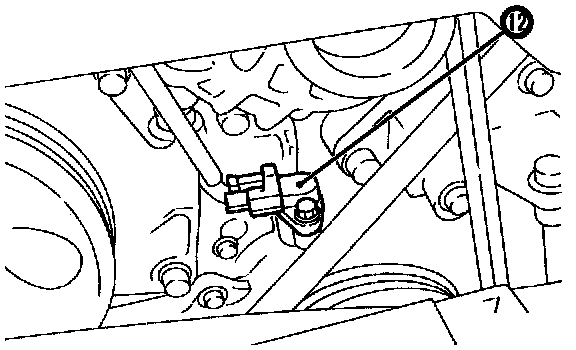

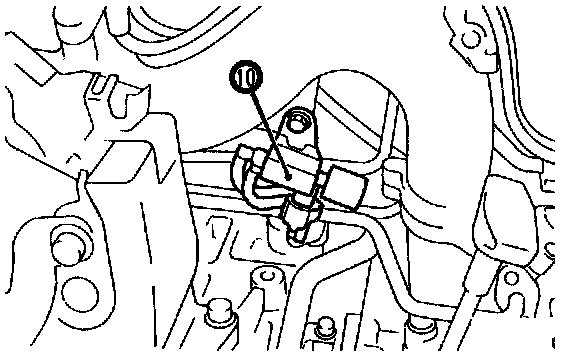

12. Crankshaft Position Sensor

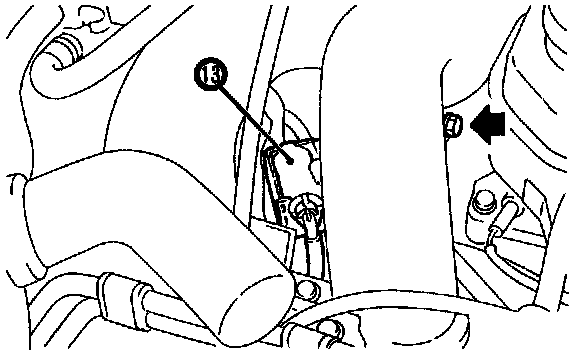

13. Purge Control Solenoid Valve

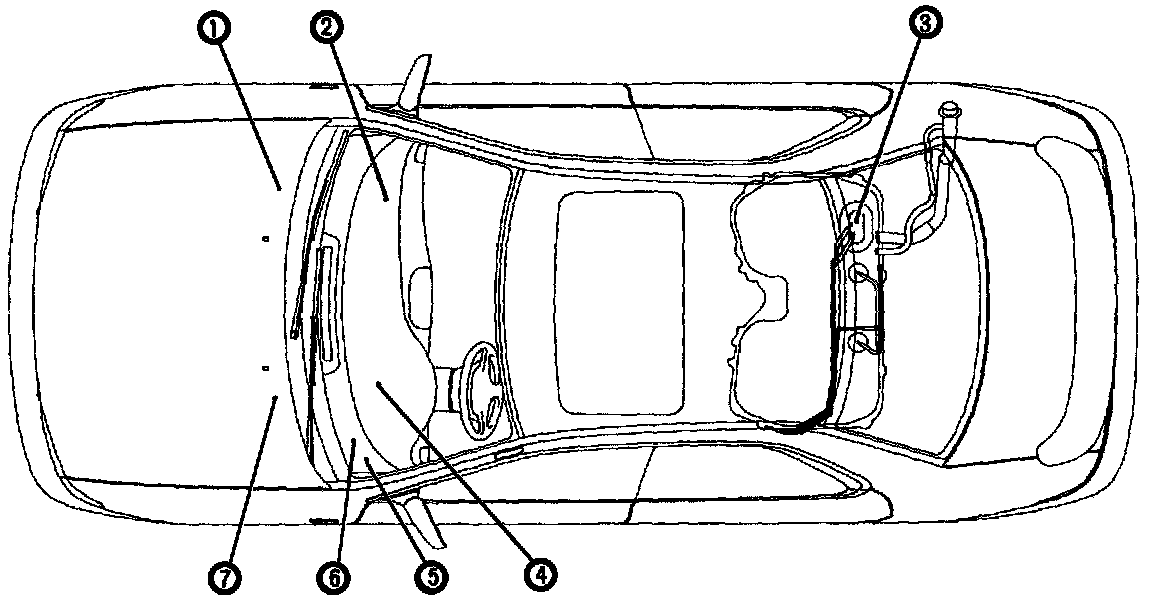

MODULE AND RELAY

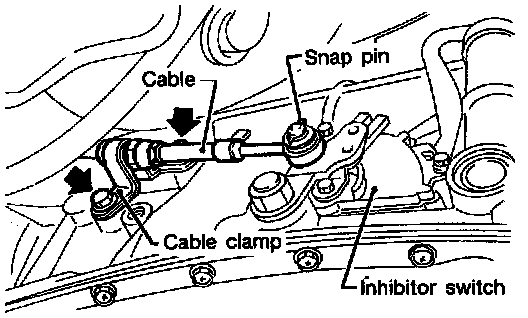

1. Inhibitor Switch

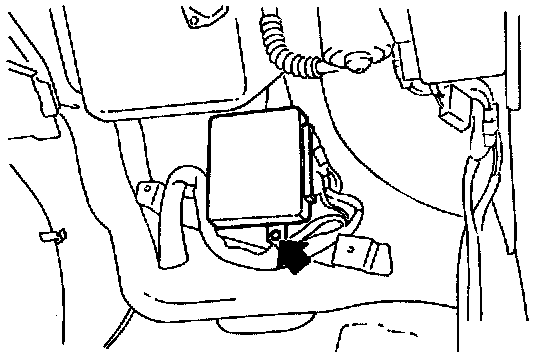

2. Engine Control Module (ECM)

3. Fuel Pump

4. Transmission Control Module (TCM)

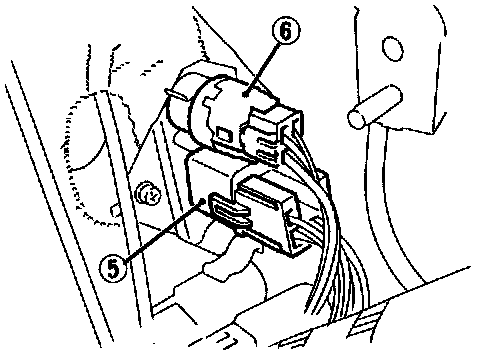

5. Main Relay
6. Fuel Pump Relay

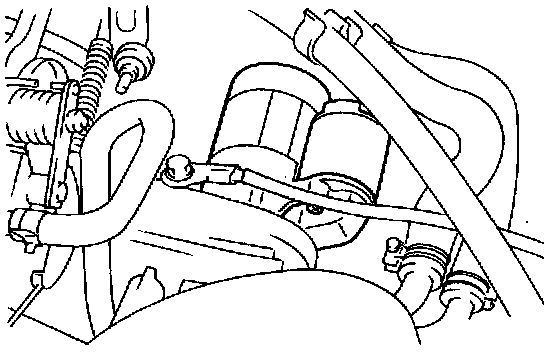

7. Starter

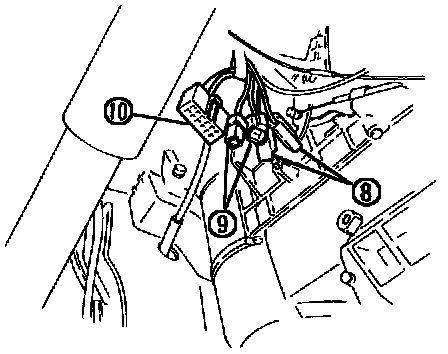

8. Read Memory Connector
9. Test Mode Connector
10. Data Link Connector
