Rear Door Exterior Handle: Service and Repair

Outer Handle

REMOVAL AND INSTALLATION




1. Remove trim panel.
2. Remove sealing cover.
3. Detach door latch rod from outer handle and key lock.

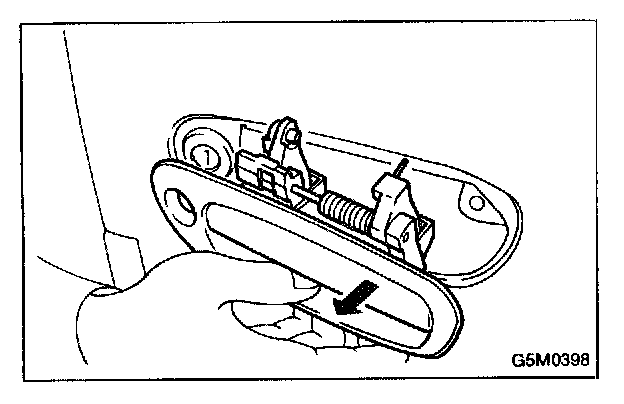

4. Loosen nut securing outer handle and then remove outer handle from outside.

CAUTION: Be careful not to damage door.

Installation is in the reverse order of removal.

Tightening torque: 5.4 - 9.3 N.m (0.55 - 0.95 kg.m, 4.0 - 6.9 ft.lb)
