Clutch Pedal Assembly: Adjustments

1. Remove clutch fork return spring.

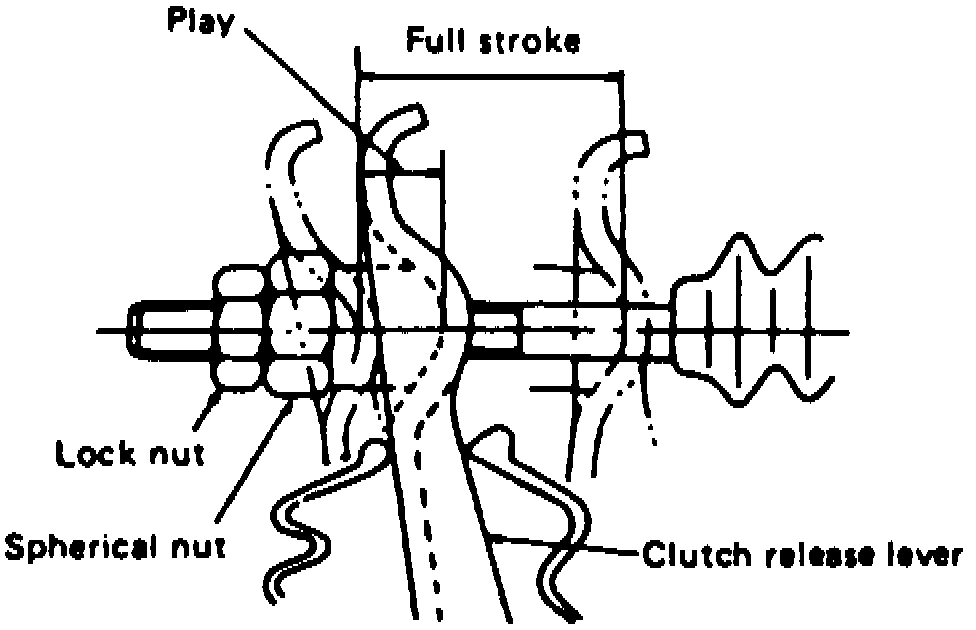

Fig. 1 Clutch Pedal Adjustments:

2. Turn adjusting nut at fork end, Fig. 1, to obtain an endplay of .12-.16 inch. When performing adjustment, use care not to twist clutch cable.

3. Check to ensure clutch release lever full stroke measures .94-1.02 inch.
