Fuse Block: Description and Operation

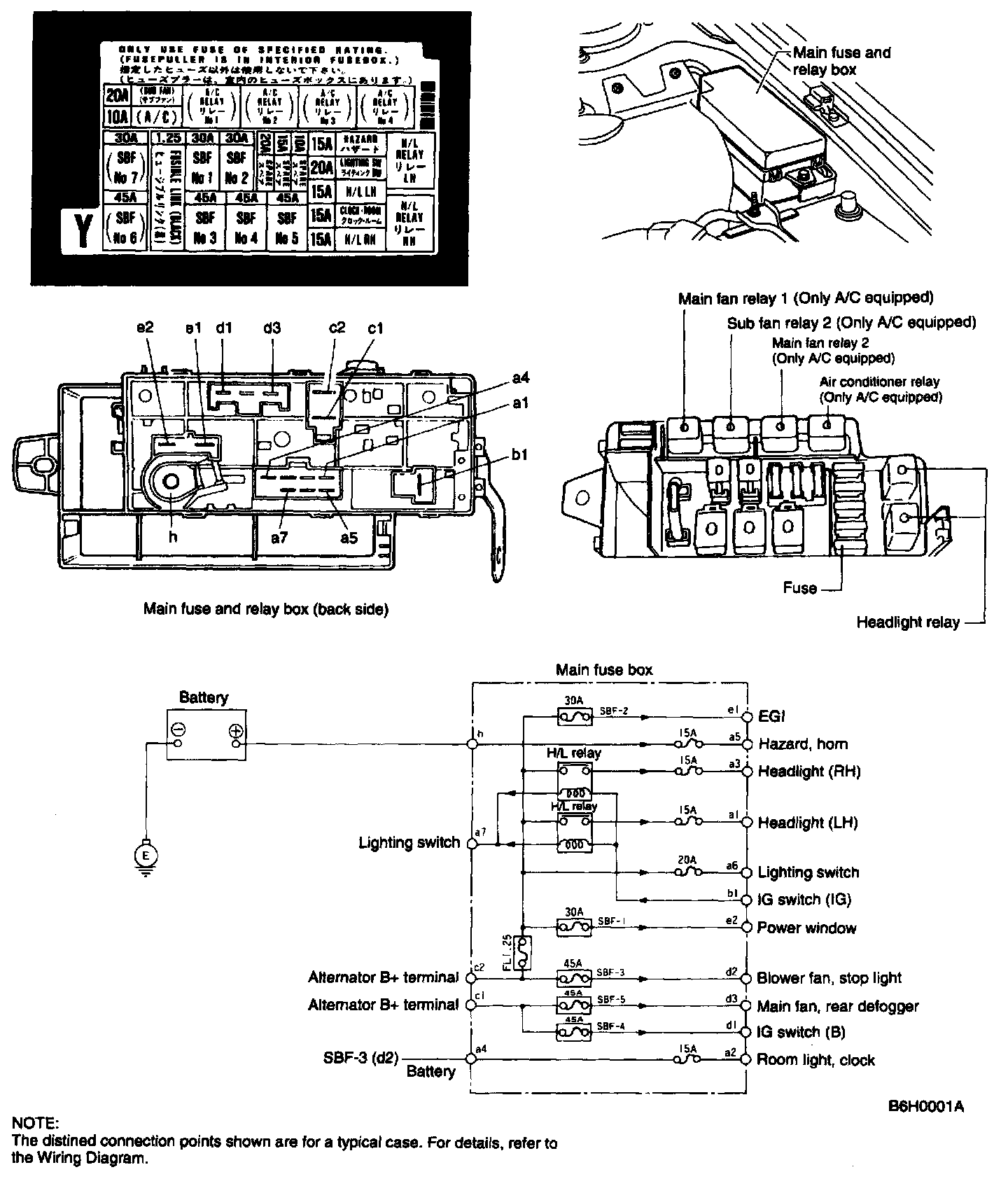

MAIN FUSE AND RELAY BOXThe main fuse and relay box is installed at the rear of the battery on left side of the engine compartment.
The fuses relays and
fusible links are installed in the box as described.

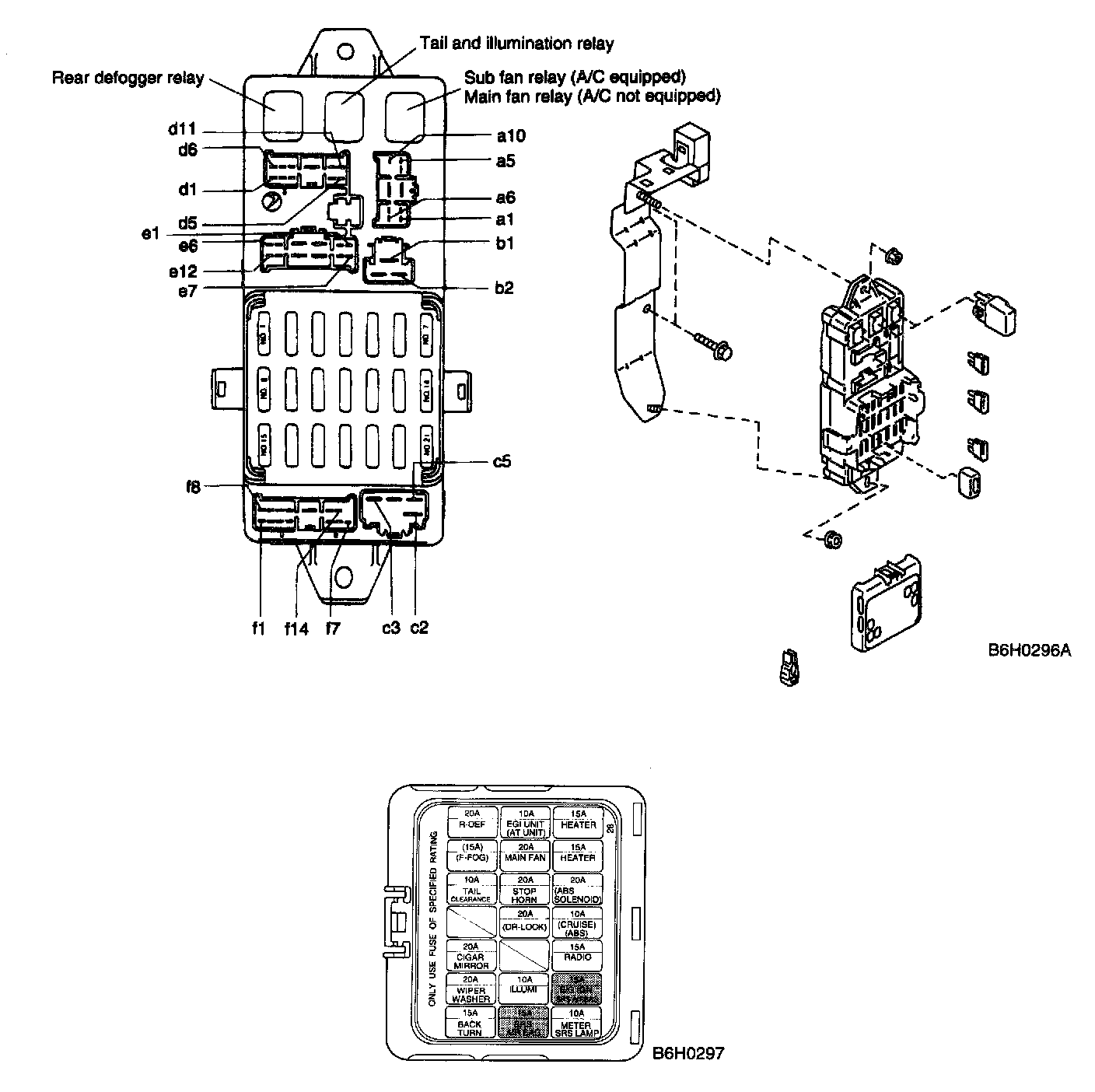

JOINT BOXThe joint box is installed under the instrument panel on driver's side.
The fuses are installed in the joint box as described.
