Wiring Schematic

Wiring Schematic:

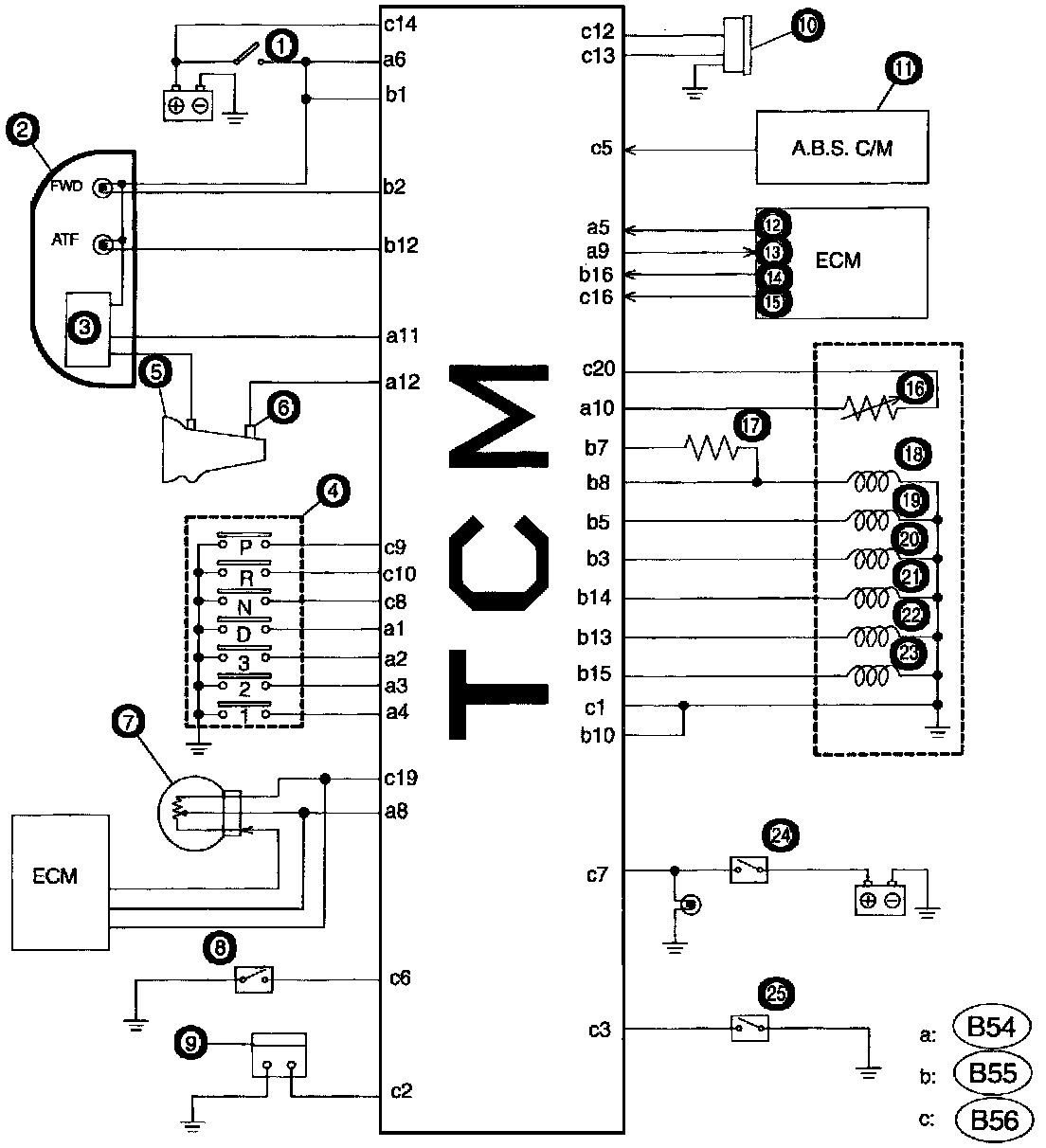

Schematic
1. Ignition Switch
2. Combination Meter
3. Speedometer Circuit
4. Inhibitor Switch
5. Vehicle Speed Sensor 2
6. Vehicle Speed Sensor 1
7. Throttle Position Sensor
8. Diagnosis Switch
9. FWD Switch (AWD)
10. Data Link Connector
11. ABS Control Module
12. Engine Speed Signal
13. Torque Control Signal
14. Torque Control Cut Signal
15. Mass Air Flow Signal
16. ATF Temperature Sensor
17. Dropping Resistor
18. Duty Solenoid A
19. Duty Solenoid B
20. Duty Solenoid C (AWD)
21. Shift Solenoid 1
22. Shift Solenoid 2
23. Shift Solenoid 3
24. Brake Switch
25. Cruise Set Switch
