Transmission Control Systems: Locations

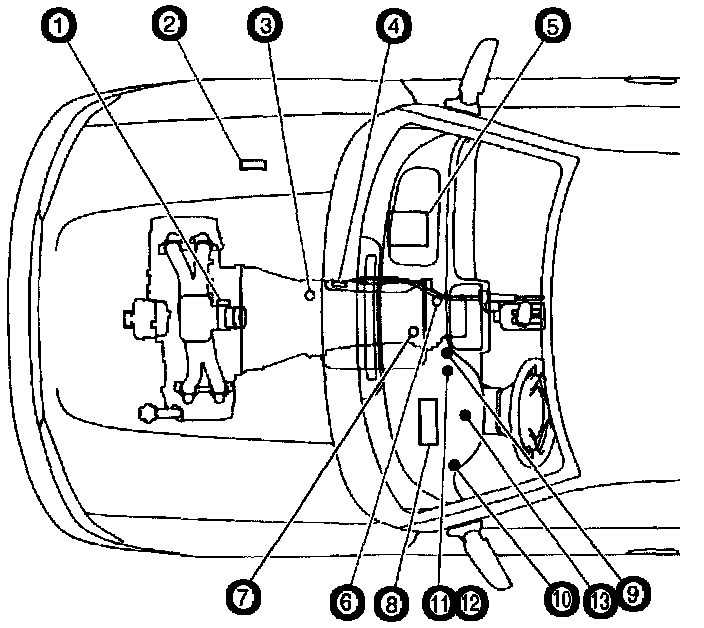

ELECTRICAL COMPONENTS LOCATIONSensors and Control Module

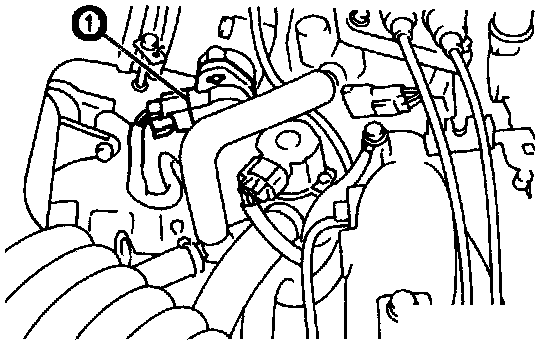

1. Throttle Position Sensor

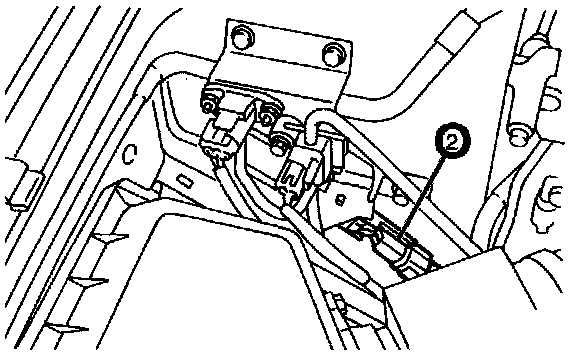

2. Dropping Resistor

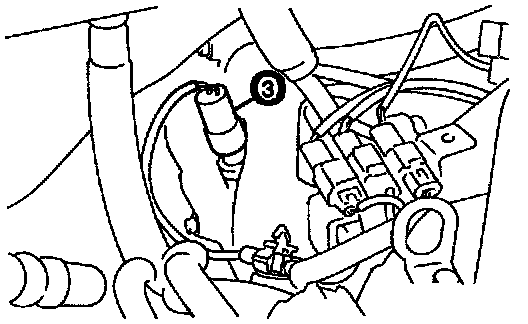

3. Vehicle Speed Sensor 2
4. Inhibitor Switch

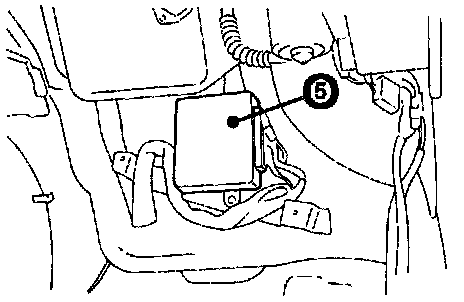

5. Engine Control Module (ECM)

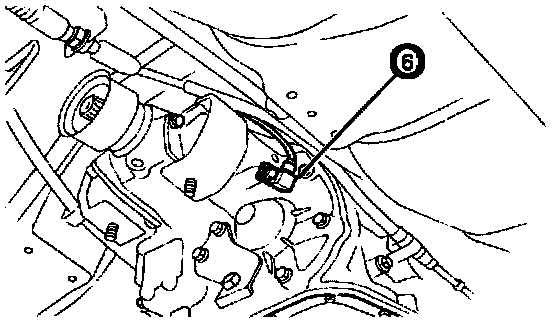

6. Vehicle Speed Sensor 1 (AWD)

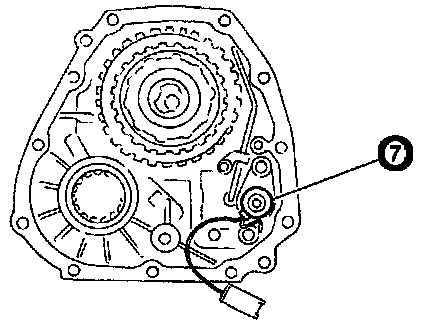

7. Vehicle Speed Sensor 1 (FWD)
8. Transmission Control Module (TCM)

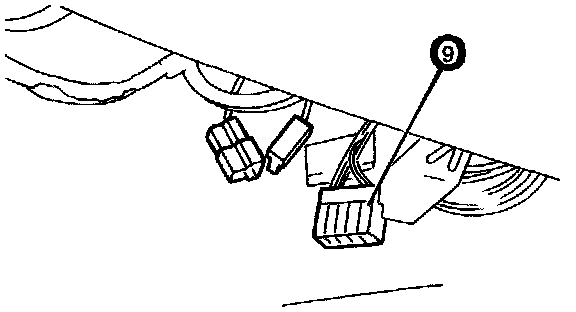

9. Data Link Connector (for Subaru Select Monitor only)

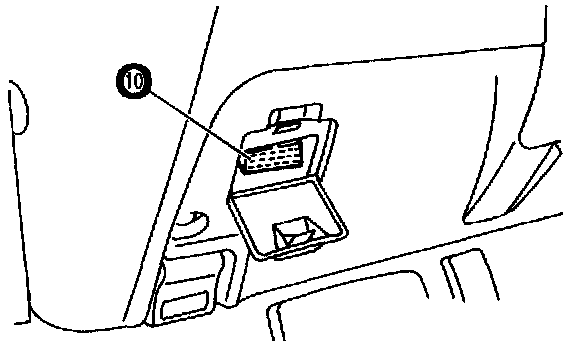

10. Data Link Connector (for Subaru Select Monitor and OBD-II General Scan Tool)
11. Diagnosis Connector
12. Diagnosis Terminal
13. A/T "OIL TEMP" Indicator Light (A/T Diagnostic Indicator Light)

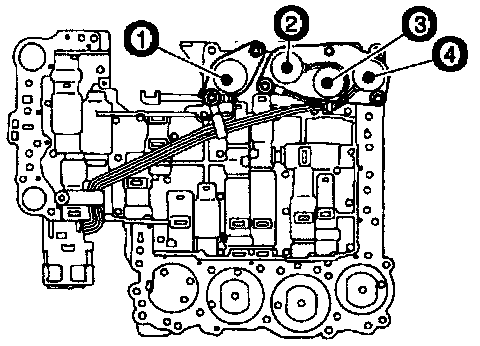

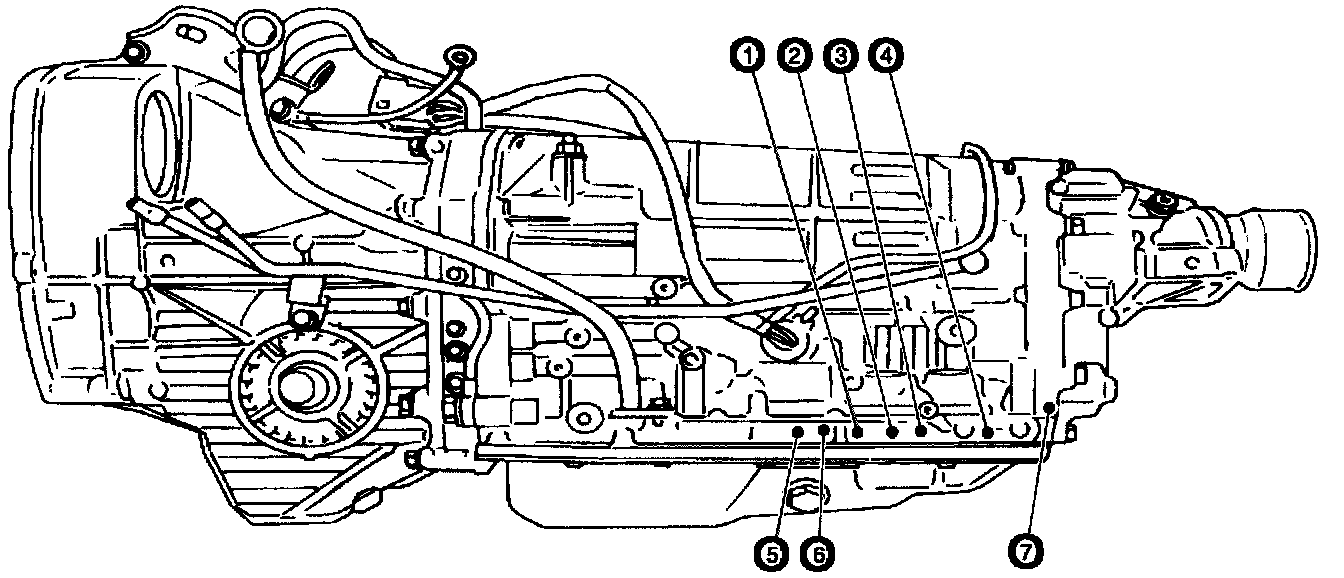

Solenoids
1. Duty Solenoid A
2. Shift Solenoid 2
3. Shift Solenoid 1
4. Shift Solenoid 3

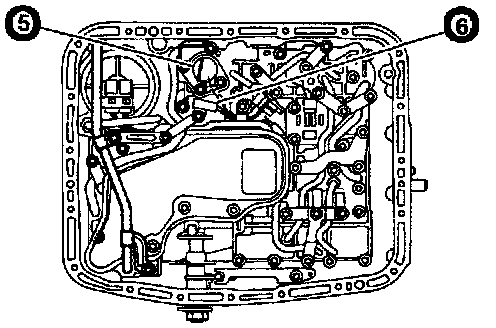

5. Duty Solenoid B
6. Automatic Transmission Fluid (ATF) Temperature Sensor

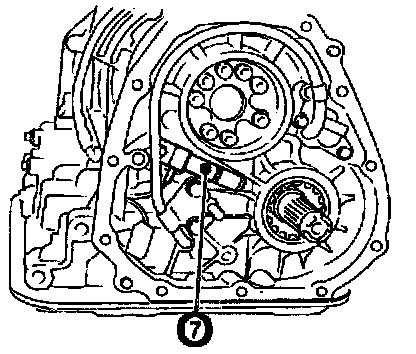

7. Duty Solenoid C (AWD)
