Trouble Chart B

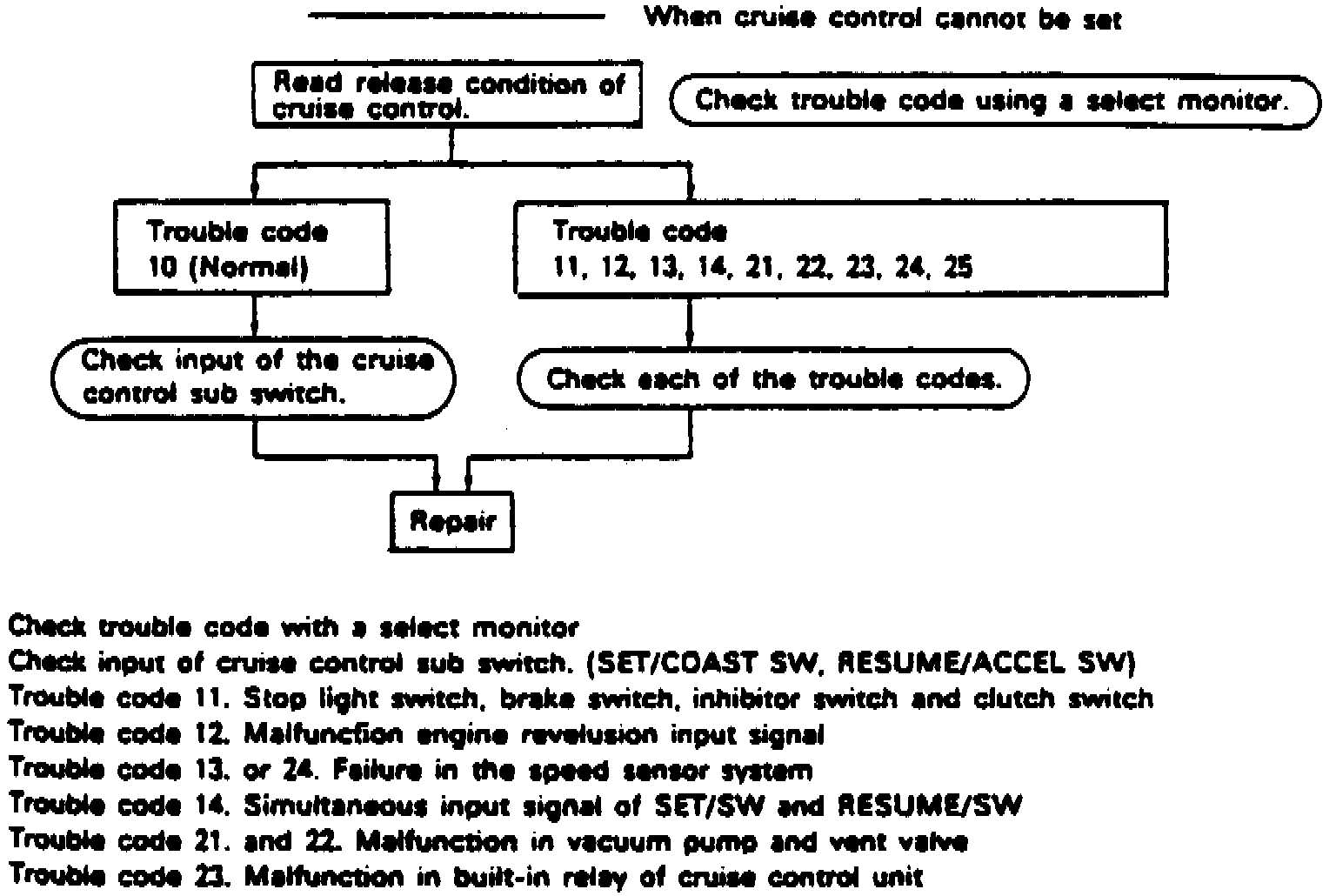

Fig. 3 Speed Control Troubleshooting Chart B:




Refer to Fig. 3, for troubleshooting procedures.
