Power Cylinder

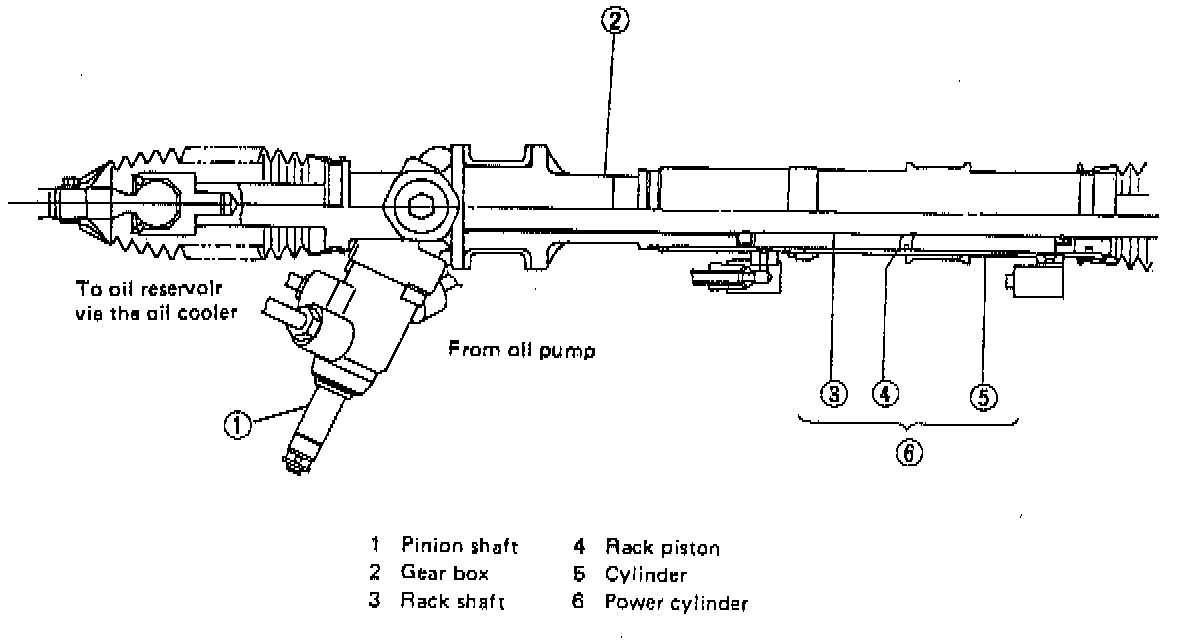

The gearbox is integrated with a built-in control valve and power cylinder. The rack shaft is used as a power cylinder piston and a rotary control valve is located in such a manner as to enclose the pinion shaft. The control valve and power cylinder are connected to each other by two pipes through which hydraulic oil flows.
