ABS Warning Light

ABS WARNING LIGHT

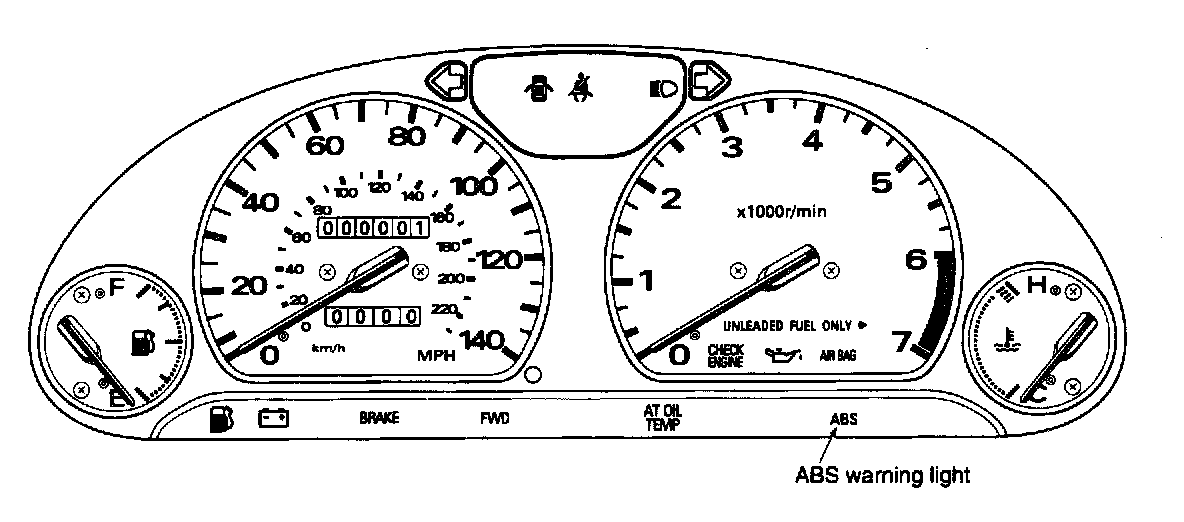

When a signal system or the ABS control module becomes inoperative, the warning light in the combination meter comes on to indicate that the system or control module is malfunctioning. At the same time, current flowing through the hydraulic control unit is interrupted so that the brake system functions as a conventional brake system. The circuit through which the warning light comes on utilizes a dual system design.
If the warning light comes on upon detection of a system malfunction, call a trouble code and identify it using the warning light.
