Assembly

ASSEMBLY
1) After bleeding air from hydraulic lash adjuster, position hydraulic lash adjuster in valve rocker arm while dipping in engine oil.

CAUTION:
- Fill rocker arm oil reservoir chamber with engine oil.
- Install a new hydraulic lash adjuster 0-ring, being careful not to scratch it.
- Do not attempt to rotate hydraulic lash adjuster during installation.

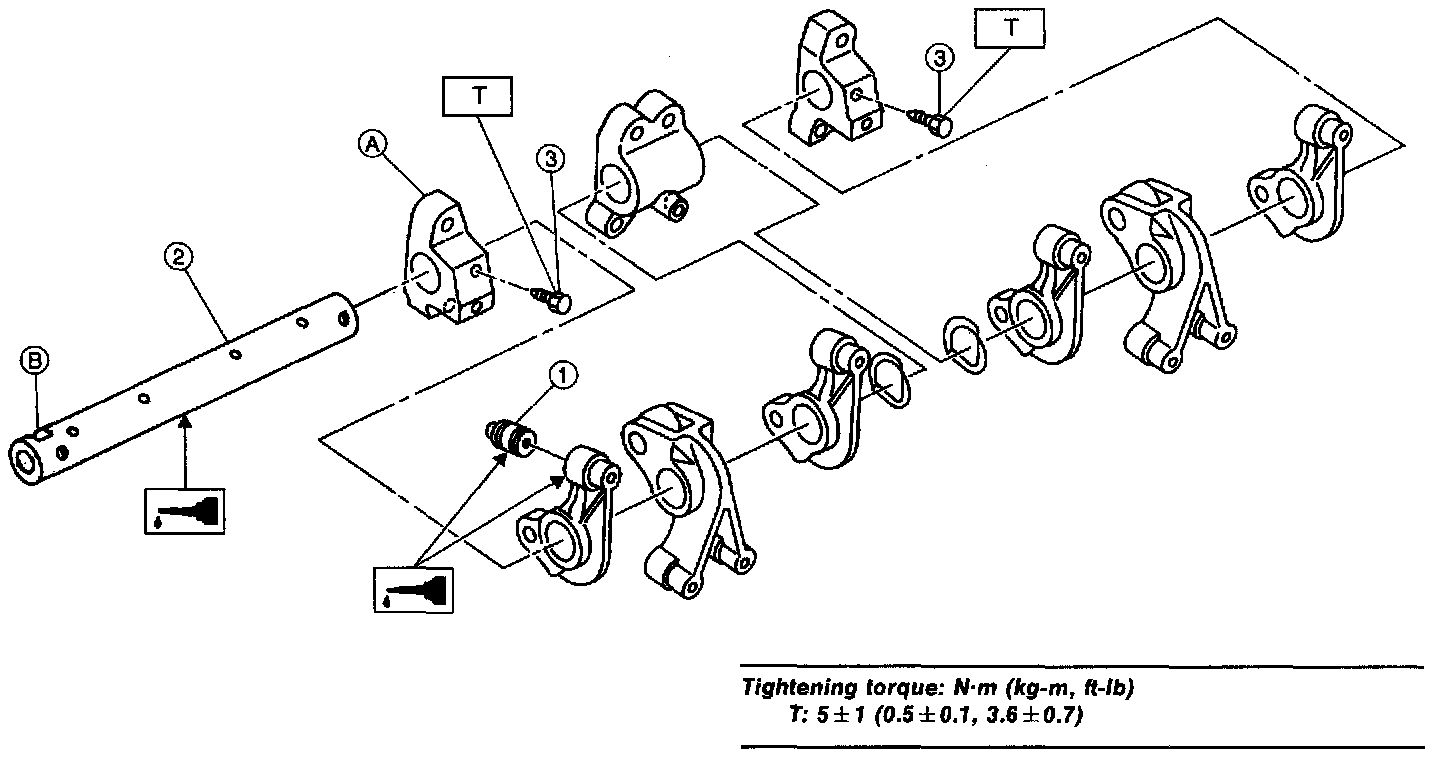

2) Arrange valve rocker arms, springs and shaft supports in assembly order and insert valve rocker shaft. Ensure that cutout portion of rocker shaft faces oil holes (A) in shaft supports.

CAUTION: Valve rocker arms, rocker shaft and shaft supports have identification marks. Ensure parts with same markings are properly assembled.

3) Install valve rocker shaft securing bolts while aligning shaft "lock" holes (B) with bolts.
