Blower Motor: Service and Repair

Blower Motor Assembly

REMOVAL AND INSTALLATION




1. Disconnect GND cable from battery.

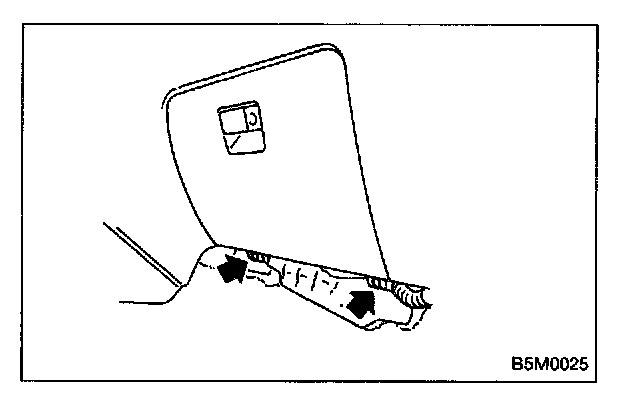

2. Remove glove box and pocket back panel.
3. Disconnect blower motor harness connector.




4. Disconnect aspirator pipe (1).
5. Remove blower motor mounting screw.
6. Remove blower motor assembly.
7. Installation is in the reverse order of removal.
