Evaporative Emissions System: Service and Repair

REMOVAL AND INSTALLATION

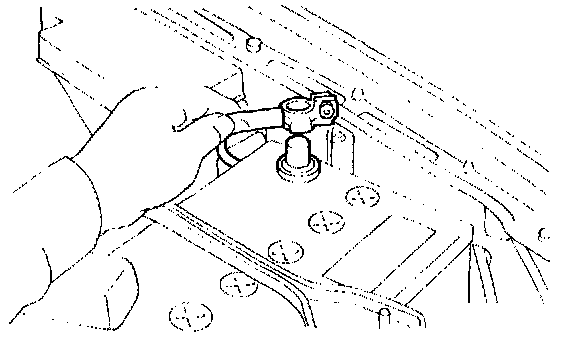

1) Disconnect battery ground cable.
2) Lift-up the vehicle.

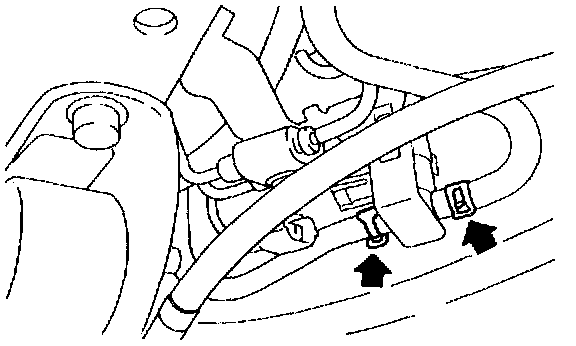

3) Disconnect evaporation hoses from pressure control valve.
4) Disconnect connector from pressure control valve.

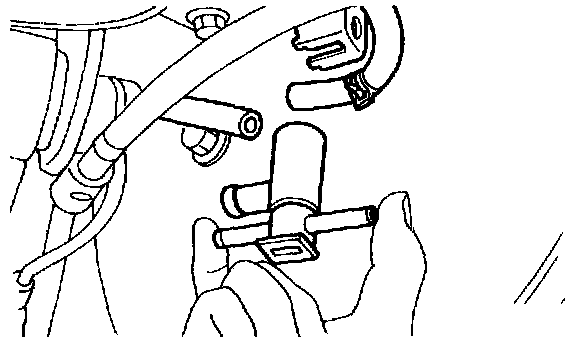

5) Remove pressure control valve from bracket.
6) Installation is in the reverse order of removal.
